South POSEIDON SU30 USV Auto Pilot Boat High Precision Unmanned Surface Vessels

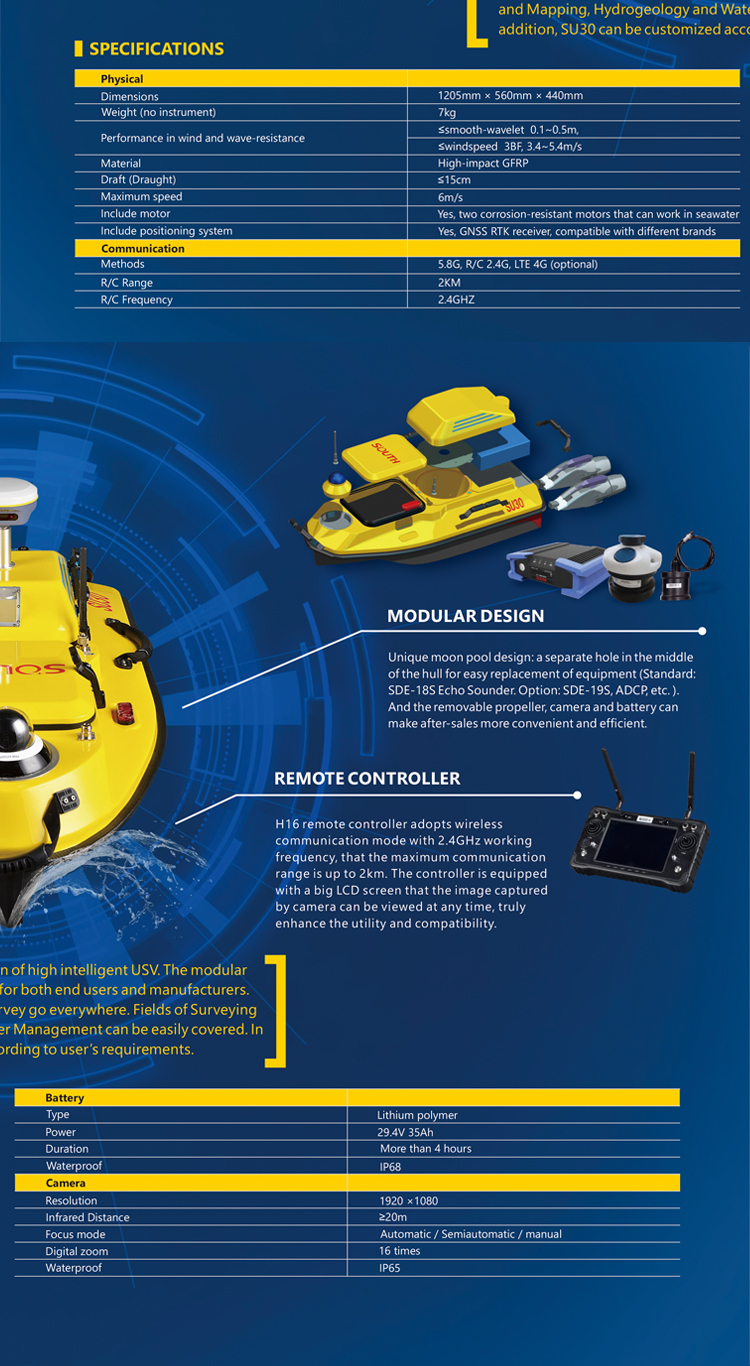

Here is a detailed overview of the specifications provided:

Dimensions: 1205mm (length) × 560mm (width) × 440mm (height)

Weight (without instrument): 7kg

Wind and Wave-Resistance: Can handle smooth wavelets ranging from 0.1m to 0.5m and windspeeds up to 3BF (Beaufort scale), which corresponds to a windspeed of 3.4m/s to 5.4m/s.

High-Impact GFRP: Made of glass fiber reinforced plastic (GFRP) for durability and impact resistance.

Operational Characteristics:

Draught: Maximum depth it can be submerged is ≤15cm.

Maximum Speed: Capable of reaching a maximum speed of 6m/s.

Motors: Includes two corrosion-resistant motors that are capable of operating in seawater.

Positioning System: Equipped with a GNSS RTK receiver that is compatible with various brands.

Methods: Supports Network bridge 5.8G, R/C 2.4G, and optionally LTE 4G for connectivity.

R/C Range: Remote control range of 2 kilometers.

R/C Frequency: Operates on a 2.4GHz frequency.

Type: Lithium polymer battery.

Power: 29.4V, 35Ah capacity.

Duration: Provides power for more than 4 hours of operation.

IP68: Highly water-resistant, suitable for submerged conditions.

Resolution: 1920 × 1080 pixels for high-definition imaging.

Infrared Distance: Capable of detecting objects at a distance of ≥20 meters using infrared technology.

Focus Mode: Offers automatic, semiautomatic, and manual focus options.

Digital Zoom: Features a 16x digital zoom for detailed viewing.

Waterproof Rating: IP65, ensuring protection against water ingress.

These specifications highlight the device's capabilities in terms of size, weight, environmental resilience, motor performance, positioning accuracy, communication options, battery life, and imaging capabilities. It is evident that this device is designed for harsh environments and offers advanced features suitable for various applications such as marine exploration, surveying, and remote monitoring.
