Xgrids aura L2 Pro handheld scanner: leading SLAM equipment into the "0 processing era"

Recently, the flagship handheld scanning and modeling device-Lingguang L2 Pro, launched by Xgrids under its domain innovation technology, was officially launched. With its deeply integrated multi-source perception module and AI intelligent algorithm, it has made a major breakthrough in the field of real-time data processing and injected new vitality into the development of three-dimensional intelligent technology.
Excellent real-time data processing capability, opening the "0 processing era"

Lingguang L2 Pro deeply integrates modules such as lidar, vision and IMU, combined with AI intelligent algorithms, to achieve a huge leap in real-time data quality. Its exclusive TM point cloud algorithm makes the point cloud denser and clearer in detail, the thickness of the point cloud reaches 5mm, and the drawing line is more accurate. The point cloud data brought by this device is comparable to the post-processing quality of the previous generation models, leading SLAM equipment into the "0 processing era". Real-time point cloud with coordinate information, the absolute accuracy of 3cm, without complex post-processing can be directly used for modeling, greatly improving the work efficiency.
Powerful features to meet the needs of multiple scenarios

Ember L2 Pro has many special functions, and the visual auxiliary positioning function can improve the accuracy and stability of scanning. The real-time true color point cloud function can generate color point cloud in real time without external equipment. The quality is comparable to the post-processing effect. The point cloud filtering and smoothing are finer, and the post-processed point cloud sorting is more regular, presenting good light and shadow effects. Real-time RTK fusion function combined with high-precision RTK module, login or thousand account, the point cloud data is straight out with absolute coordinates, and the absolute accuracy can reach 3cm, which meets the requirements of high precision scenes such as topographic mapping.

In the indoor point cloud vertical scanning test, starting from the office door, walk down six floors vertically, scan the bottom corridor, then return to the office door on the sixth floor, and finally scan the inside of the office to form a closed loop. The point cloud of the real-time preview is coherent, and there is no large-scale offset and wrong layer. The slice thickness of the post-processed point cloud at the thinnest part of the repeatedly scanned area is about 2mm, and the slice thickness of the single-layer and single-floor point cloud in the corridor is about 5mm. When scanning vertically up and down stairs, the plane direction offset is about 3cm, the effect is good, the scanning lines inside the office are cleaned and smoothed, and the point cloud smoothing/filtering effect is good, which can be used to draw the outline plan of the house.
Excellent hardware specifications and performance

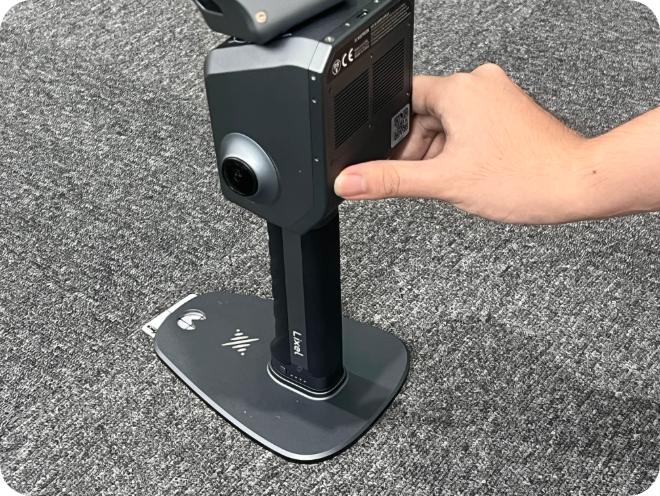

The handheld end of the aura L2 Pro weighs only 1.7kg (excluding batteries), has a size of 180mm × 130mm × 400mm, and is made of aluminum alloy, which is strong and durable. The power consumption is less than 30W, the data interface is USB 3.1 Gen2, the storage capacity is 1T SSD, and the continuous scanning time is 1.5h. The device supports wifi, Bluetooth 802.11a/B/g/n/ac,2.4-2.4835Ghz and 5.15-5.85Ghz wireless modules. The working environment temperature range is -20 ℃-50 ℃, and the protection level reaches IP54.

In terms of scanning performance, the working range of the laser is 0.5m-120m or 0.5 m-300m, the laser is Class 1 / 905nm, the laser field of view angle is 360 × 270, and the scanning data rate can reach 320000 points/s or 640000 points/s. Panoramic camera has a resolution of 2 × 48MP, a focal length of 2mm, an aperture of F/2.0, a CMOS size of 1/2 ", a shutter type of Rolling shutter, and an FOV of 190 × 190. The resolution of the black-and-white camera is 1 × 1MP, the shutter type is Global shutter, and the FOV is 190 × 119. The battery has a rated voltage of 14.4V and a capacity of 46.8wh. It is equipped with two replaceable lithium batteries and supports external mobile power supply. Outdoor large scene scanning does not need to worry about battery life.
Complete supporting software, convenient operation

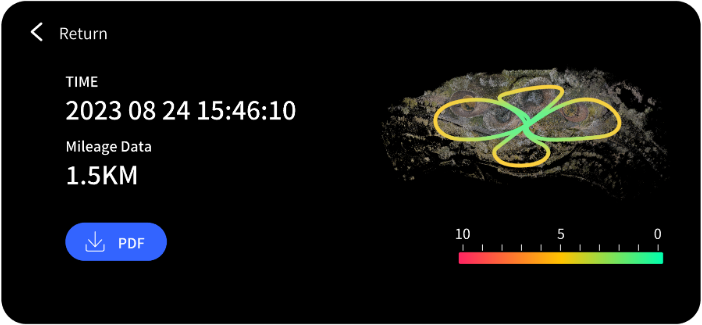

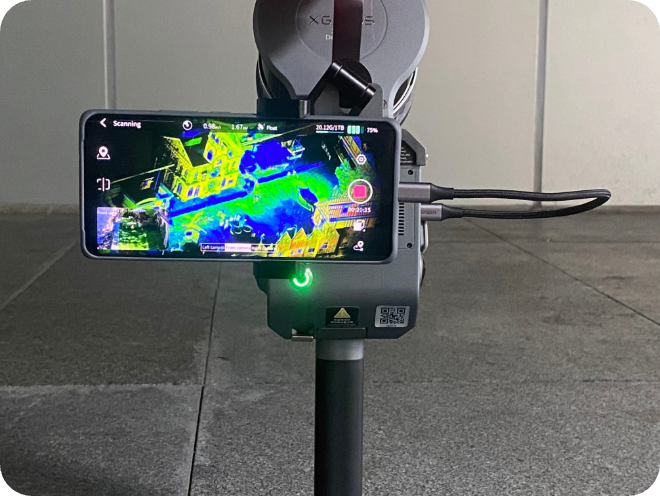

Lingguang L2 Pro is equipped with LixelStudio one-stop 3D post-processing software, which provides rich functions such as point cloud data viewing and editing, model production and post-processing. LixelGo the operation process mobile phone control, users can browse the collection results in real time, and the equipment status can be grasped 1 the screen. The equipment installation steps are simple, and the deployment can be completed in a few seconds. The equipment is controlled and monitored in real time through wireless or wired mobile phone software, thus greatly improving the convenience of operation.
Wide application scenarios, broad market prospects

Ember L2 Pro is widely used in topographic mapping, engineering survey, urban renewal, mining exploration, agricultural and forestry survey, emergency mapping, verticality detection and other industry application scenarios. Its high-precision, high-efficiency scanning performance and rich functions can meet the needs of users in different fields and provide strong support for the digital transformation of various industries.

At present, Lingguang L2 Pro has been officially listed, and the prototype of Tianbao Nate has arrived and can be demonstrated on the spot. Xgrids its domain innovation technology said that interested industry users are welcome to contact at any time to make an appointment for demonstration, and will wholeheartedly provide customers with all-round and multi-angle demonstration services, so that users can personally experience the charm of this flagship handheld scanning and modeling equipment. The launch of Ember L2 Pro will undoubtedly bring new changes to the handheld scanner market and promote 3D intelligent technology to a new height.
