Hi-Target V200 GNSS RTK System

2024-10-12

The V200 GNSS RTK receiver has excellent performance and high efficiency, providing a reliable solution for your on-site work. It is equipped with advanced RTK engines and a new generation 9-axis IMU, ensuring a 25% performance improvement even in the most demanding environments. The lightweight design combined with rich measurement software allows you to rely on Hi Target V200 to improve production efficiency

Hi-Target V200 GNSS RTK System2.png

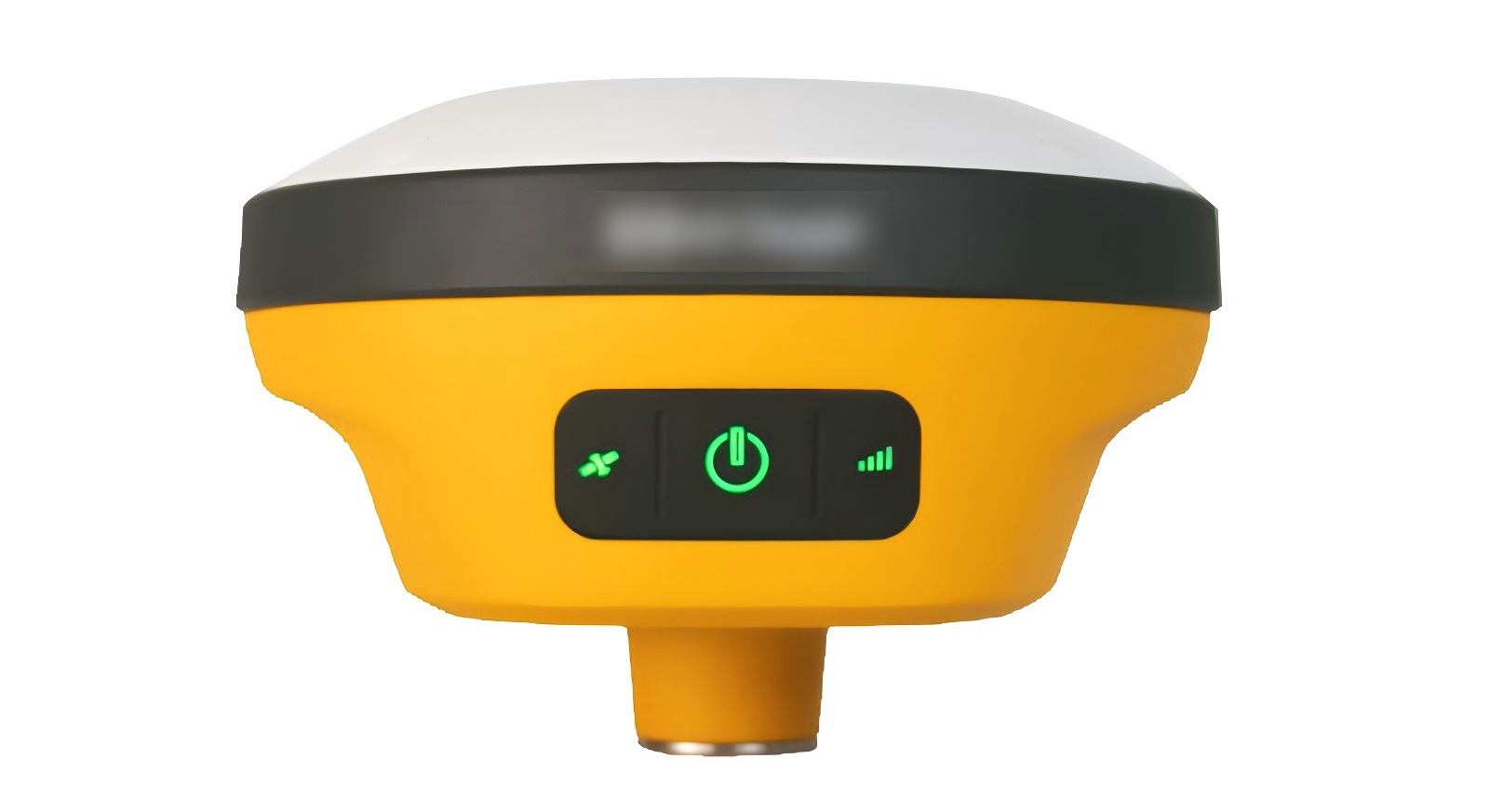

Higher Accuracy and Precision

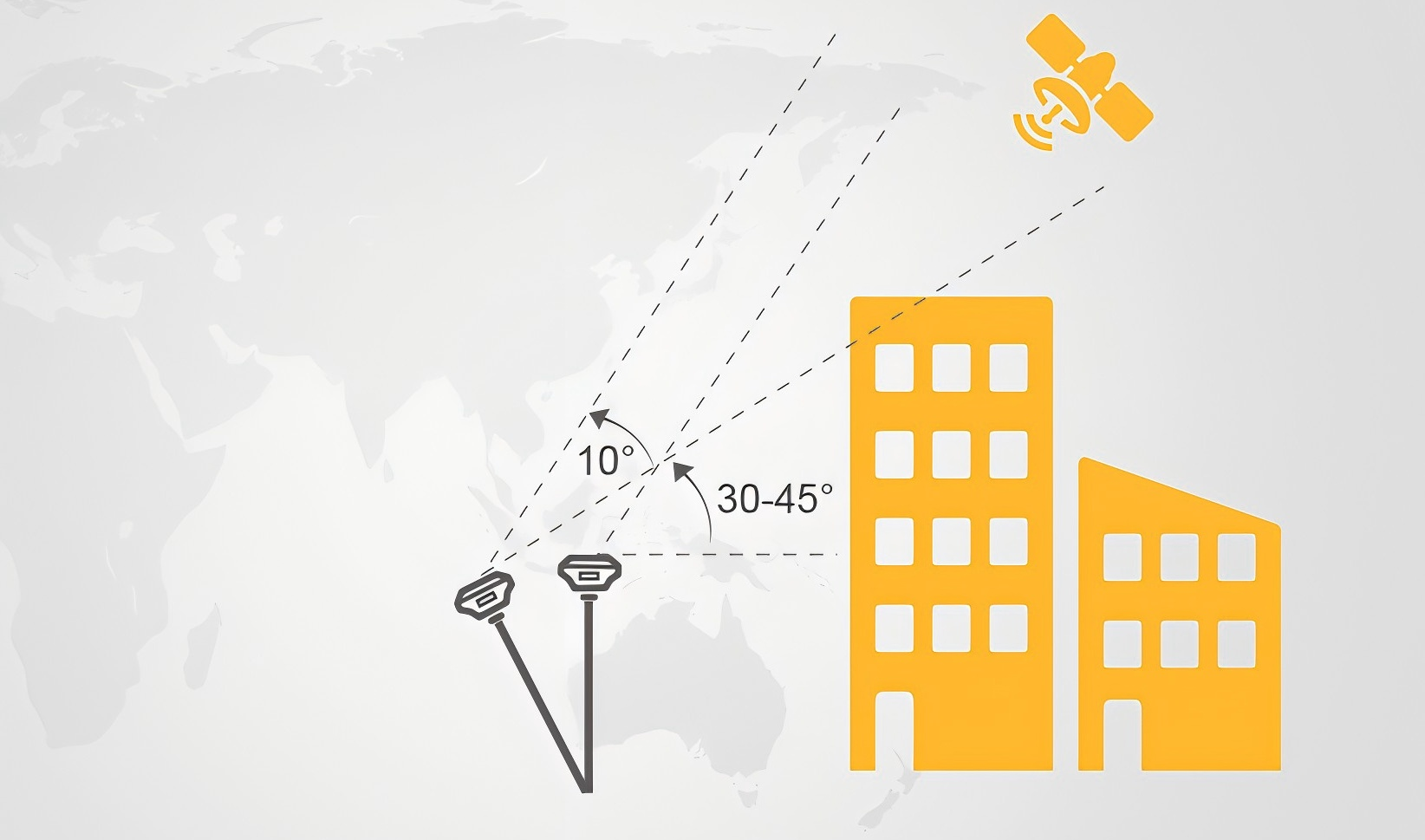

compared to earlier production models Equipped with high-performance patch antenna, it enhances the ability of low-elevation tracking, and maintains the high gain of high-elevation satellites when tracking low-elevation satellites.
The Hi-Target Hi-Fix achieves continuous connectivity and quality results even if the signal is lost when using an RTK base station or a VRS network in extreme cases.

Hi-Target V200 GNSS RTK System1.png

More Portability

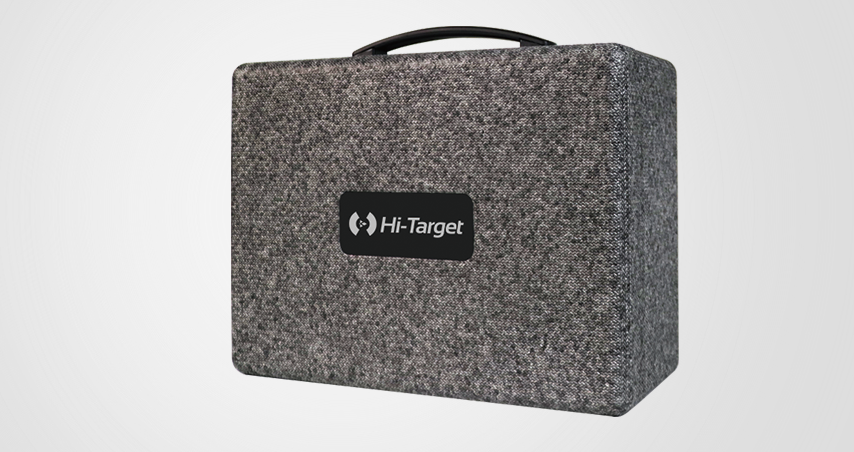

Equipped with an ultra-light EPP material instrument case of a high anti-strong impact, shock and impact resistance and a centering rod that can be contracted to 1.25 m, making it durable and portable in the fieldwork.

Hi-Target V200 GNSS RTK System3.png

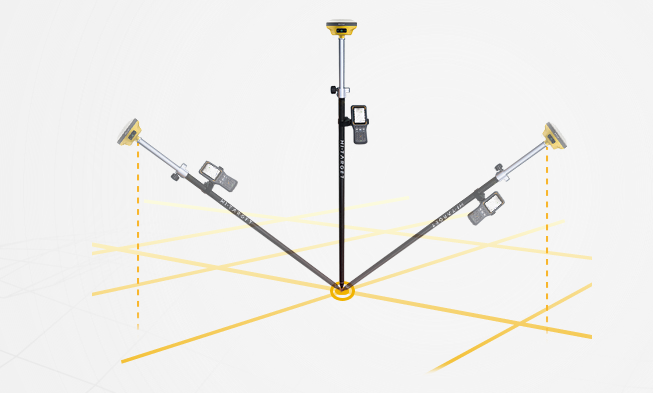

Greater Flexibility

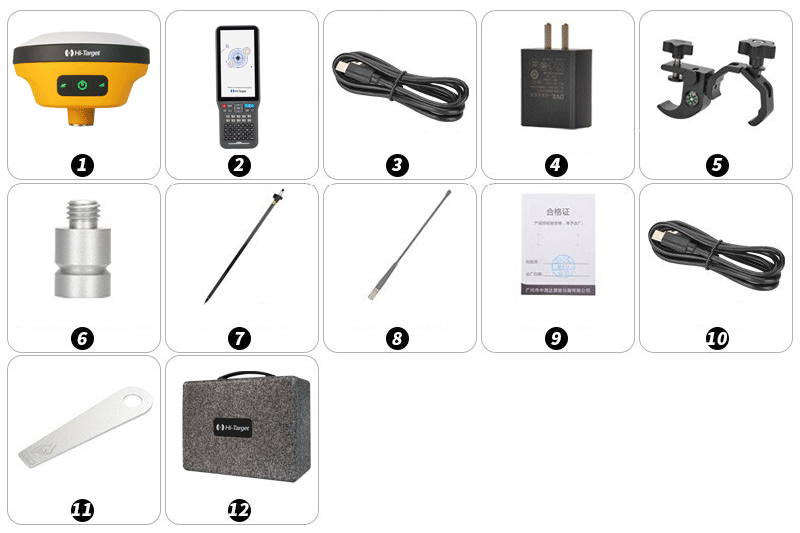

It can bring accurate and reliable results and boost efficient fieldwork with self-developed built-in IMU and core algorithmProduct Configuration List：

Hi-Target V200 GNSS RTK System4.png

Haida V200 is the 1 high-performance RTK(Real Time Kinematic) measuring instrument. Its detailed features and advantages are as follows:
1. Appearance and Design

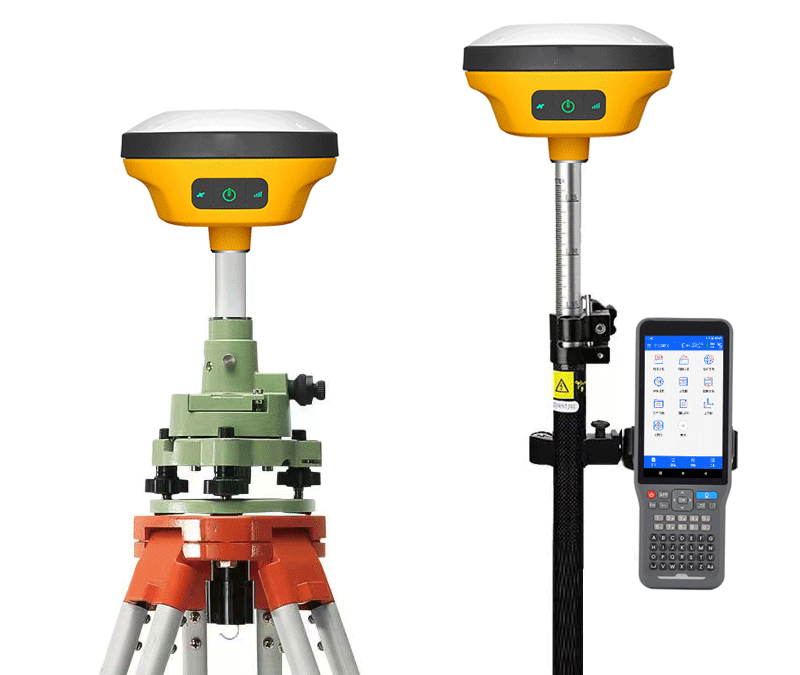

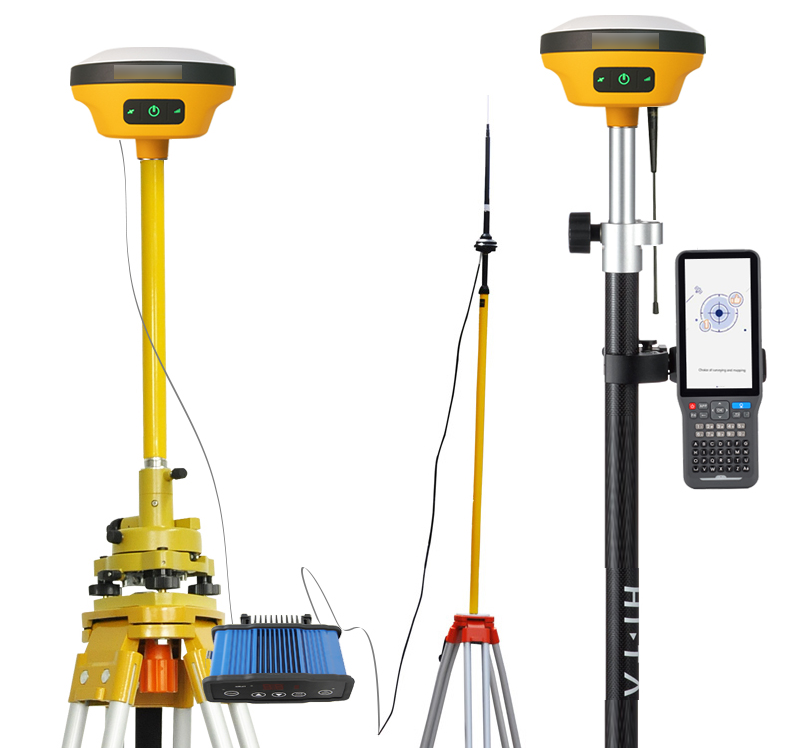

Zhonghaida V200 is designed with its light and compact design concept. The body size is moderate and the weight is controlled within 0.82kg, which is easy to carry and operate. It is equipped with a sturdy, wear-resistant and impact-resistant instrument box, made of ultra-light EPP material, which further improves the portability and service life of the product. The centering rod can be shrunk to 1.25m, making it more portable when driving outside the field.

Hi-Target V200 GNSS RTK System5.png

Hi-Target V200 GNSS RTK System6.png

Hi-Target V200 GNSS RTK System7.png

2. high-precision positioning

China Haida V200 supports Beidou III and other full constellation full frequency band, with strong signal reception capability and adaptive anti-jamming characteristics. Its RTK positioning accuracy is high, and the plane accuracy can reach ±(8 1x10 + D)mm or higher (the specific accuracy may vary depending on the model and configuration). The elevation accuracy is also excellent, which fully meets the requirements of high-precision engineering surveying and mapping.
3. fast initialization and stable performance

V200 uses a new generation of tilt measurement technology and new inertial navigation technology, to achieve a fast initialization, initialization time is less than 10 seconds, and stable and difficult to exit. The high-frequency delay-free feature makes it possible to measure on-the-spot, which greatly improves work efficiency. At the same time, the equipment can still maintain stable performance during long-term work, and can maintain good working conditions even in harsh environments.
4. rich functions and convenient operation

China Haida V200 built-in CORS service, boot can enjoy the national CORS service, no additional configuration, further simplifying the operation process. It also supports full-protocol built-in radio, with low and adjustable power Senior high school, up to 2W, typical distance of 7 kilometers, suitable for large-area operation areas. The device is also equipped with smart handbooks, such as iHand30, iHand55, etc. These handbooks have high-definition touch screens, eight-core processors and Android systems, which are smooth in operation and have powerful data processing capabilities.

In terms of software, Zhonghaida V200 provides professional measurement software, such as Hi-Survey, etc. These software have flat UI interface and simple operation layout, support comprehensive road algorithm and powerful base map display function. At the same time, the software also has open interactive functions, such as message push, software and hardware online upgrade, data sharing and joint operations.
5. a wide range of applications

With the characteristics of high precision, high efficiency and intelligence, Zhonghaida V200 has significant advantages in the field of engineering measurement. It is suitable for road lofting, water conservancy projects, housing construction, power survey and landform survey and other fields. In these areas, the V200 can provide accurate and reliable measurement data to help users improve work efficiency and measurement accuracy.
6. cost-effective

Considering the high performance and rich functional configuration of Zhonghaida V200, as well as the good reputation and after-sales service of Zhonghaida brand, this product has a high cost performance. It can meet the needs of professional surveying and mapping team and industry users with certain surveying and mapping needs, and become the 1 hot-selling product on the market.

To sum up, China Haida V200 is the 1 high-performance RTK measuring instrument with high-precision positioning, fast initialization, rich functions and convenient operation. It has a wide range of application prospects and significant advantages in the field of engineering measurement.
