DJI T70 Series Agricultural Unmanned Aircraft

DJI T70 agricultural UAV heavy release, leading the new trend of agricultural intelligence

On November 25, 2024, at a grand conference held in Shenzhen, DJI Dajiang Agriculture officially launched the T70 series of agricultural drones, including T70 and T70P models. With its excellent performance, innovative technology and high cost performance, this series of UAVs has quickly become the focus of the agricultural UAV market, injecting new vitality into the global agricultural modernization process.
Efficient and versatile, meet the needs of multiple operations

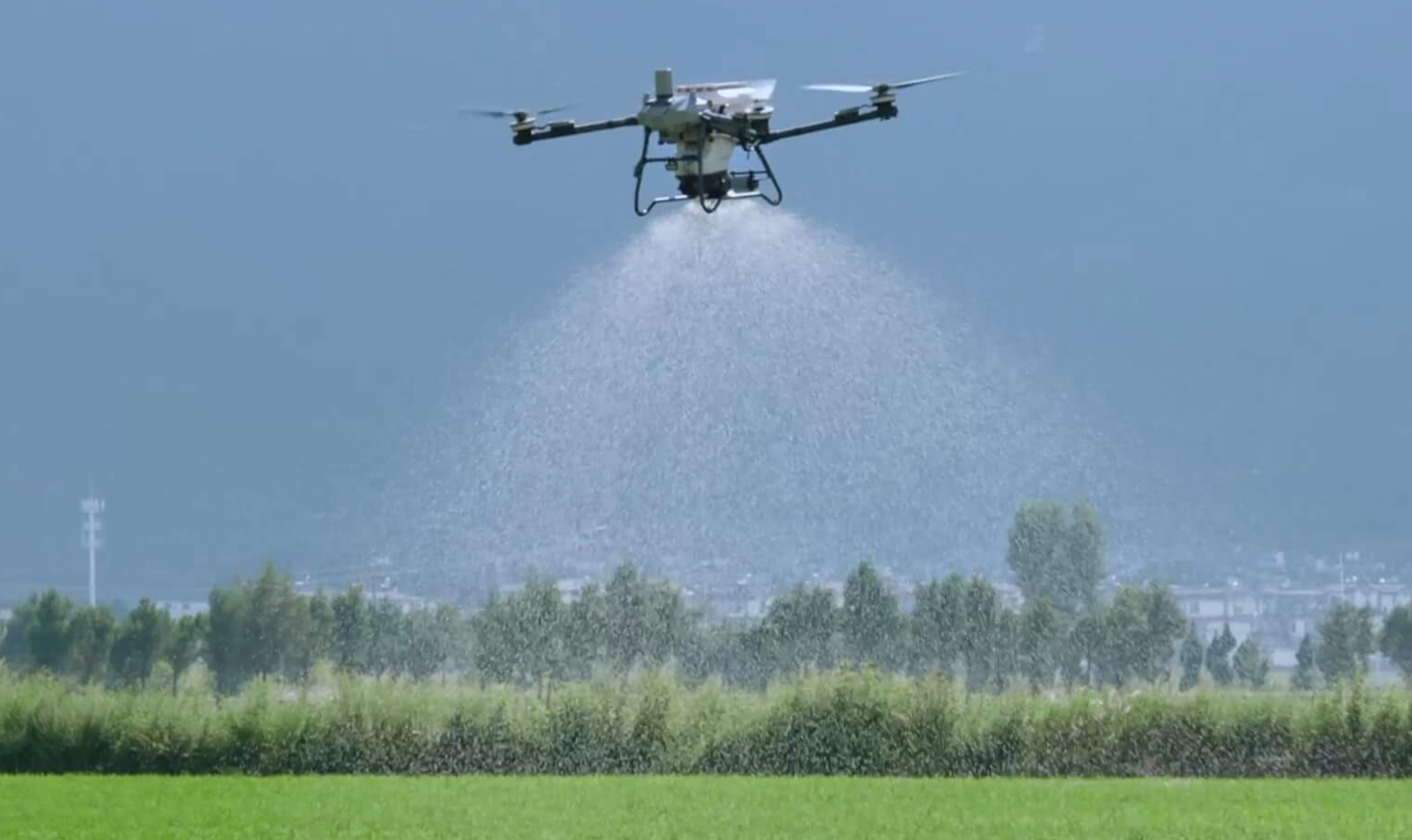

T70 series agricultural UAV can be called a versatile agricultural production, set spraying, sowing, lifting and other operations in a variety of scenarios. In the spraying operation, the T70 spraying load is up to 50kg, and the T70P is equipped with a 70-liter medicine box, which further increases the dosage. With an efficient spraying system, accurate and uniform pesticide spraying can be realized. The standard dual atomizing centrifugal nozzle has uniform and fine droplets. When operating in the field, the flow rate in the dual nozzle mode can reach 30 liters/minute, and the effective spray range is 4-11 meters, which can quickly cover a large area of farmland and improve operation efficiency. According to the requirements of thick canopy operation of fruit trees, a fog nozzle suit can also be selected, with a flow rate of up to 40 liters per minute and a fine droplet size of up to 10 microns, which can penetrate the back of leaves strongly to ensure that all parts of fruit trees can be fully covered by agents and ensure the operation effect.

In terms of sowing operations, the T70 series also performed well. The seeding load is 70kg, equipped with a 100-litre large-capacity seeding box, equipped with a new seeding system, with a larger load, doubling the seeding flow and greatly improving the efficiency. The torque of the auger motor is doubled, which avoids clogging. It can display the material quantity in real time and accurately, and effectively avoid waste. At the same time, it supports 4 kinds of auger of different sizes, with more accurate flow and stronger adaptability, which can meet various needs such as sowing, spreading fertilizer and spreading feed, and is suitable for various materials with 0.5-10mm particle size, such as chemical fertilizer, wheat seeds, feed, etc.

Facing the transportation demand under the scene of agriculture, forestry, animal husbandry and fishing, T70 series can also be transformed into a hoisting expert. The lifting load is 65kg, which is much more and can be transported far. During the flight, the three-way force sensor can intelligently adjust the attitude, automatically eliminate the swing of the cargo, and ensure smooth transportation. At the same time, the mobile phone is supported to set "loading" and "unloading" points. The remote controller can AR display the location of the destination point in real time. Manual transportation can quickly find the loading and unloading points. Automatic flight is worry-free and efficient. It can also support weight detection, avoid overweight and facilitate settlement.
Power upgrade, energy saving and environmental protection more efficient

The T70 series of agricultural drones have been fully optimized in terms of power systems, using carbon fiber materials, which are more rigid, lighter, and not easily deformed at high temperatures. Airfoil optimization, expansion of paddle diameter, energy efficiency increased by 16%, motor electromagnetic and process optimization, energy efficiency increased by 2%. Through these optimization measures, the energy consumption is effectively reduced under the same working area and working effect. One flight can save 25% of electricity, 25% of oil money per day, and the cost of use is lower.

In terms of battery, T70 is equipped with DB1580 intelligent flight battery with a capacity of 30000mAh, a voltage of 52V and a weight of 11.7±0.3kg. T70P is equipped with DB2160 intelligent flight battery with a capacity of 41000mAh, a voltage of 52V and a weight of 14.7±0.3kg. These two batteries have higher energy density, lighter weight, and support extremely fast charging. With D12500iE all-round frequency conversion charging station, the charging time of 30%-95% of T70 battery is only 7-8 minutes, and that of T70P battery is 10-11 minutes. In addition, it also supports double electric circulation, landing and flying, which greatly improves the efficiency of the operation and reduces the waiting time.
Safety escort, all-round guarantee operation safety

Safety is a crucial link in agricultural production, and the T70 series of agricultural UAVs have made great efforts in safety systems. The T70 series is equipped with a three-eye vision system and front and rear active phased array radars, integrating new AI and AR functions, providing a full range of safety guarantees for aircraft take-off and landing and operations.

The AI algorithm can automatically identify obstacles encountered in the operation and save the information into the plot, improve the efficiency of the same plot operation, and fly over safely. The newly added AR safety assistance function can detect people and vehicles around them during take-off and landing, and remind pilots to pay attention to the surrounding environment in time. AR flight trajectory can also be generated during operation to help pilots predict the flight direction of the aircraft. When returning, AR can display the return point, quickly find the return direction, and when landing, there is a safe landing projection to assist in checking the environmental safety on the landing route.

At the same time, the T70 series also has a variety of safety protection functions, such as over-temperature, over-voltage, under-voltage, short circuit, fan stall and other protection functions to ensure that the UAV can operate stably and safely in various complex environments.
Intelligent control, easy to use and more intimate

T70 series agricultural UAV comes standard with a 7-inch high-brightness large-screen remote controller, which can be clearly seen under strong light. Its rich operation mode and comprehensive practical function, whether novice or veteran, can be handy. The user only needs to complete the enclosure, and can do the operation with one key, with zero takeover in the whole process and zero difficulty in getting started. Mobile phones and remote controllers can be circled, selected on demand, and the route will be automatically generated after circled. One-click call parameter template, convenient and quick. In addition, it also has the function of automatic return without medicine and electricity, so that users do not need to worry about accidents caused by insufficient electricity or medicine.

During the operation, the T70 series also supports horizontal 360 and upper obstacle avoidance, and supports large slope non-aerial survey and imitation ground. Its oblique pull wire, wire detection rate increased significantly, the field obstacles panoramic view. The newly upgraded safety system 3.0 adds an intelligent detection algorithm, which can intelligently detect obstacles and choose a smarter detour direction. When encountering complex scenes, it can also intelligently escape difficulties, and the obstacle passing rate is greatly improved.
Market response enthusiastic, broad prospects

Since its release, the T70 series of agricultural drones have received widespread attention and praise from the market. Many agricultural practitioners have given high recognition to its efficient, multi-functional, safe and intelligent characteristics. Many growers said that the T70 series of drones will greatly improve their operational efficiency, reduce labor intensity, save production costs, and bring tangible benefits to agricultural production.

The relevant person in charge of DJI Agriculture said that the launch of the T70 series of agricultural drones is the result of 12 years of technological precipitation and innovative breakthroughs in DJI Agriculture. In the future, DJI Agriculture will continue to uphold the vision of "making agriculture easier and life better", continue to increase R & D investment, launch more advanced agricultural intelligent equipment and solutions, and contribute more to the global agricultural modernization process.

With the continuous advancement of agricultural modernization, the agricultural UAV market has a bright future. The launch of the T70 series of agricultural drones will undoubtedly inject new vitality into this 1 of the market, promote the development of agricultural drone technology to a higher level, and help global agricultural practitioners create a better life. We have reason to believe that under the guidance of DJI Agriculture and other enterprises, agricultural drones will play a more important role in future agricultural production and make greater contributions to global food security and sustainable agricultural development.
