JOUAVCW-007 VTOL fixed-wing UAV

JOUAV CW-007 UAV is the 1 portable electric light UAV with excellent performance and comprehensive functions. The following is a detailed evaluation of it:

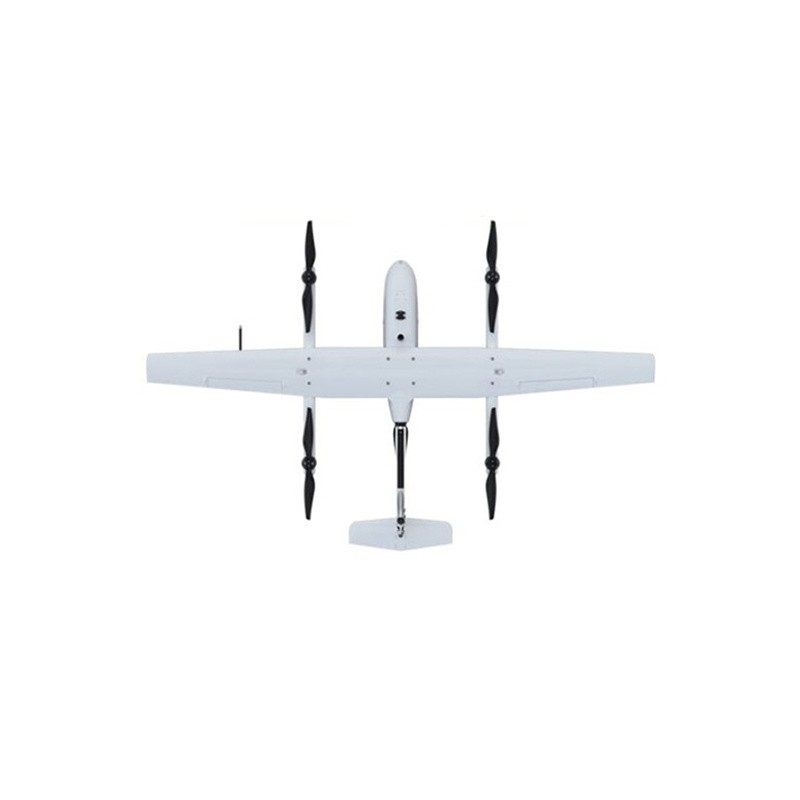

Vertical take-off and landing: the CW-007 adopts the composite wing layout form of fixed wing combined with 4 rotor, which realizes the function of vertical take-off and landing, greatly reduces the dependence on the site, ejection frame, parachute, etc., and has strong adaptability to the operation site.

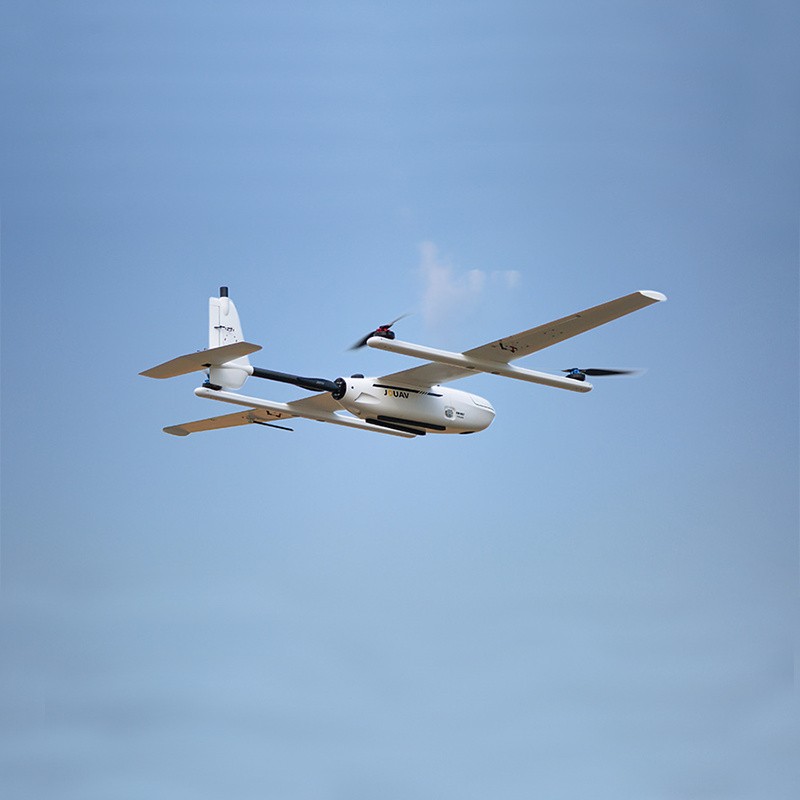

Long endurance and high-speed cruise: the endurance is up to 55 minutes (also known as 1 hour, which may vary depending on the specific configuration or test conditions), and the cruising speed can reach 61.2 km/h, meeting the requirements of long-term and long-distance tasks.

High-precision positioning: standard real-time differential system (RTK), to ensure centimeter-level accurate autonomous vertical landing, while providing high-precision POS data to meet the needs of high-precision applications such as surveying and mapping, inspection.

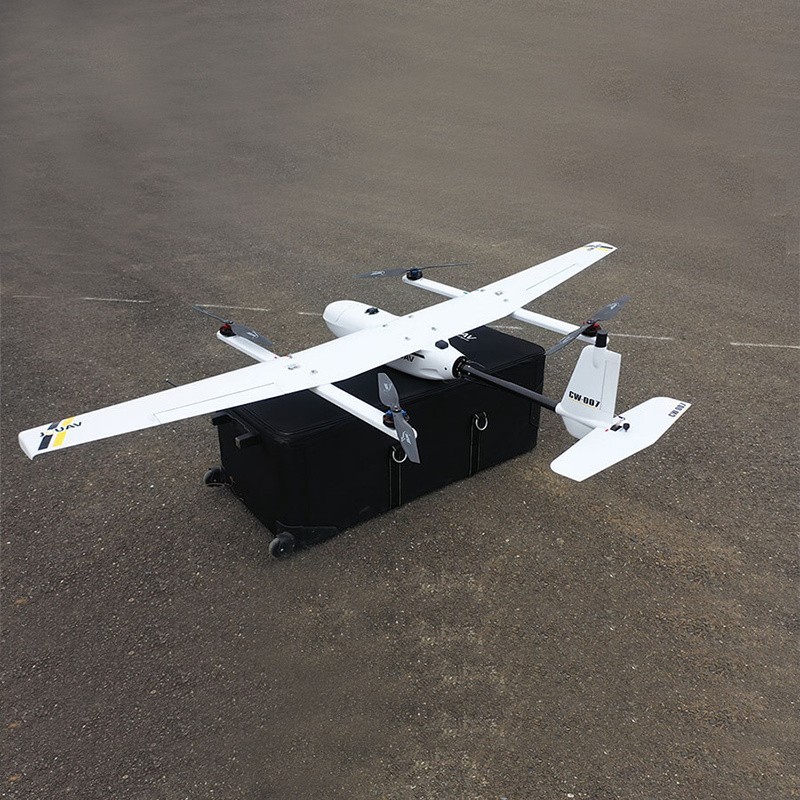

Portability: The total takeoff weight is only 6.8kg (also known as 6.9kg, which may vary depending on the version or configuration), and the package is less than 25kg, which is convenient for one person to carry and transport. The combination of backpack design, integrated system, quick plug-in mission equipment and software ensures the highest accuracy and best results of any solution.

Modular design: A large number of latches, buckles, and self-locking devices are used, and the UAV can be disassembled and assembled without any tools. The structure is simple and the deployment time is short.

Dual redundant design: dual GPS and multi-redundant design ensure that if the main differential GPS or built-in magnetic compass is abnormal during flight, it can smoothly switch to backup GPS or external magnetic compass to ensure flight safety.

CW-007 UAV is widely used in surveying and mapping geographic information, inspection, security monitoring, emergency and other fields of a variety of application scenarios. For example, in land survey, topographic mapping, urban planning, agricultural surveying and mapping, CW-007 can provide high-precision and high-efficiency aerial remote sensing data support. At the same time, its portability and vertical take-off and landing capabilities also make it suitable for operations in special geomorphic environments such as mountains and canyons.

Easy to operate: The CW-007 supports one-key take-off and landing, which is safe and simple, and can realize fully automatic flight without remote control. At the same time, the ground station software provides rich flight control functions, such as mission planning, video surveillance, real-time splicing, etc., which reduces the difficulty of operation.

Convenient maintenance: The modular design is convenient for users to maintain and upgrade, and reduces the cost of use. At the same time, Chengdu Zongheng Automation Technology Co., Ltd. provides perfect technical support and after-sales service to ensure that users can get timely and professional help during use.

JOUAV CW-007 UAV has become the 1 UAV product favored by users because of its excellent performance characteristics, comprehensive functional characteristics and a wide range of applications. Whether it is vertical take-off and landing, long endurance and high-speed cruise, high-precision positioning, portability and modular design, CW-007 have shown strong strength. At the same time, its simple operation mode and perfect maintenance support also ensure that users can get a good experience during use.

In summary, the JOUAV CW-007 UAV is the 1 portable electric light UAV with excellent performance and comprehensive functions, suitable for a variety of application scenarios and needs.

The detailed parameters of JOUAV CW-007 UAV are as follows:

Type: Portable electric light vertical take-off and landing fixed-wing drone

Body length: 1.3m

Wingspan: 2.2m

Maximum takeoff weight: 6.8kg (also known as 7.8kg, may vary depending on version or configuration)

Battery life: 55 minutes (60 minutes or 70-90 minutes, may vary depending on battery configuration, usage conditions and environmental factors)

Cruising speed: 61.2 km/h (also 65 km/h, may vary depending on version or configuration)

Service ceiling: 6000m

Maximum take-off altitude: 4500m

Wind resistance: level 6

Take-off and landing mode: vertical take-off and landing

Positioning accuracy:

Vertical direction: 3cm

Horizontal direction: 1cm 1ppm

Payload: ≤ 1kg (also said ≤ 800g, may vary depending on version or configuration)

Mission payload: can carry multiple types of mission payloads, such as full-frame ortho-cameras, multi-spectral cameras, etc.

Image sensor: CA-102 full-frame ortho camera, 42 million effective pixels, 35mm full-frame Exmor R CMOS back-illuminated image sensor, equipped with Carl Zeiss Loxia®2/35 lens.

Spectral sensors: such as MicaSense®Altum, which provides high-resolution multispectral/thermal imaging data.

Exposure delay: less than 10ms (or minimum exposure interval ≤ 0.6s)

Electric motor: low noise, brushless (there are also said to be electronic injection engines, but more information points to brushless motors)

Radio link range: 30km (may vary by version or configuration)

Modular design: modular design of the whole machine, tool-free quick disassembly and assembly, mechanical and electrical synchronous connection, can be decomposed into multiple components (the number of specific components may vary depending on the version or configuration)

Mission bay size: 190 × 130 × 120mm (may vary depending on version or configuration)

Carrying case size: 1200 x 500 x 400mm

Remote control: optional JOUAV®TC-101 remote control, designed for vertical and horizontal Dapeng®CW series tailor-made, 1000 meters remote control distance, built-in battery life of more than 6 hours.

Charger: optional JOUAV®Charging housekeeper can manage 4 sets of battery charging and charge 2 sets of batteries at the same time.

Installation method: the best four-corner shock absorption scheme is adopted, and the installation method of the pull-type self-locking structure is convenient to use.

In summary, with its excellent performance parameters and comprehensive functional characteristics, JOUAV CW-007 UAV has a wide range of applications in surveying and mapping geographic information, inspection, security monitoring and other fields. Whether it is vertical take-off and landing, long battery life, high-precision positioning, portability and modular design, CW-007 have shown strong strength.
