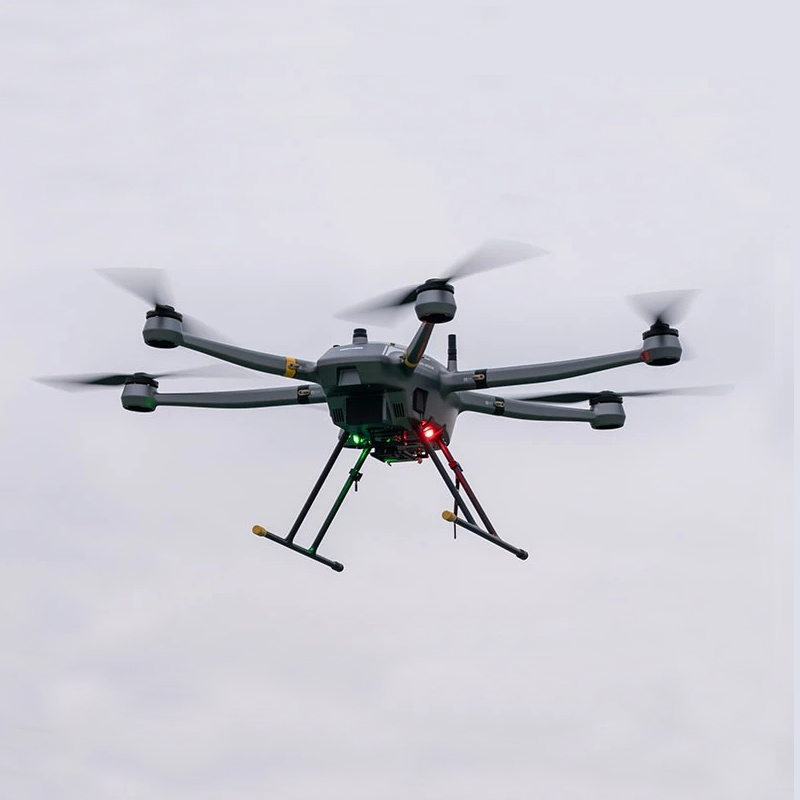

JOUAV PH-20 multi-rotor UAV with a maximum load of 10kg and a 70-minute endurance. It is equipped with all common payloads such as lidar, camera, spectral imager, aeromagnetic, micro synthetic apertur

The JOUAV PH-20 Unmanned Aerial Vehicle (UAV) excels in performance, functionality, and applicability. Here is a detailed evaluation of this UAV:

1.Long Endurance Flight: The JOUAV PH-20 UAV can fly for up to 70 minutes when equipped with an electro-optical gimbal and 75 minutes when carrying a LiDAR system. In unloaded conditions, its flight time can exceed 100 minutes. This long endurance capability allows the UAV to operate in the air for extended periods, improving work efficiency.

2.High Payload Capacity: The maximum payload of this UAV can reach 10kg, enabling it to be equipped with various common payloads such as LiDAR, cameras, spectral imagers, aeromagnetic sensors, and mini synthetic aperture radars. This provides wide applicability for the UAV in multiple application scenarios.

1.Advanced Technology: The JOUAV PH-20 UAV adopts multi-sensor technology, control allocation and reconstruction technology, fully digital bus avionics technology, and full closed-loop health monitoring and management technology. The application of these technologies makes the UAV smarter, more stable, and safer during flight.

2.Convenient Maintenance: The mechanical arms of the UAV are plug-and-play, making them very convenient for use and maintenance. Additionally, its unified payload electrical interface design supports one-click installation, further saving time and labor costs.

1.High-Performance Materials: The entire aircraft is made of high-performance carbon fiber composite materials, which are lightweight, rigid, and strong, ensuring the durability and stability of the UAV.

2.Strong Wind Resistance: The inward-tilting rotor system design enhances the UAV's wind resistance and anti-interference capabilities, allowing it to fly stably under complex meteorological conditions.

1.Obstacle Avoidance System: Equipped with millimeter-wave radar, it can achieve four-directional obstacle avoidance, significantly improving flight safety.

2.Harsh Environment Testing: The UAV has undergone testing in high and low temperatures, high altitudes, strong winds, heavy rain, and other harsh environments, ensuring its stability and reliability under various extreme conditions.

With its excellent performance and multiple functions, the JOUAV PH-20 UAV can be widely used in various fields such as security monitoring, emergency rescue, energy inspection, forest and grassland protection, and border patrol. Especially in the fields of security monitoring and emergency rescue, it has outstanding operational advantages with functions such as visible light monitoring, infrared thermal imaging detection, aerial public address warnings, nighttime aerial lighting, and material delivery.

In summary, the JOUAV PH-20 UAV is a multi-rotor UAV that integrates efficiency, intelligence, and safety. Its excellent performance and wide range of applications make it the first choice for many industry users.

The parameters of JOUAV PH-20 UAV are as follows:

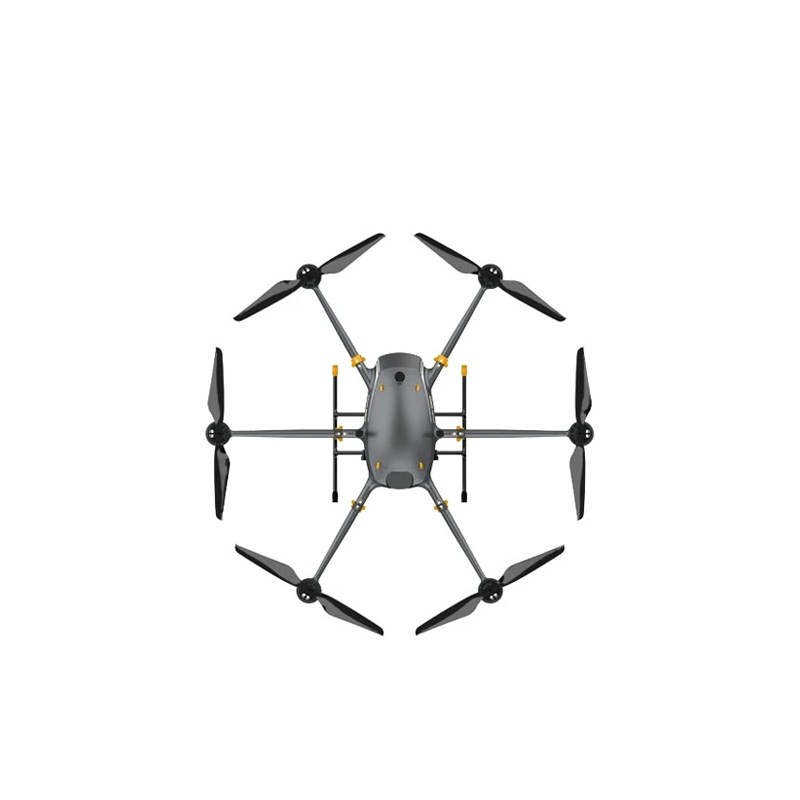

Number of rotors: six rotor design, rotor power inclination installation.

Motor wheelbase: 1.69m

Maximum takeoff weight: 24.9kg

Maximum load: 10kg, can be equipped with laser radar, camera, spectral imager, aeromagnetic, micro synthetic aperture radar and other common loads.

Flight time:

No load: 100 minutes

With electro-optical pod: 70 minutes

Lidar on board: 75 minutes

Full load: 55 minutes

Maximum level speed: 20 m/s

Hover horizontal position accuracy: ± 0.15m

Wind resistance: Level 8

Rainproof performance: rain proof

Protection grade: IP45

Working temperature:-20 ℃ ~ 55 ℃

Intelligent functions: multi-sensor technology, control distribution reconfiguration technology, full digital bus avionics technology, full closed-loop health monitoring and management technology.

Convenience design:

The mechanical arm adopts the plug-in mode, which is convenient to use and maintain.

Unified load electrical interface, support a key installation.

The task load interface adopts the open electromechanical integration sliding quick release design, which can be adapted to various types of task load equipment.

Emergency protection mechanism: it has a variety of emergency protection mechanisms such as low voltage return, lost connection return, autonomous obstacle avoidance, ground-like flight, and line-like flight.

Obstacle avoidance capability: equipped with millimeter wave radar, can realize 4 obstacle avoidance.

Environmental adaptability: After high and low temperature, plateau, strong wind, rainstorm and other harsh environment tests, the safety is higher.

Ground station: It can be matched with the latest generation of ground application software "vertical and horizontal star map" to realize one-stop control of UAV system.

Control function: supports automatic route planning, route attribute editing, route inspection and other functions in multiple scenarios. It can quickly carry out operations such as one-key takeoff, one-key hovering, one-key return, one-key landing, etc.

In summary, the JOUAV PH-20 UAV has excellent performance parameters, intelligent and convenient design, excellent safety performance and efficient control system, and can be widely used in security monitoring, emergency rescue and other fields.
