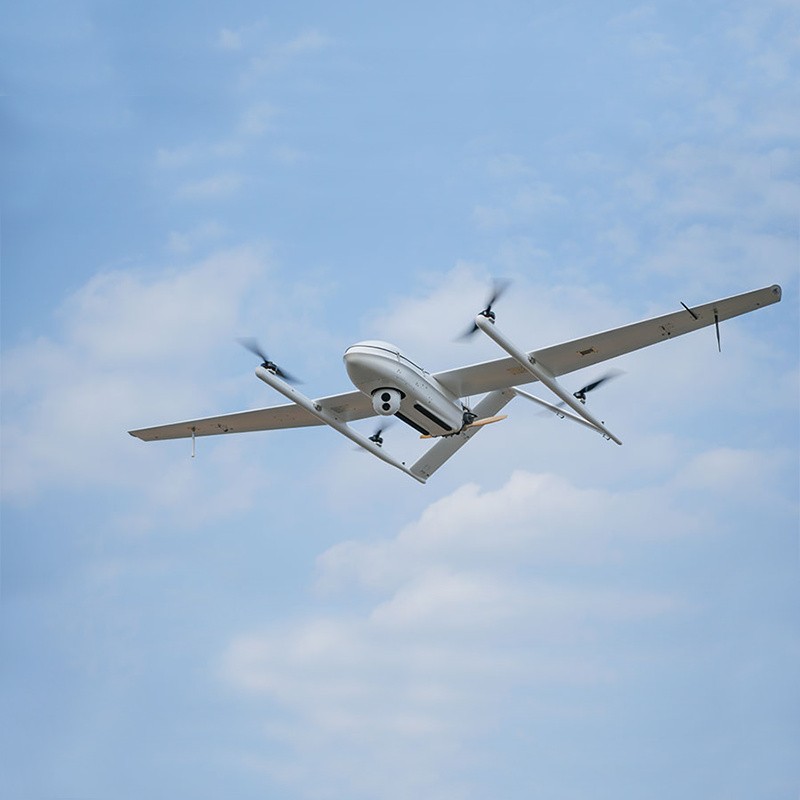

JOUAV CW-25 oil-electric hybrid vertical take-off and landing fixed-wing UAV

JOUAV CW-25 UAV is the 1 vertical take-off and landing fixed-wing UAV with excellent performance and comprehensive functions. The following is a specific evaluation of it:

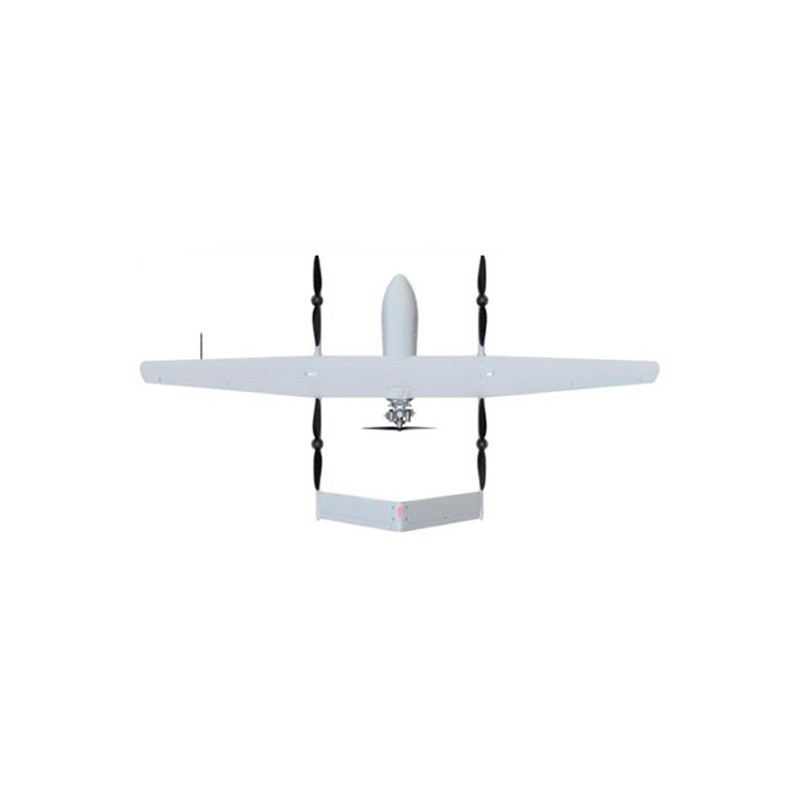

Fuselage design: The CW-25 UAV has a fuselage length of 2.1m and a wingspan of 4.0m (otherwise 4.4m, which may vary depending on the version or configuration). It adopts a modular design, can be quickly disassembled and assembled, and is convenient for transportation and response to various tasks.

Power system: Equipped with electronic injection system or hydrogen-electric hybrid system (such as the CW-25H version), it has the characteristics of long flight time, fast speed and large load. The endurance can reach 360 minutes (CW-25 standard version) or 330 minutes (CW-25H hydrogen-electric hybrid version), and the cruising speed can reach 100 km/h(CW-25 standard version) or 80 km/h(CW-25H hydrogen-electric hybrid version).

Load capacity: The payload capacity is 3~6kg, and a variety of mission equipment can be selected, such as aerial cameras, lidar, aperture radar, photoelectric pods, etc., to meet the needs of a variety of application scenarios.

take-off and landing mode: with vertical take-off and landing capability, you can easily switch between vertical take-off and landing and horizontal flight mode, and adapt to the take-off and landing requirements of complex terrain and environment.

Navigation system: Integrated high-precision MEMS inertial sensors, high-performance CPU, dual GPS positioning system, etc., to provide accurate positioning and navigation services. Support RTK and PPK functions to achieve centimeter-level autonomous vertical landing and high-precision POS data.

Flight control: Support fully automatic one-button take-off and landing, landing accuracy is less than 15cm. At the same time, equipped with dual GPS and dual compass, GPS or data link timeout will automatically return to ensure flight safety.

Widely used: CW-25 drones are widely used in digital mines, energy inspection, smart cities, rail transit and other scenarios. In the field of environmental protection, the current environmental situation can be quickly identified on demand, and the multi-dimensional data of the ecological environment can be collected quickly, accurately and efficiently.

Rescue and disaster relief: In rescue and disaster relief missions, CW-25 drones are equipped with professional aerial survey cameras to obtain more detailed damage and on-site pictures, providing reliable data support for rescue and disaster relief and disaster assessment.

Efficient and accurate: mission equipment such as lidar, aperture radar and aeromagnetic sensors have the characteristics of low cost, high safety, high mobility, and high precision, achieving rapid and accurate collection of various types of data.

Portability: The CW-25 drone adopts a modular design, which is easy to carry and deploy. At the same time, it is equipped with a portable ground station, a portable battery, a flight link antenna, etc., which is convenient for users to use in different scenarios.

Software support: Provide a one-stop drone product, including the supporting software required for the mission. Users can use these software to plan flight paths, control and manage drones, track and identify targets, and view drone video and geographic data information in real time.

To sum up, JOUAV CW-25 UAV has become the 1 UAV product favored by users because of its excellent hardware specifications, excellent flight and control performance, wide range of applications and convenient software support.

The detailed parameters of JOUAV CW-25 UAV are as follows:

Type: oil/hydrogen-electric hybrid vertical take-off and landing fixed-wing UAV

Body length: 2.1m

Wingspan: 4.0m (also known as 4.4m, may vary depending on version or configuration)

Maximum takeoff weight: 25kg(CW-25 standard version),31kg(CW-25H hydrogen-electric hybrid version)

Endurance:

CW-25 Standard: 360 minutes

CW-25H hydrogen-electric hybrid version: 330 minutes

Cruise speed:

CW-25 Standard Edition: 100 km/h

CW-25H hydrogen-electric hybrid version: 80 km/h

Service ceiling:

CW-25 Standard Edition: 7000m

CW-25H hydrogen-electric hybrid version: 6000m (6500m, which may vary depending on version or configuration)

Maximum takeoff altitude: 4500m(CW-25 standard version), the specific value may vary with version or configuration

Wind resistance: 7 wind

Radio link range: 50km or 100km (optional)

Take-off and landing mode: vertical take-off and landing

Payload capacity: 3~6kg (specific values may vary by version or configuration)

Mission payload: It can carry a variety of mission equipment, such as aerial cameras, lidar (e. g. JoLiDAR60/62), aperture radar, optoelectronic pods (e. g. MG-200S), aeromagnetic sensors, etc.

photoelectric pod specifications:

The MG-200S photoelectric pod is equipped with advanced 30 times non-destructive optical zoom optical movement and infrared thermal imaging movement, with day and night reconnaissance and surveillance capabilities.

Visible light pixels: 1920 × 1080

Infrared thermal imager type: vanadium oxide uncooled plane, pixel number 640 × 480

Onboard AI assistance for continuous identification, labeling, framing and tracking of specific target types

Lidar Specifications:

Laser level: 1, eye safe

Accuracy: ± 1.5cm

Maximum pulse emission frequency: 820kHz

Scan angle (FOV):330 °

Maximum ranging: 1350m

EFI engine: 64cc EFI Engine(CW-25 Standard Edition)

Remote control: JOUAV®TC-101 remote control, specially tailored for CW series, 1000 meters remote control distance, built-in battery life is more than 6 hours

Modular design: Yes, easy to maintain and upgrade

Carrying case size: 2180 × 420 × 560mm (may vary depending on version or configuration)

Positioning accuracy:

Vertical positioning accuracy: 3cm

Horizontal positioning accuracy: 1cm 1ppm

In summary, the JOUAV CW-25 UAV has shown a wide range of applications in many fields with its excellent performance parameters and comprehensive functional characteristics. Whether it is long endurance, high speed, high load or high precision, CW-25 have shown a strong strength.
