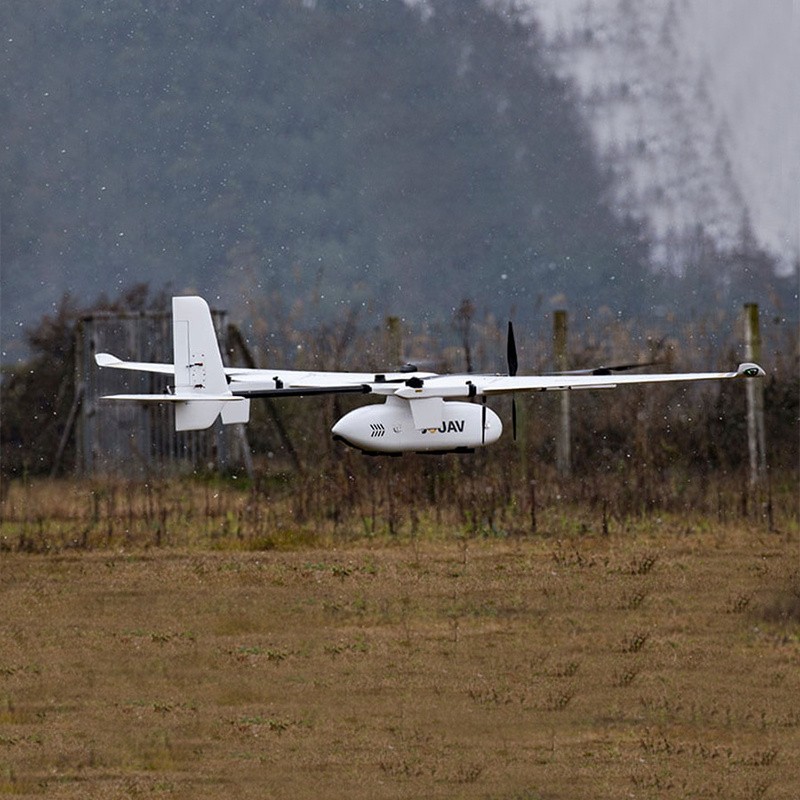

JOUAV CW-15 UAV long-duration vertical take-off and landing fixed-wing UAV

The JOUAV CW-15 UAV is the 1 high-performance and full-featured vertical take-off and landing fixed-wing UAV. The following is a detailed evaluation of it:

Long endurance: When CW-15 UAVs carry ortho-or tilt equipment, the endurance can reach up to 160 minutes (or 180 minutes, which may vary depending on the version or configuration) to meet the requirements of long-term missions.

Plateau performance: The UAV can take off normally at an altitude of 4500 meters, and the cruising altitude can reach 8000 meters, which can adapt to the operation requirements of complex terrain and environment.

Vertical take-off and landing: With vertical take-off and landing capability, no runway, flexible and convenient take-off and landing, suitable for various scenes.

One machine with multiple functions: multiple task module cabins can be configured to meet the needs of diversified tasks according to the actual task load, such as ortho-camera, 5 tilt camera, multi-spectral, hyperspectral, aeromagnetic, photoelectric pod, etc.

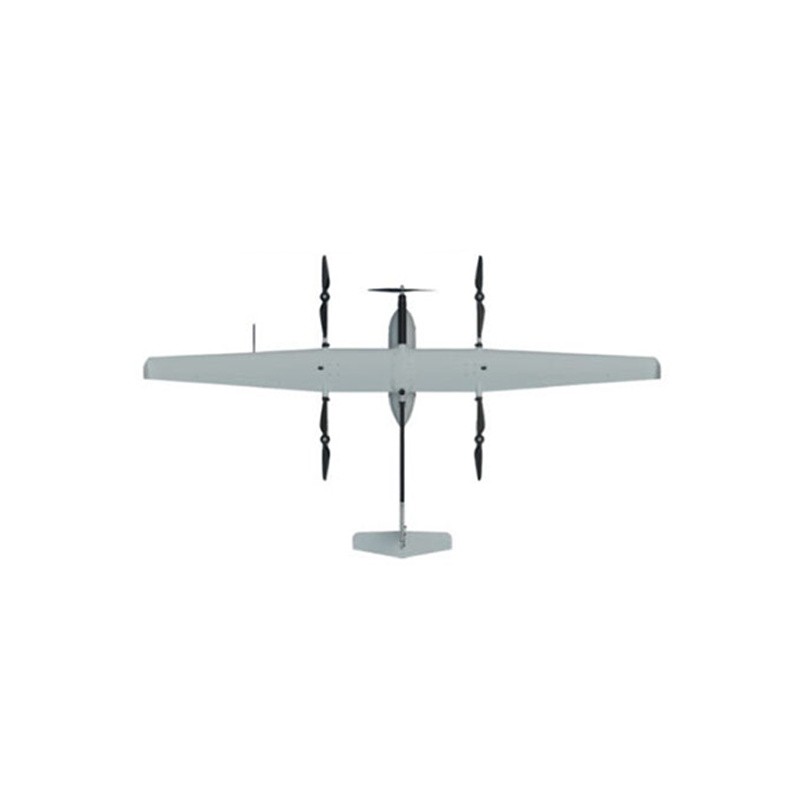

Fuselage design: the length of the fuselage is about 1.7 meters (it is also said to be 2.06 meters, which may vary according to different versions or configurations), the wingspan is 3.54 meters, the highly modular design is adopted, the connection structures are all fast locking devices, and the rotor arm is folded, which is easy to carry and transport.

Load capacity: The maximum takeoff weight is 16.5kg, and the payload is ≤ 3kg. The task compartment can be replaced in real time according to the mission requirements.

Flight performance: cruising speed can reach 65 km/h (also said to be 61 km/h, which may vary depending on version or configuration), wind resistance level 6, and service ceiling of not less than 8000m.

CW-15 UAV is widely used in surveying and mapping geographic information, inspection, security monitoring, emergency and other fields of a variety of application scenarios. For example, in emergency surveying and mapping support, land and resources monitoring, major project construction and other aspects, CW-15 UAV can provide high-precision and high-efficiency aerial remote sensing data support.

Easy to operate: The CW-15 UAV supports one-key take-off and landing, which is safe and simple, greatly reduces the requirements for the site, and does not need to rely on ejection racks, parachutes and other equipment. At the same time, the ground station software CWCommander supports one-key take-off and landing without a remote controller, and the landing accuracy is within 10cm.

Convenient maintenance: The modular design is convenient for users to maintain and upgrade, and reduces the cost of use.

JOUAV CW-15 UAV has become the 1 UAV product favored by users for its excellent performance characteristics, comprehensive technical specifications, wide application fields and simple operation and maintenance methods. Whether it is long-term, plateau performance, vertical take-off and landing or a multi-purpose machine, CW-15 have shown a strong strength. At the same time, JOUAV also provides one-stop UAV products and supporting software, as well as perfect technical support and after-sales service, to ensure that users can get timely and professional help in the process of use.

In summary, the JOUAV CW-15 UAV is the 1 vertical take-off and landing fixed-wing UAV with excellent performance and comprehensive functions, suitable for a variety of application scenarios and needs.

The detailed parameters of JOUAV CW-15 UAV are as follows:

Type: Electric small vertical take-off and landing fixed-wing UAV

Body length: about 1.7 meters (also known as 2.06 meters, may vary depending on version or configuration)

Wingspan: 3.54 meters

Maximum takeoff weight: 16.5kg

Endurance: Up to 160 minutes (180 minutes, may vary depending on configuration or test conditions)

Cruising speed: 65 km/h (also 61 km/h, may vary depending on version or configuration)

Wind resistance: level 6

Useful ceiling: not less than 8000 meters

Maximum take-off altitude: 4500 meters

Take-off and landing mode: vertical take-off and landing

Positioning accuracy:

Vertical direction: 3cm

Horizontal direction: 1cm 1ppm

Payload: ≤ 3kg

Task load: multiple task module cabins can be configured to carry task loads according to actual needs, such as ortho-camera, 5 tilt camera, multi-spectral, hyperspectral, aeromagnetic, photoelectric pod, etc.

Image sensor:

CA-102 full-frame ortho camera, 42 million full-frame sensor, 35mm full-frame Exmor R CMOS back-illuminated image sensor, equipped with Carl Zeiss Loxia®2/35 lens.

Other optional sensors include MicaSense®Altum spectral sensor, Firefleye S185 ST hyperspectral sensor, etc.

Optoelectronic pod: For example, the MG-200S dual-optical pod is equipped with an advanced 30-fold lossless optical zoom optical movement and an infrared thermal imaging movement, which can perform day and night reconnaissance and surveillance tasks on the target area.

Motor: low noise, brushless

Radio link range: 35km

Modular design: the fuselage structure is highly modular, all connection structures adopt fast locking devices, the rotor arm adopts folding design and does not need to be disassembled, and the electrical connection adopts anti-plug-in design to improve reliability and convenience.

Carrying case size: about 1370 × 610 × 520mm (the specific size may vary depending on the version or configuration)

Remote control: JOUAV®TC-101 remote control, designed for vertical and horizontal Dapeng®CW series tailor-made, 1000 meters remote control distance, built-in battery life of more than 6 hours.

Software: Ground station software CWCommander, support for one-key take-off and landing functions without remote control.

In summary, with its excellent performance parameters and comprehensive functional characteristics, JOUAV CW-15 UAV has a wide range of applications in surveying and mapping geographic information, inspection, security monitoring and other fields. Whether it is long-term, plateau performance, vertical take-off and landing or modular design, CW-15 have shown a strong strength.
