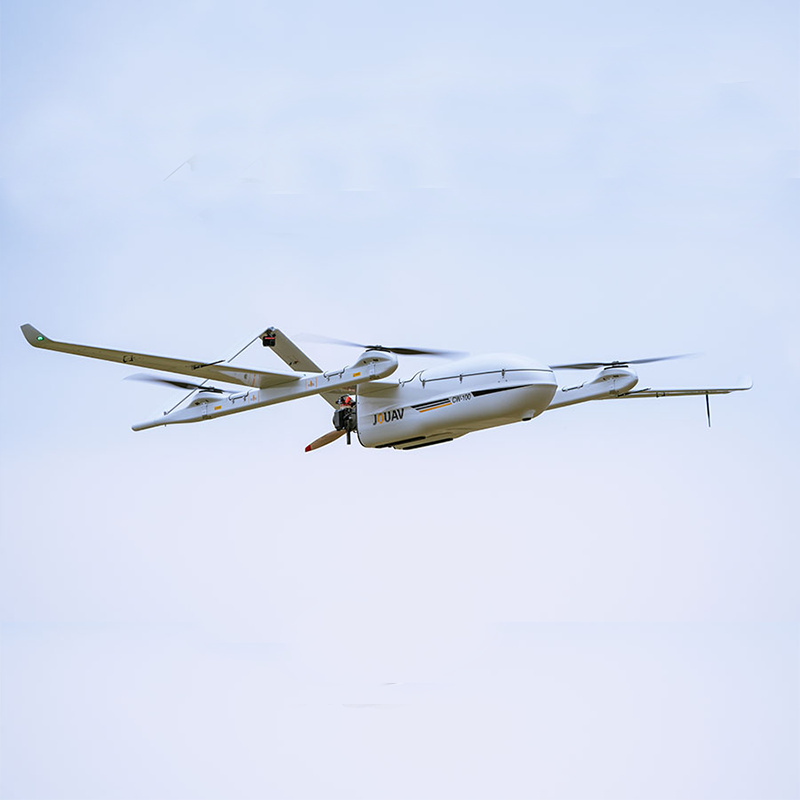

JOUAV CW-100 heavy load hybrid vertical take-off and landing fixed-wing UAV

JOUAV CW-100 UAV is the 1 all-round aviation UAV with excellent performance and powerful functions. The following is a detailed evaluation of it:

Payload: The payload of CW-100 UAV can reach 20kg (some versions such as the second generation can be increased to 25kg), and multiple sensors can be integrated at the same time according to mission requirements to meet diversified operation requirements.

Load life: the battery life can reach 4~8 hours (the second generation can exceed 10 hours), the operation efficiency is high, suitable for large-scale, long-term reconnaissance and mapping tasks.

Flight speed: The cruising speed reaches 100 km/h, and it can quickly reach the designated area to perform tasks.

Wind resistance: The maximum wind resistance level reaches 7, which can maintain a stable flight state in bad weather conditions.

The service ceiling and take-off altitude: the service ceiling is 4500m, and the highest take-off altitude is 3800m, which is suitable for complex terrain environment such as plateau and alpine.

Fully autonomous flight: with fully autonomous flight capability, it can fly autonomously according to the preset route, reducing the burden on the operator.

RTK fixed-point take-off and landing: RTK technology is used to realize fixed-point take-off and landing, and improve the accuracy and safety of take-off and landing.

Precision navigation: Integrated high-precision navigation system to ensure accurate positioning during flight.

Modular design: Modular design is adopted for quick replacement of load modules to meet the needs of different tasks.

Emergency communication reconnaissance: it can carry a variety of equipment such as satellite communication and photoelectric pods to realize beyond-the-horizon communication support and disaster reconnaissance.

Surveying and mapping operations: equipped with laser radar, synthetic aperture radar and other surveying and mapping equipment, can complete high-precision surveying and mapping operations.

Shadow operations: participate in weather modification operations, such as rainfall catalysis, to provide strong support for meteorological departments.

Smart flood prevention: Integrate multi-sensor coordination and three-dimensional monitoring equipment to build a smart flood prevention emergency command platform to improve the efficiency and level of river and lake inspection and monitoring.

Easy to carry: The body design is reasonable, easy to carry and transport.

After-sales service: provide equipment insurance and third party liability insurance and other after-sales service protection.

In summary, JOUAV CW-100 UAV has become the 1 highly respected industrial-grade UAV product for its excellent load and endurance, excellent flight performance, rich functional characteristics and a wide range of applications. Whether it is emergency communication reconnaissance, surveying and mapping operations or shadow operations and other fields, CW-100 have shown a strong strength and a wide range of application prospects.

The detailed parameters of JOUAV CW-100 UAV are as follows:

Type: large load long duration oil-electric hybrid medium-sized unmanned aerial vehicle platform

Body length: 3.03~3.1m (different sources of data slightly different)

Wingspan: 5.15~5.4m (slightly different data from different sources)

Maximum takeoff weight: 105~120kg (different versions or configurations may vary)

Task load: ≤ 20kg (some versions or configurations may be improved)

Endurance: 240~600 minutes (different loads and flight conditions vary, some promotional materials mentioned up to 10 hours or 600 minutes)

Cruising speed: 100130 km/h (economic cruising speed is usually between 110130 km/h)

Maximum speed: up to 108 km/h (partial version or configuration)

Wind resistance: 7 (that is, the wind speed between 13.9~17.1 m/s)

Service ceiling: 4500m

Takeoff altitude: ≥ 3500m

Radio link range: 100km (200km optional for some versions or configurations)

take-off and landing mode: vertical take-off and landing, greatly reducing the dependence on the terrain, adapt to most places

Positioning accuracy:

Vertical positioning accuracy: 3cm

Horizontal positioning accuracy: 1cm 1ppm

Navigation and control system: Integrated DGPS RTK/PPK technology for high-precision navigation and positioning

Ground station software: CWCommander, etc. for flight planning, data collection, processing and analysis

Optional payload: including but not limited to professional aerial camera (such as RS-1000, 0.1 billion half frame camera), dual optical pod (such as MG-200L), lidar (such as JoLiDAR series), synthetic aperture radar (such as MiniSAR), etc.

The size of the load compartment: 840 × 420 × 380mm, and the operating opening width of the task load compartment is greater than 420mm, which can be perfectly adapted to diversified operating environments.

Modular design: easy to quickly change the load module, adapt to different task requirements

Carrying case size: may vary according to the specific configuration and load, such as 2200 × 600 × 800mm(2) or 1050mm × 420mm × 280mm, etc.

Accessories: remote control (such as JOUAV®TC-101 remote control, 1000 meters remote control distance, built-in battery life greater than 6 hours), etc.

Intelligent functions: may include multi-sensor technology, control distribution reconfiguration technology, full digital bus avionics technology, full closed-loop health monitoring and management technology, etc. (depending on version and configuration)

Convenience design: May include mechanical arm plug-in design, unified load electrical interface, task load interface using open mechatronic sliding quick release design, etc. (depending on version and configuration)

In summary, the JOUAV CW-100 UAV is the 1 industrial-grade UAV product with excellent performance and powerful functions, suitable for a variety of application scenarios and mission requirements. In practical applications, please select the appropriate version and configuration according to specific requirements and scenarios.
