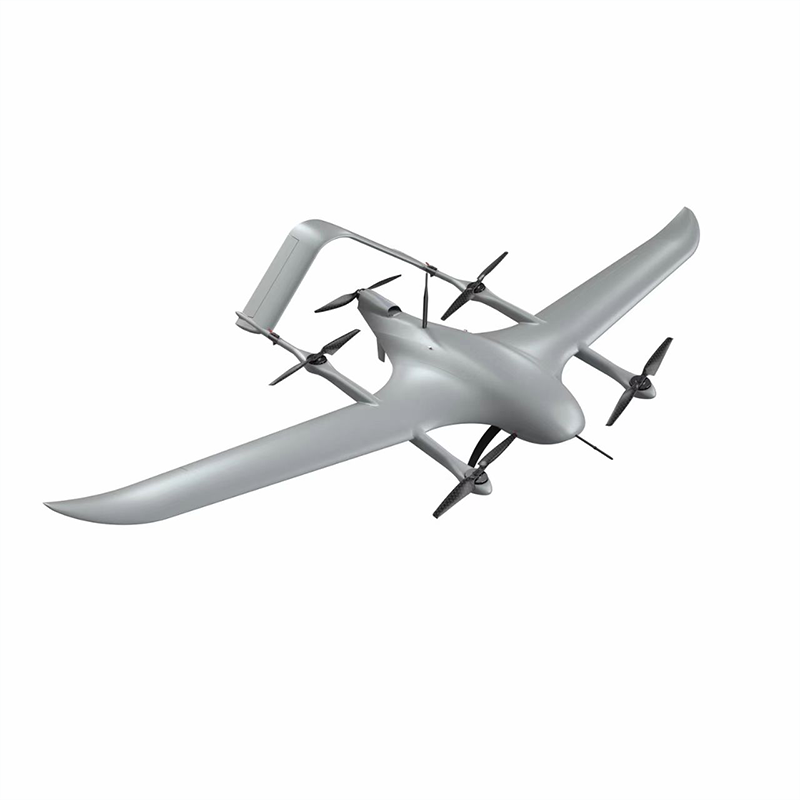

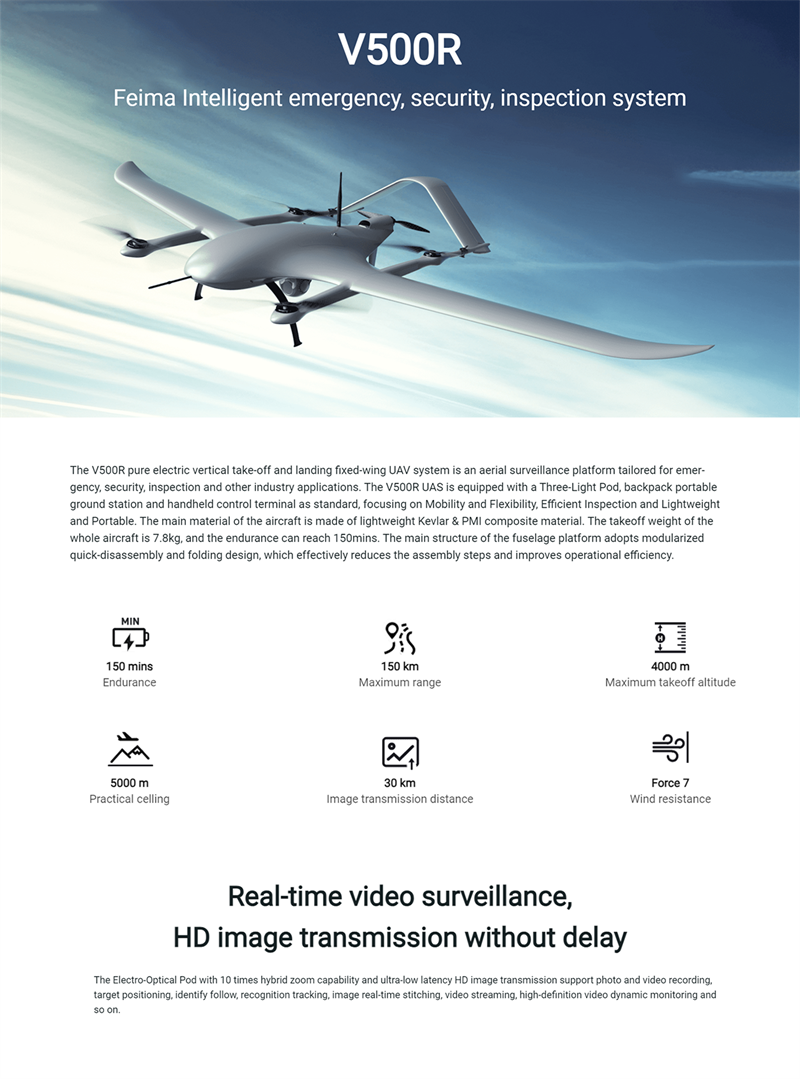

FEIMA ROBOTICS intelligent inspection system V500R fixed wing UAV

The parameter configuration of FEIMA ROBOTICS V500R fixed-wing UAV is quite excellent. The following are its detailed parameters:

1.basic specifications

Type: Pure electric vertical take-off and landing fixed-wing unmanned aerial vehicle system

Maximum takeoff weight: 7.8kg

Wingspan: 2296mm

Captain: 1280mm

Stop height: 257mm

2.power system

Battery and life: Up to 150 minutes of battery life for long-term operations

3.flight performance

Cruising speed: 18 m/s, providing stable flight speed

Maximum speed: 26 m/s, meet the needs of fast response and efficient operation

Maximum range: 150km, covering a wide operating area

Landing altitude: 4000m, adapt to the working environment in plateau area

Service ceiling: 5000m, with high altitude operation capability

Working temperature:-20 ℃ ~ 50 ℃, adapt to a variety of climatic conditions

4.load and sensor

Standard load: three-light pod (may include visible light, infrared, laser and other sensors), providing multi-spectral imaging capabilities

Ground station and hand-held control terminal: standard backpack portable ground station and hand-held control terminal, convenient for field operation and monitoring

5.other features

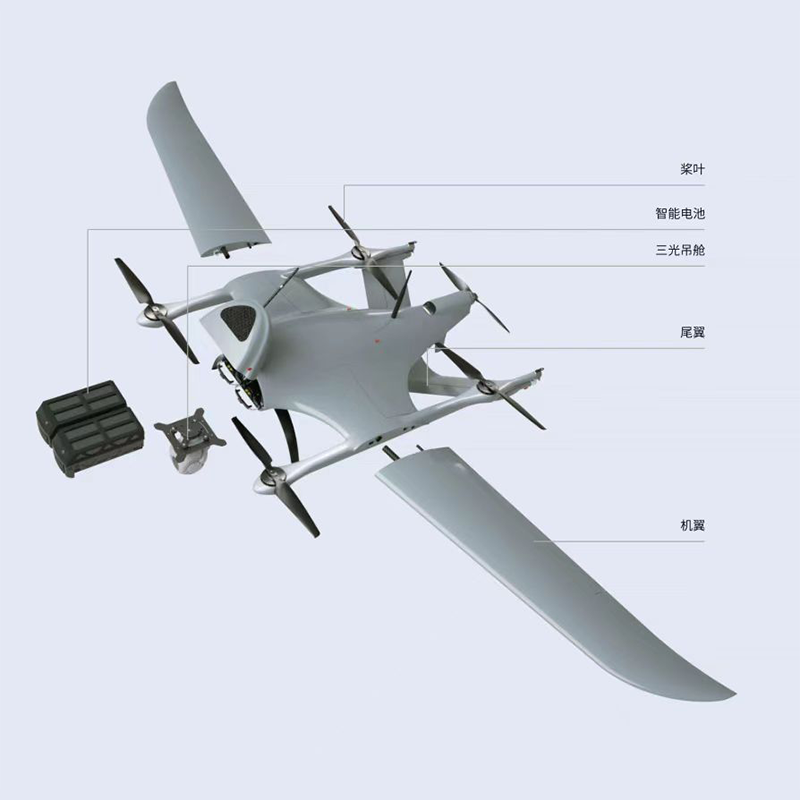

Modular design: the main structure of the fuselage platform adopts modular quick disassembly and folding design, which is easy to carry, transport and quickly deploy

Vertical take-off and landing capability: with vertical take-off and landing function, no runway or catapult, can be flexible in small space or complex terrain

Real-time data transmission and processing: support real-time data transmission and processing functions, can be real-time flight data back to the ground station for processing and analysis

Application scenarios: Designed for emergency, security, inspection and other industrial applications, providing efficient and flexible air surveillance solutions

In summary, the FEIMA ROBOTICS V500R fixed-wing UAV exhibits high performance, high reliability and versatility in parameter configuration. Its lightweight design, long endurance, high-precision positioning and mapping capabilities, and vertical take-off and landing capabilities make V500R have a wide range of applications in emergency, security, inspection and other fields.
