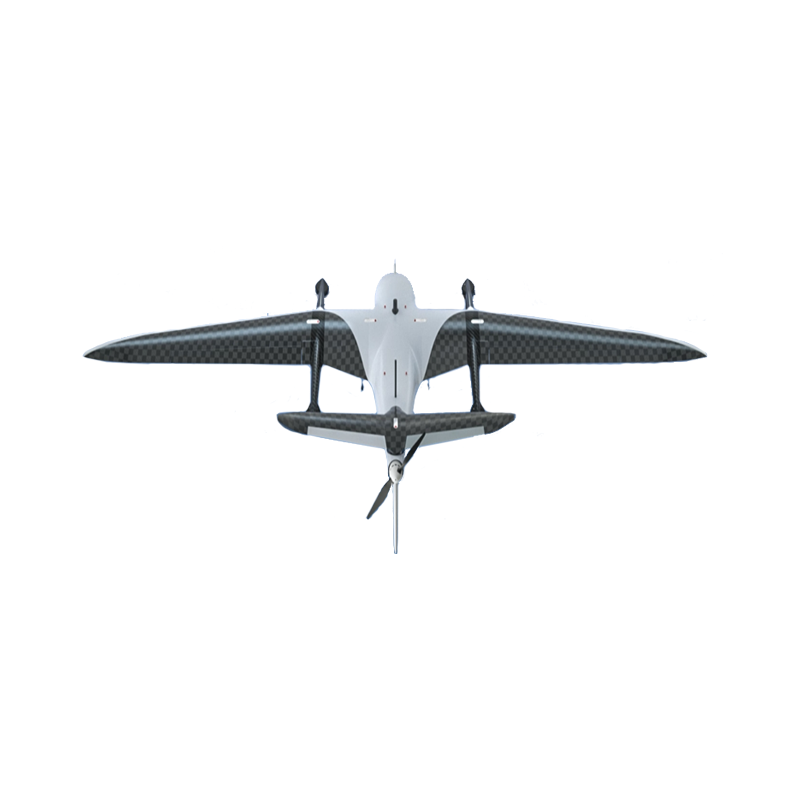

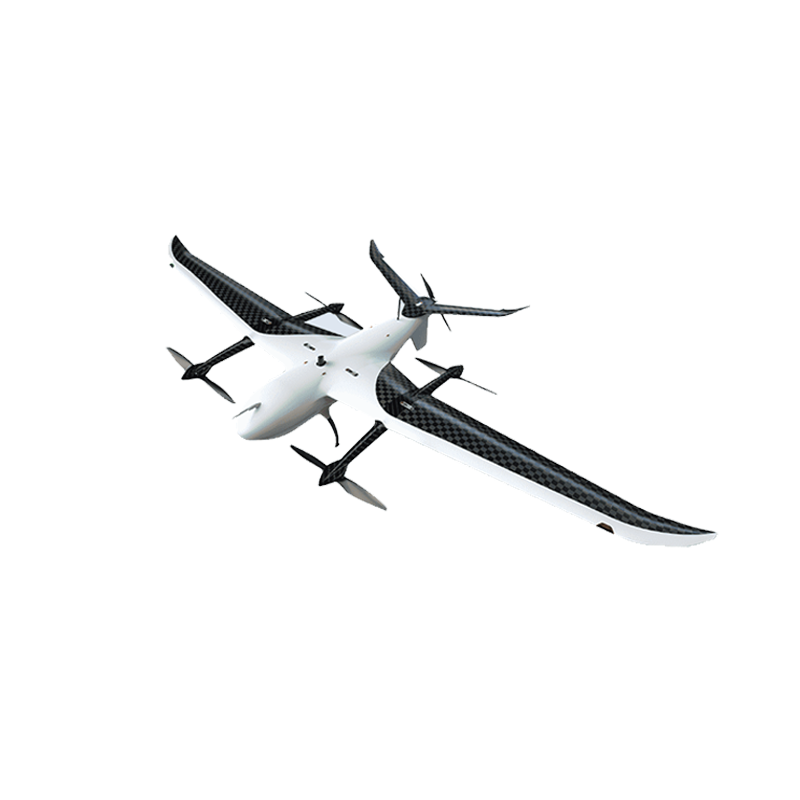

FEIMA ROBOTICS intelligent inspection system V10R fixed wing UAV
Logistics information
Technical Features
FEIMA ROBOTICS V10R fixed-wing UAV is the 1 high-performance and multi-functional UAV system. The following is a detailed evaluation of it:
Excellent 1. performance
Vertical take-off and landing capability: V10R adopts vertical take-off and landing design, which can take off and land flexibly in a narrow space without runway or catapult, improving the applicability and flexibility of UAV.
Long battery life: The V10R has a battery life of up to 150 minutes (with a 6kg load), which can meet the needs of long-term and large-scale inspection tasks.
Large load capacity: The maximum load weight of the V10R is 6kg, and it can mount a variety of task loads, such as photoelectric pods, aerial survey modules, tilt modules, etc., to meet a variety of application requirements.
- versatility
Multiple task loads: V10R supports mounting different types of loads for multi-source data acquisition. It can not only mount photoelectric pods for real-time monitoring and video image data acquisition of the target area, but also carry aerial survey modules and tilt modules to realize traditional surveying and mapping and natural disaster emergency surveying and mapping.
High-definition image transmission and monitoring: V10R is equipped with high-definition image transmission system, supports real-time video transmission and monitoring, and can realize high-definition video real-time monitoring, target positioning, photo forensics and other functions with 30 times optical zoom capability.
AI intelligent recognition: V10R has airborne AI intelligent recognition function, which can lock the target of interest and guide the aircraft to follow the flight automatically, improving the intelligent level and operation efficiency of the UAV.
- safe and reliable
Multiple safety mechanisms: V10R is equipped with multiple safety mechanisms, such as low battery protection, lost connection automatic return, strong wind automatic return, etc., to ensure the safety of flight.
High-precision navigation system: V10R integrates high-precision differential GNSS board, GNSS navigation system, millimeter wave radar, visual perception system and other sensors to improve the accuracy and stability of flight.
- efficient operation
Accurate route planning: V10R supports accurate route planning, which can improve operation efficiency and reduce invalid flight time.
Multi-terminal networking: V10R supports multi-terminal networking function. The control rights of each station control terminal to the aircraft can be seamlessly connected, and the control mode is flexible, which can meet the personalized requirements of long-distance channel inspection.
Wide range of 5. applications
V10R is suitable for emergency, security, inspection, surveying and mapping and other fields, such as forest fire protection, pipeline inspection, maritime inspection, highway inspection, water supervision and so on, and has a wide range of application prospects.
To sum up, FEIMA ROBOTICS V10R fixed-wing UAV has performed well in performance, versatility, safety and reliability, efficient operation and application fields. It is the 1 high-performance UAV system worthy of recommend.
Performance
The parameter configuration of FEIMA ROBOTICS V10R fixed-wing UAV is quite comprehensive. The following is the detailed parameter configuration sorted out according to multi-party information:
- basic specifications
Captain: 1750mm
Wingspan: 4150mm
Height: 700mm
Take-off weight: 25kg
Number of motors: 5
- power system
Drive mode: electric
Endurance: up to 150 minutes when mounting a 6kg load (the specific time may be affected by the actual use environment and load)
- flight performance
take-off and landing mode: automatic vertical take-off and landing
Cruising speed: 20 m/s (or expressed as 72 km/h)
Service altitude ceiling: 7500m
Control distance: 50km or 100km (may vary depending on configuration or communication conditions)
- load system
Load type: support mounting photoelectric pod, aerial survey module, tilt module and other loads
Load capacity: maximum load 6kg
- navigation system
Integrated system: high-precision differential GNSS board, GNSS navigation system, millimeter wave radar, visual perception system, etc.
Positioning accuracy: with high-precision positioning capabilities to meet a variety of application requirements
- other features
AI intelligent recognition: with airborne AI intelligent recognition function, it can lock the target of interest and guide the aircraft to follow the flight automatically.
Multi-source data acquisition: supports multi-source data acquisition by mounting different types of loads to meet the application requirements of emergency, security, patrol inspection and traditional aerial survey.
Edge flash processing: It can be equipped with high-performance computing machine to meet the requirements of edge flash transmission and edge display, and realize fast data modeling and processing.
- Application Scenarios
Emergency response: personnel rescue, decision support, disaster assessment, etc.
Security: security inspection, regional security, investigation and evidence collection, etc.
Inspection: power line inspection, pipeline inspection, maritime inspection, etc.
Aerial survey: traditional surveying and mapping, natural disaster emergency surveying and mapping, etc.
In summary, the FEIMA ROBOTICS V10R fixed-wing UAV exhibits high performance, high reliability and versatility in parameter configuration, and is suitable for a variety of application scenarios and requirements.
