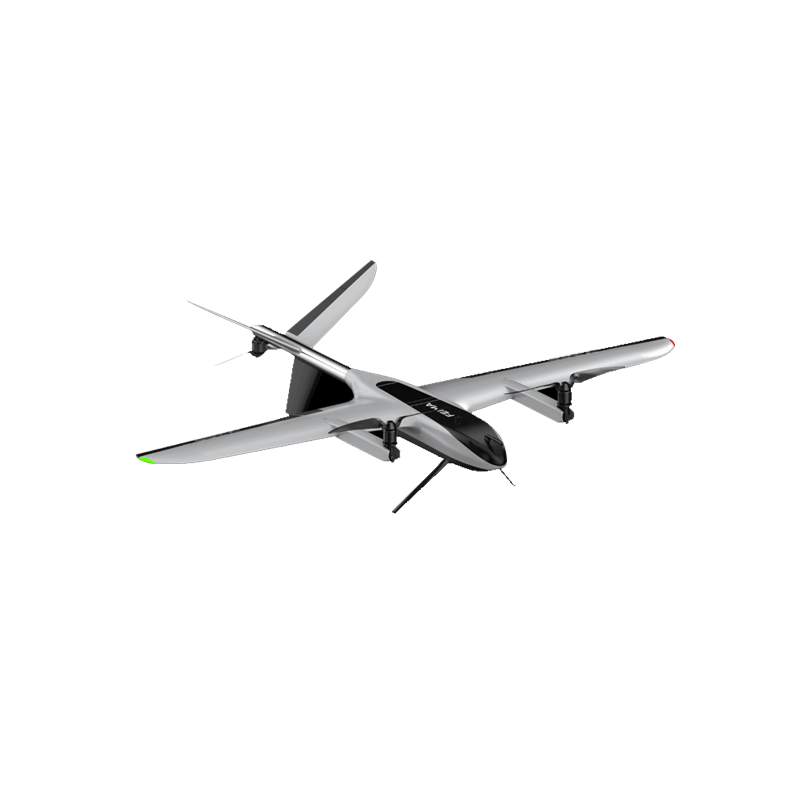

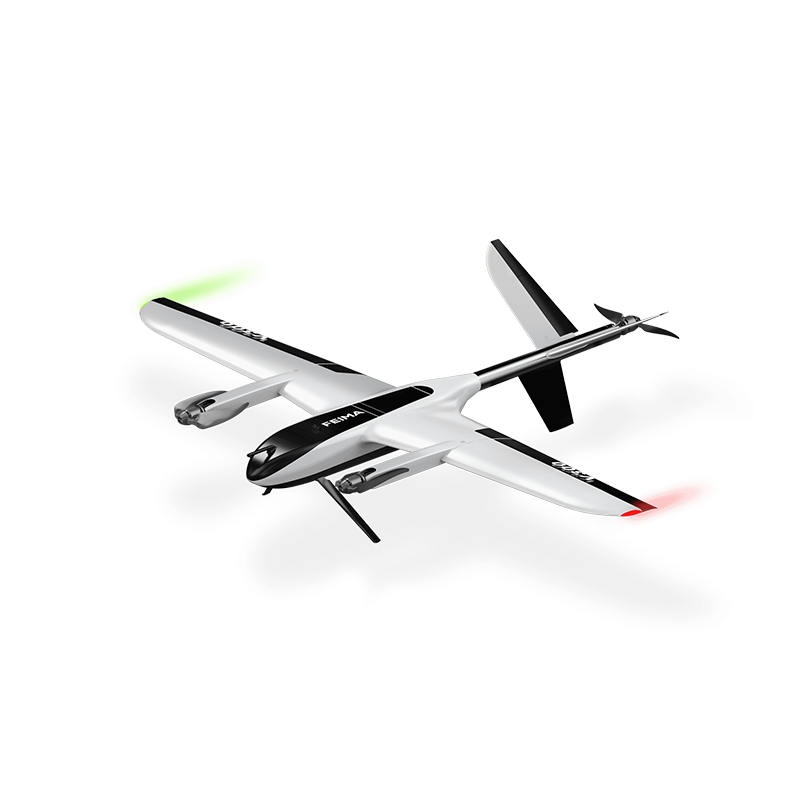

FEIMA ROBOTICS intelligent inspection system V100/V200/V300/V500 fixed wing UAV

FEIMA ROBOTICS FEIMA ROBOTICS V series fixed-wing UAVs have performed well in aerial survey, remote sensing, inspection and other fields. The following is a detailed evaluation of this series of UAVs:

Strong 1. performance, wide application

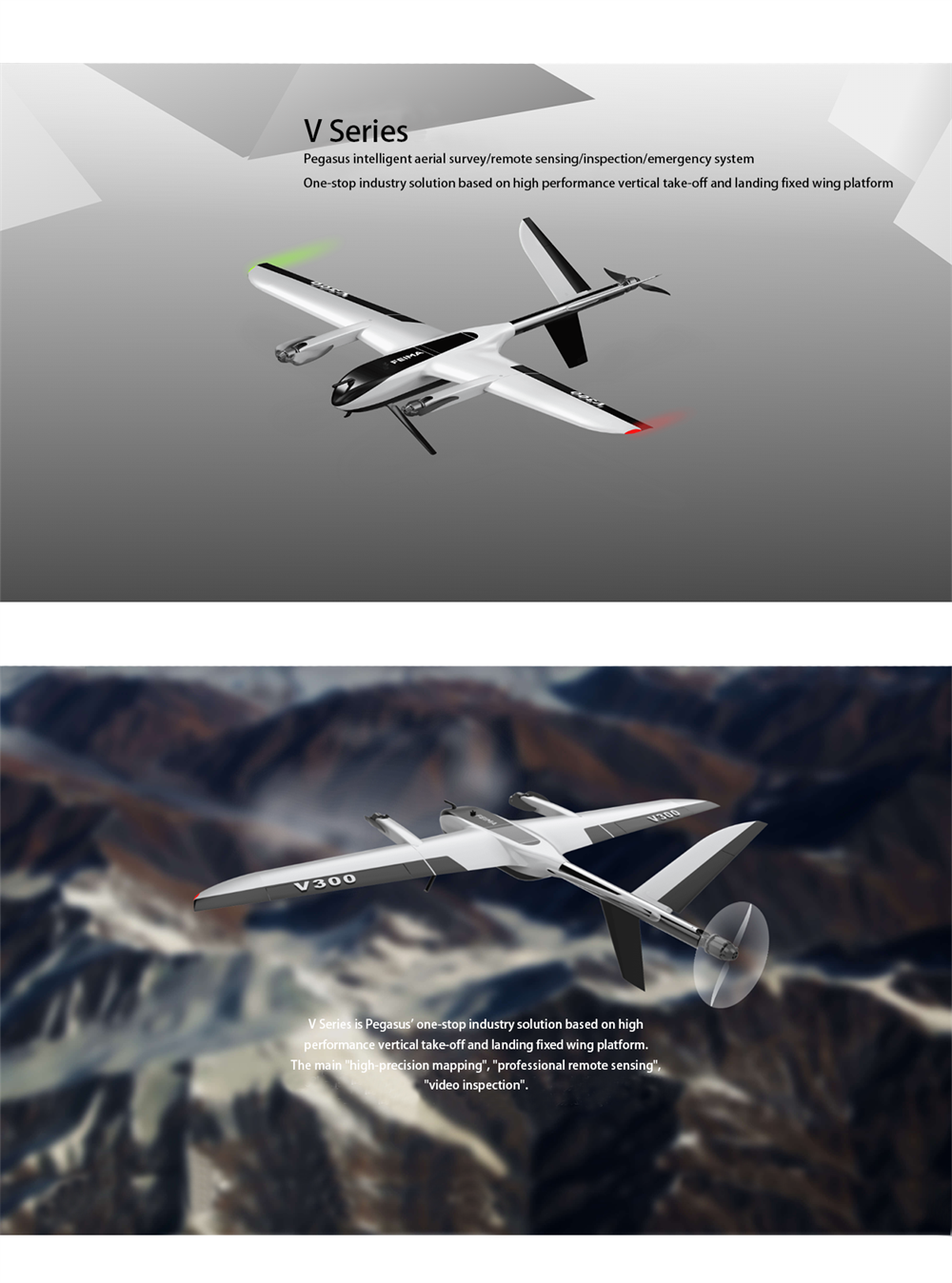

The V-series fixed-wing UAV is based on a high-performance vertical take-off and landing fixed-wing platform, featuring "high-precision mapping", "professional remote sensing" and "video patrol". Its endurance is as long as 90 minutes (some models such as V500 can reach 180 minutes), its takeoff weight is moderate (e.g. 8.5kg for V100 and 7.2kg for V500), and its standard load is 1kg. It can carry a variety of sensor modules, including aerial survey module, tilt photography module, thermal infrared remote sensing module, etc., realizing multiple functions of one machine and meeting diversified data acquisition requirements.

2.vertical take-off and landing, easy to operate

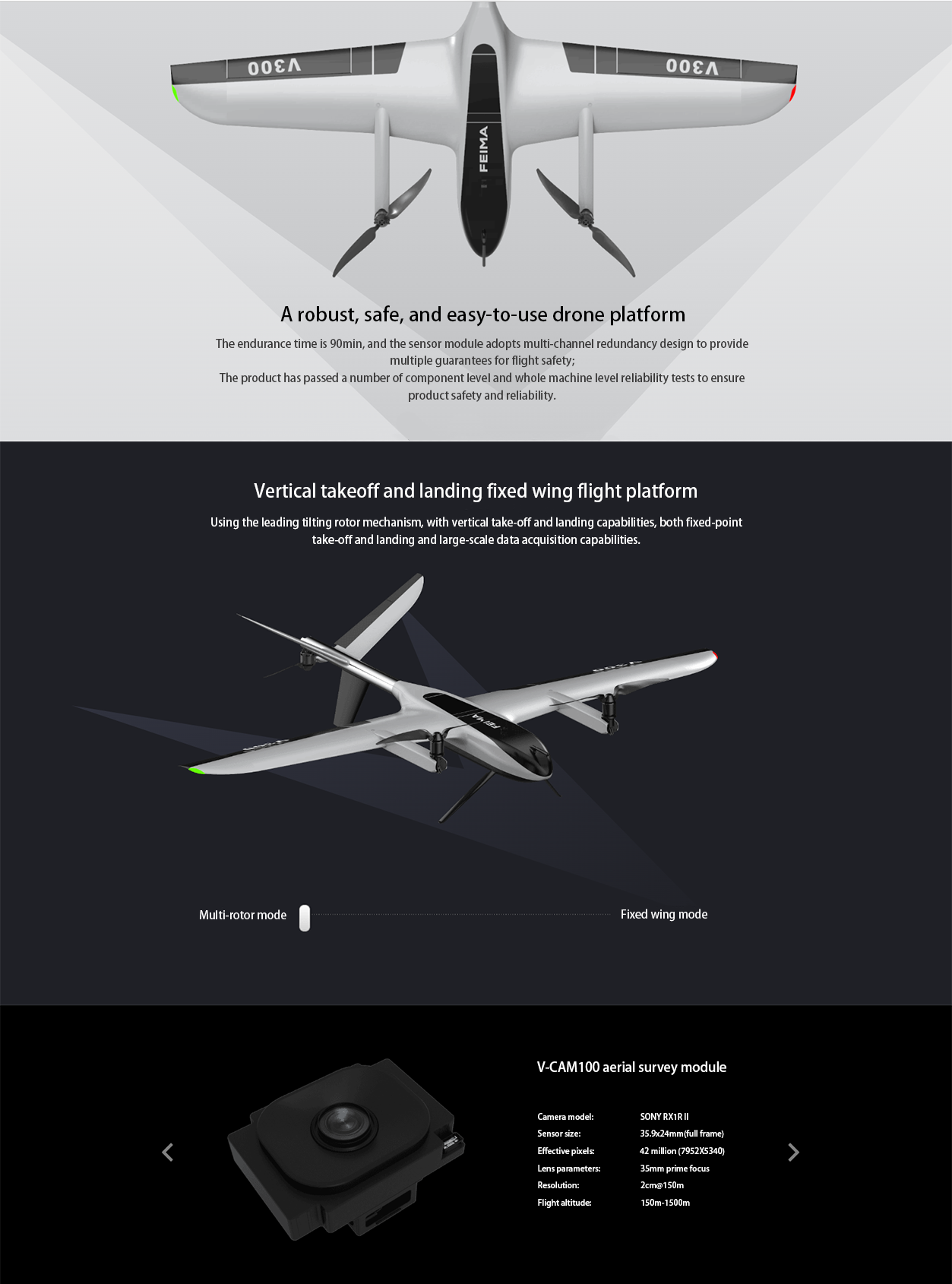

V series UAVs adopt leading tilt rotor mechanism, with vertical take-off and landing capability, taking into account fixed-point take-off and landing and large-scale data acquisition capability. This design makes the UAV easy to take off and land in complex terrain and limited space, greatly improving the flexibility and convenience of operation.

3.high-precision data acquisition

V-series unmanned aerial vehicles are equipped with high-precision differential GNSS boards, which support PPK, RTK and their fusion operation modes, as well as POS-assisted air 3 technology, and can realize 1:500 mapping without image control. At the same time, the sensor modules adopt multi-channel redundant design to provide multiple guarantees for flight safety. These technologies ensure that the UAV can obtain high-precision and high-quality data during operation.

4.intelligent software support

V series unmanned aerial vehicles are equipped with professional ground station software, such as "unmanned aerial vehicle butler professional version" and "unmanned aerial vehicle master", these software support a variety of route planning, real-time video return, target latitude and longitude coordinate measurement and other functions, making unmanned aerial vehicle operation more intelligent and efficient. At the same time, these software also supports one-key mapping, one-key export stereo mapping and other data processing functions, greatly shortening the data processing cycle.

Reliable and durable 5., strong adaptability

V-series UAVs have passed a number of component-level and machine-level reliability tests to ensure product safety and reliability. Its body is made of high-strength composite materials, which has good wind resistance and weather resistance. In addition, V series UAVs also have super ceiling operation capability (such as V500 take-off altitude of up to 5000 meters, operation altitude of up to 7000 meters), can adapt to a variety of complex environments and operation requirements.

In summary, FEIMA ROBOTICS V series fixed-wing UAVs have performed well in terms of performance, ease of operation, data acquisition accuracy, intelligent software support and reliability, and are ideal for aerial survey, remote sensing, inspection and other fields.
