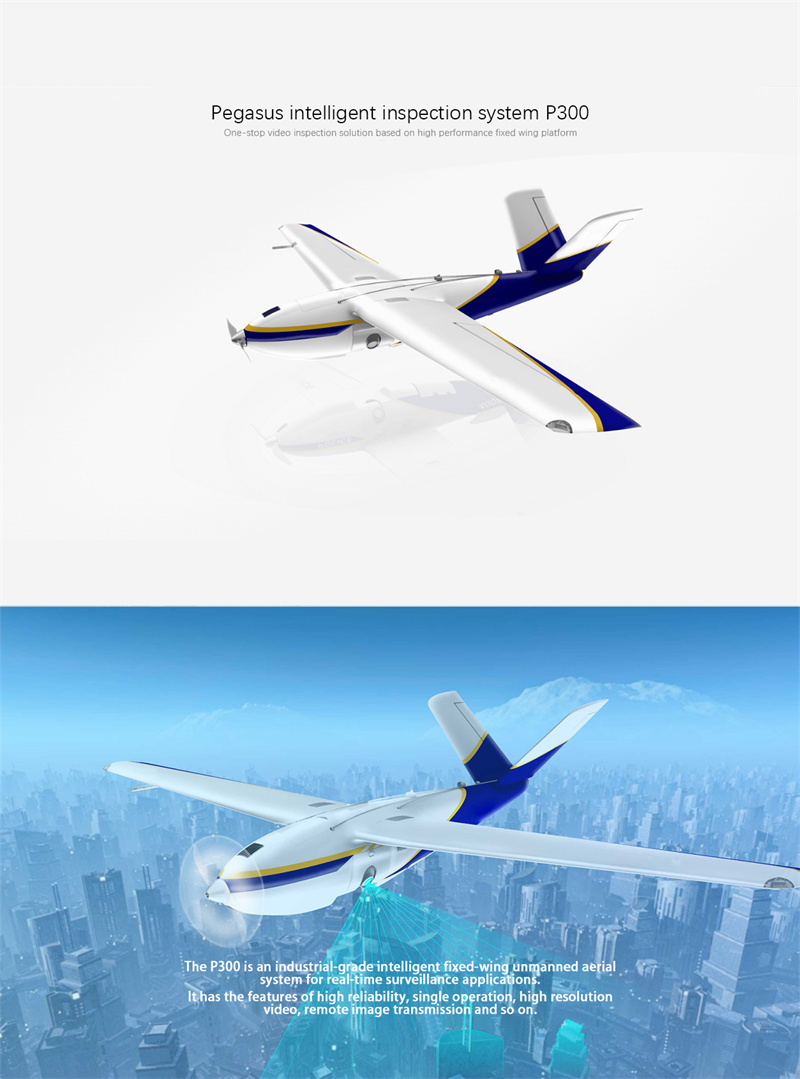

FEIMA ROBOTICS intelligent inspection system P300 fixed wing UAV

FEIMA ROBOTICS P300 fixed-wing UAV is the 1 industrial-grade UAV system designed for battlefield reconnaissance and other application scenarios. The following is a detailed evaluation of it:

1. performance parameters

Airframe design: FEIMA ROBOTICS P300 fixed-wing unmanned aerial vehicle has a total weight of 3.8KG (standard takeoff weight of 3.75KG), a wingspan of 1.8M and a captain of 1.07M, supporting single operation. It is easy to use and transport by hand throwing takeoff and landing/parachute landing mode.

Task load: The task load adopts modular design, standard visible light video load, and has the ability of intelligent tracking of target objects and real-time measurement of target position coordinates. In addition, the thermal infrared video load, orthophoto load, tilt photography load, thermal infrared remote sensing load, etc. can be easily replaced to meet the diversified investigation needs.

Flight performance: P300 supports GPS, BeiDou, GLONASS and other navigation satellites, with a cruise speed of 60 km/h, a maximum operating range of 80km, wind resistance of level 5, and a service ceiling altitude of 6000m (altitude).

2. features

High-resolution video: P300 is equipped with high-resolution video payload, with visible light video resolution of 1080 × 1920 @ 60fps and thermal infrared video resolution of 640 × 512 @ 25fps, which can provide clear and smooth video images.

Long-distance image transmission: UAV is equipped with ground automatic tracking antenna, and the image transmission distance can reach 15km, which can transmit high-definition video data in real time to meet the needs of long-distance investigation.

Data security: FEIMA ROBOTICS P300 focuses on data security, and aircraft data is encoded specifically to enhance confidentiality. It can also be customized to support data encryption standards such as AES128/256 to ensure user data security.

Ground station software: P300 is equipped with "UAV butler" ground station software with rich functions, supporting accurate three-dimensional route planning, three-dimensional real-time flight monitoring and control, intelligent target tracking and continuous monitoring, real-time measurement of target position coordinates and other functions. In addition, it also provides flight data storage and visual playback, point of interest around the flight mode, etc., which is convenient for users to carry out job analysis and target monitoring.

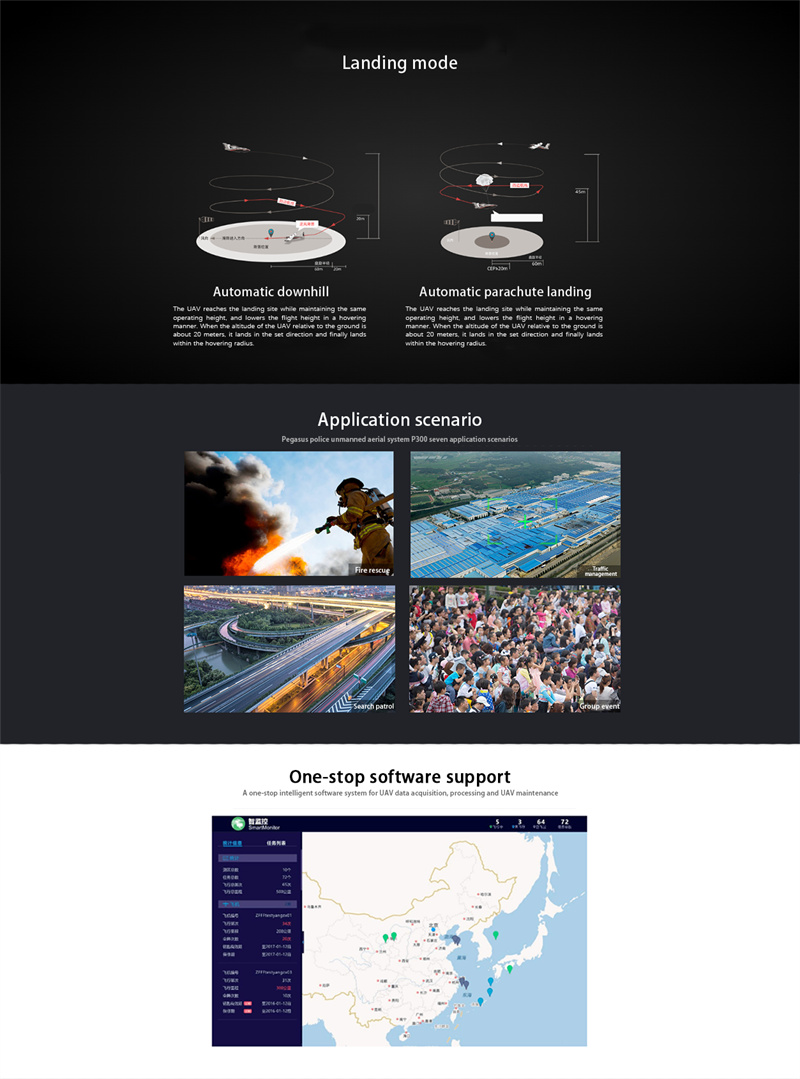

3. Application Scenarios

FEIMA ROBOTICS P300 fixed-wing UAV can be widely used in many aspects, such as drug prohibition, anti-terrorism and stability maintenance, search and patrol, traffic management, fire rescue, group events, rescue and disaster relief, etc. Its high performance, high reliability and diversified detection capabilities make the P300 an important tool in these fields.

4. Summary

In summary, the FEIMA ROBOTICS P300 fixed-wing UAV is the 1 industrial-grade UAV system with excellent performance, rich functions and a wide range of applications. Its high-resolution video, long-distance image transmission, data security and rich ground station software functions make P300 have significant advantages in the fields of investigation and surveillance. Therefore, for users who need high-performance UAS, the FEIMA ROBOTICS P300 is undoubtedly a worthy choice.

The FEIMA ROBOTICS P300 fixed-wing drone performs well in parameter performance. The following is a detailed analysis of its parameter performance:

1. body and weight

Wingspan: 1.8 meters, which provides enough lift and stability to fly in all weather conditions.

Captain: 1.07 meters, the compact design makes the drone more flexible when taking off and landing.

Weight: The total aircraft weight is 3.8kg (standard takeoff weight is 3.75kg), which makes the P300 more convenient to carry and transport.

2. flight performance

Cruising speed: 60 km/h, which allows the drone to cover a large area in a short time.

Maximum operating range: 80 kilometers, which ensures that the drone can operate for a long time in an area far from the take-off point.

Wind resistance: reaching level 5, which means that the P300 can fly stably in harsher weather conditions.

Service ceiling height: 6000 meters (altitude), which allows the drone to operate in high mountains or plateau areas.

3. load and detection capability

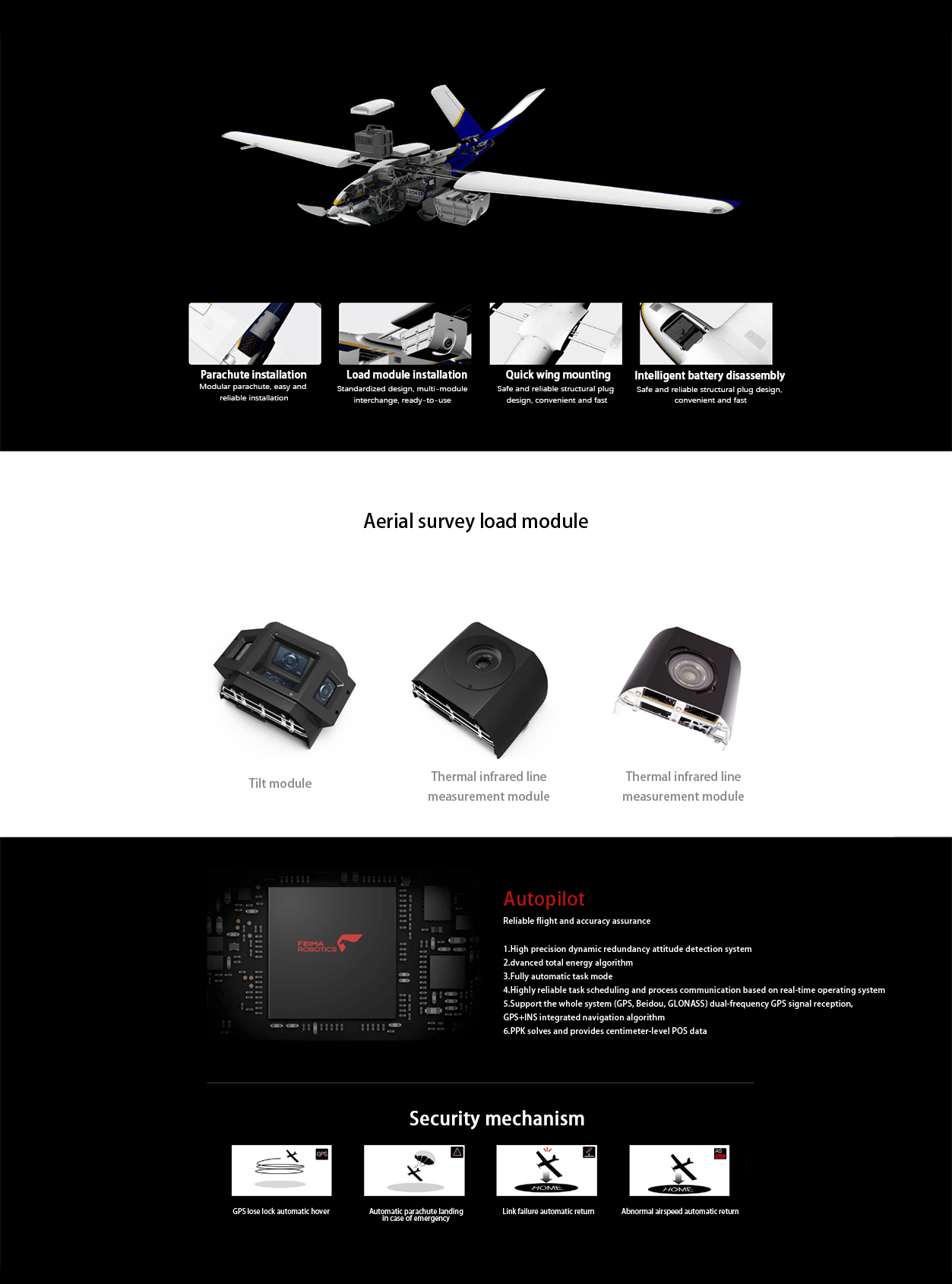

Task load: modular design, standard visible light video load, intelligent tracking of target objects and real-time measurement of target position coordinates. In addition, the thermal infrared video load, orthophoto load, tilt photography load, thermal infrared remote sensing load, etc. can be easily replaced to meet the diversified investigation needs.

Video resolution: Visible video resolution reaches 1080 × 1920 @ 60fps, thermal infrared video resolution is 640 × 512 @ 25fps, providing clear and smooth video images.

4. Image Transmission and Data Security

Image transmission distance: equipped with ground automatic tracking antenna, image transmission distance of up to 15 kilometers, to ensure real-time return of high-definition video data.

Data security: Aircraft data is encoded specifically to enhance confidentiality, and can be customized to support data encryption standards such as AES128/256 to ensure user data security.

5. ground station software

Rich functions: support accurate three-dimensional route planning, three-dimensional real-time flight monitoring and control, target intelligent tracking and continuous monitoring, real-time measurement of target position coordinates and other functions.

Convenient operation: provide flight data storage and visual playback, point of interest around the flight mode, etc., convenient for users to carry out job analysis and target monitoring.

In summary, the FEIMA ROBOTICS P300 fixed-wing UAV performs well in parameter performance, with excellent flight performance, strong reconnaissance capabilities, reliable data security, and convenient ground station software operation. This makes the P300 work well in a variety of application scenarios.
