FEIMA ROBOTICS intelligent inspection system F1000 fixed wing UAV
Logistics information
Technical Features
The FEIMA ROBOTICS F1000 fixed-wing UAV (Pegasus F1000 UAV) is the 1 outstanding industrial-grade aerial survey UAV system. The following is a detailed evaluation of it:
- performance
Design features:
F1000 adopts modular design, so that the wing, tail, battery compartment, umbrella compartment, camera compartment and other components can be quickly disassembled and assembled, without tools, a single person can complete the operation, greatly improving the efficiency of the operation.
The main body of the fuselage adopts carbon fiber structure, which enhances the strength of the whole machine and ensures the consistency and reliability of the large-scale production of the product.
Flight parameters:
The wingspan is moderate (specific values may vary due to product iteration, but usually remain within a certain range), suitable for a variety of flight environments.
The takeoff weight is light, easy to carry and transport.
The cruising speed is fast, which can quickly cover a large area and improve the operation efficiency.
The maximum endurance time is longer, which can meet the needs of long-term aerial survey tasks.
Intelligent level:
F1000 supports automatic take-off and landing without remote control, reducing the difficulty of operation and improving safety.
Equipped with high-precision GNSS board, support PPK operation mode, can provide high-precision positioning data.
Equipped with "UAV butler" one-stop aerial survey software solution, simplify the mission planning, flight control, data processing and other processes.
- lens carrying and shooting ability
F1000 can be equipped with high-performance cameras (such as Sony alpha 5100, etc.), with high pixels and excellent image quality. By carrying different lenses, it can meet different needs of aerial survey and shooting. For example, it can be equipped with a wide-angle lens for large-area aerial photography, or a telephoto lens for long-distance target observation.
- application areas and advantages
Application areas:
F1000 is widely used in land detection, urban planning, topographic mapping, environmental monitoring and other fields. In these areas, the UAV can efficiently complete a variety of complex aerial survey and shooting tasks.
Advantages:
F1000 features high precision, high reliability and full automation, which can greatly improve operation efficiency and data quality.
The modular design and quick disassembly function make the drone easier to carry and transport, reducing the cost of operation.
The level of intelligence and one-button operation function reduce the difficulty of operation, making it easy for non-professionals to get started.
- Summary
In summary, the FEIMA ROBOTICS F1000 fixed-wing UAV is the 1 outstanding and powerful industrial-grade aerial survey UAV system. It has the characteristics of high precision, high reliability and full automation, and can be widely used in many fields to provide efficient and accurate aerial survey and shooting services for users in related industries. At the same time, its modular design and rapid disassembly function also make the UAV more convenient to carry and transport, reducing the cost of operation. Therefore, the F1000 is the 1 outstanding UAV product worth recommend.
Performance
The following are the detailed parameters of FEIMA's ROBOTICS F1000 fixed-wing UAV, including information such as endurance duration and available lenses:
- basic parameters
Type: Fully automatic take-off and landing industrial-grade aerial survey UAV system
Material: EPO carbon fiber composite material
Wingspan: 1.6m (or may vary depending on product iteration)
Captain: 1.1m
Takeoff weight: 3kg (or different according to configuration)
- endurance
Maximum battery life: 1.5 hours (I. e. 90 minutes), these 1 parameters enable the F1000 to work continuously in the air for a long time and cover a large working area.
- can carry the lens
Camera compatibility: F1000 supports a variety of high-precision cameras to meet the needs of different aerial survey and shooting tasks.
Lens type: Although the specific lens model may vary depending on product iteration or user customization, the F1000 can usually carry a lens with high pixels and excellent image quality. These lenses may include wide-angle lenses, standard lenses, telephoto lenses, etc. to suit different shooting scenarios and target distances.
Lens interface: The F1000's camera compartment is designed with a standard lens interface, which can easily install and remove the lens.
- other performance parameters
Power mode: electric
Cruising speed: 60 km/h
Measurement and control radius: 10km
Wind resistance: Level 5
Takeoff mode: automatic takeoff without remote control (such as hand-thrown takeoff)

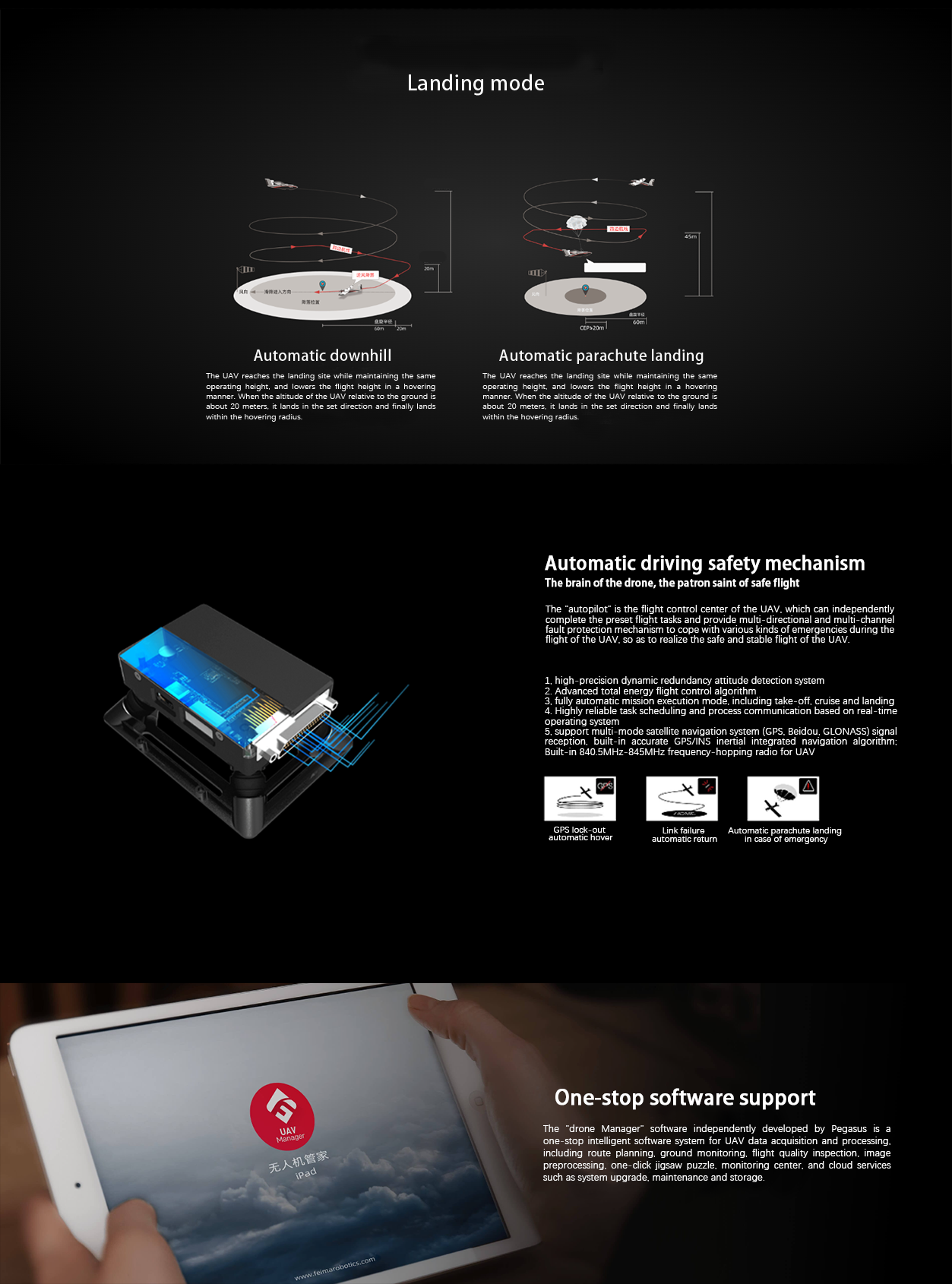

Recycling mode: support automatic parachute, sliding and other recovery mode
- additional features

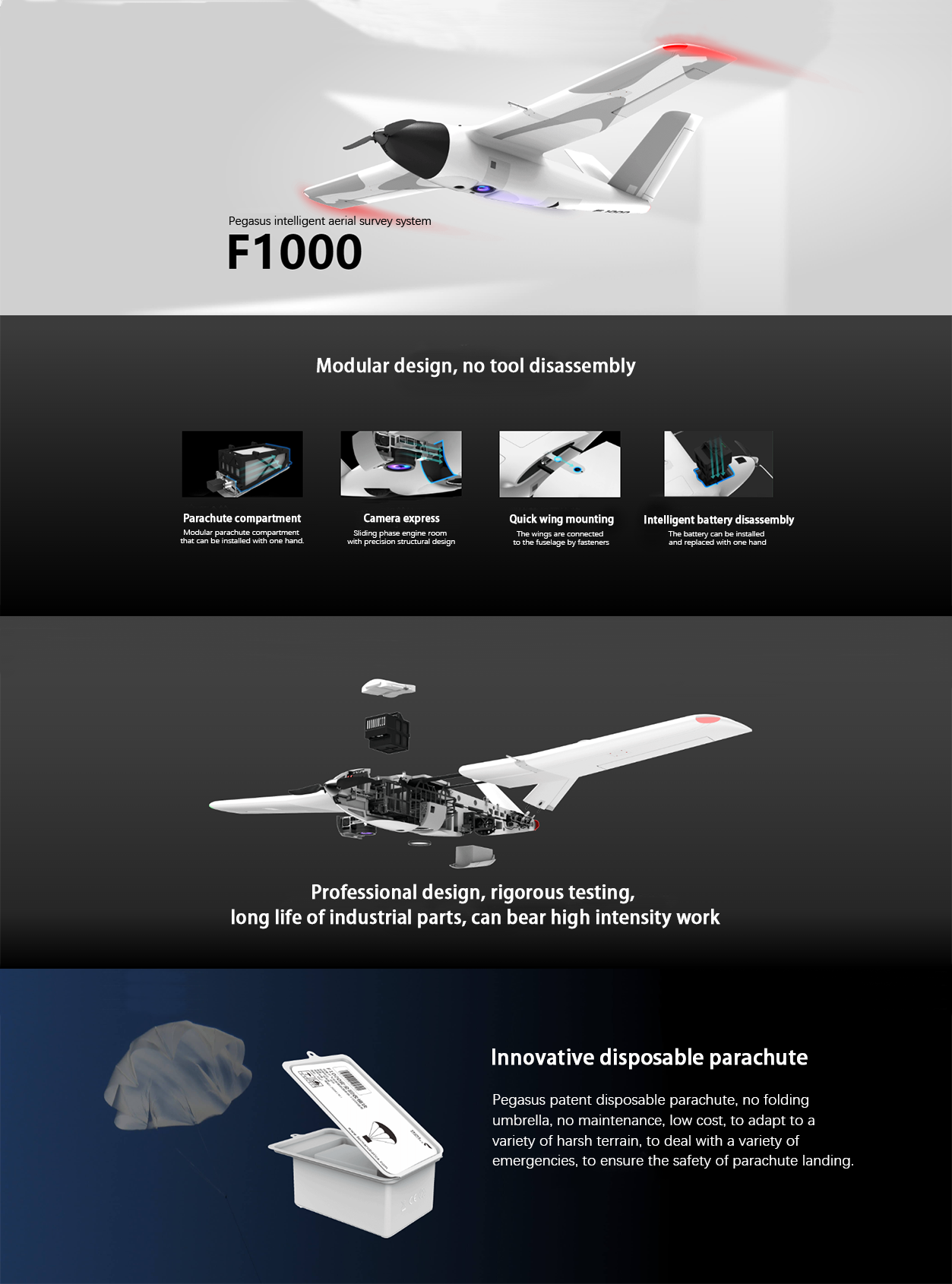

Modular design: F1000 adopts modular design, which makes the wing, tail wing, battery compartment, umbrella compartment, camera compartment and other components can be quickly disassembled and assembled without tools, and a single person can complete the operation preparation, thus improving the operation efficiency.
High-precision GNSS board: Equipped with high-precision GNSS board with 50Hz or higher frequency, supports RTK/PPK fusion operation mode, and can provide high-precision positioning data.
UAV butler software: equipped with "UAV butler" one-stop aerial survey software solution, simplifying mission planning, flight control, data processing and other processes.
In summary, the FEIMA ROBOTICS F1000 fixed-wing drone performs well in terms of endurance, mountable lenses, and other performance parameters. Its modular design and high-precision GNSS board also improve the flexibility and adaptability of the UAV, enabling it to meet the needs of a variety of aerial survey and shooting tasks.
