FEIMA ROBOTICS intelligent inspection system E2000S Multi-rotor UAV
Logistics information
Technical Features
FEIMA ROBOTICS E2000S multi-rotor UAV is the 1 high-performance, high-precision aerial survey UAV. The following is a detailed evaluation of it:
Excellent 1. performance
High-precision positioning: E2000S is equipped with high-precision differential GNSS system, support RTK/PPK and other high-precision positioning technology, can achieve centimeter-level positioning accuracy, to meet the needs of a variety of high-precision aerial survey and 3D modeling.
Long flight time operation: the endurance time is up to several hours (the specific time varies according to the battery status and flight environment), which can meet the long-term and large-scale aerial survey and inspection tasks.
Stable flight: Advanced flight control system and motor technology are adopted to ensure the stability and reliability of the UAV during flight.
Excellent 2. image quality
High-resolution camera: equipped with a high-resolution SONY a6000 camera, with about 24.3 million effective pixels, can shoot clear and delicate images with high color reproduction.
Professional lens: 25mm fixed focus lens, excellent optical performance of the lens, distortion control properly, to ensure the quality of the image taken.
Multiple shooting modes: support ortho and tilt and other shooting modes, to meet the needs of aerial photography in different scenes.
Full-featured 3.

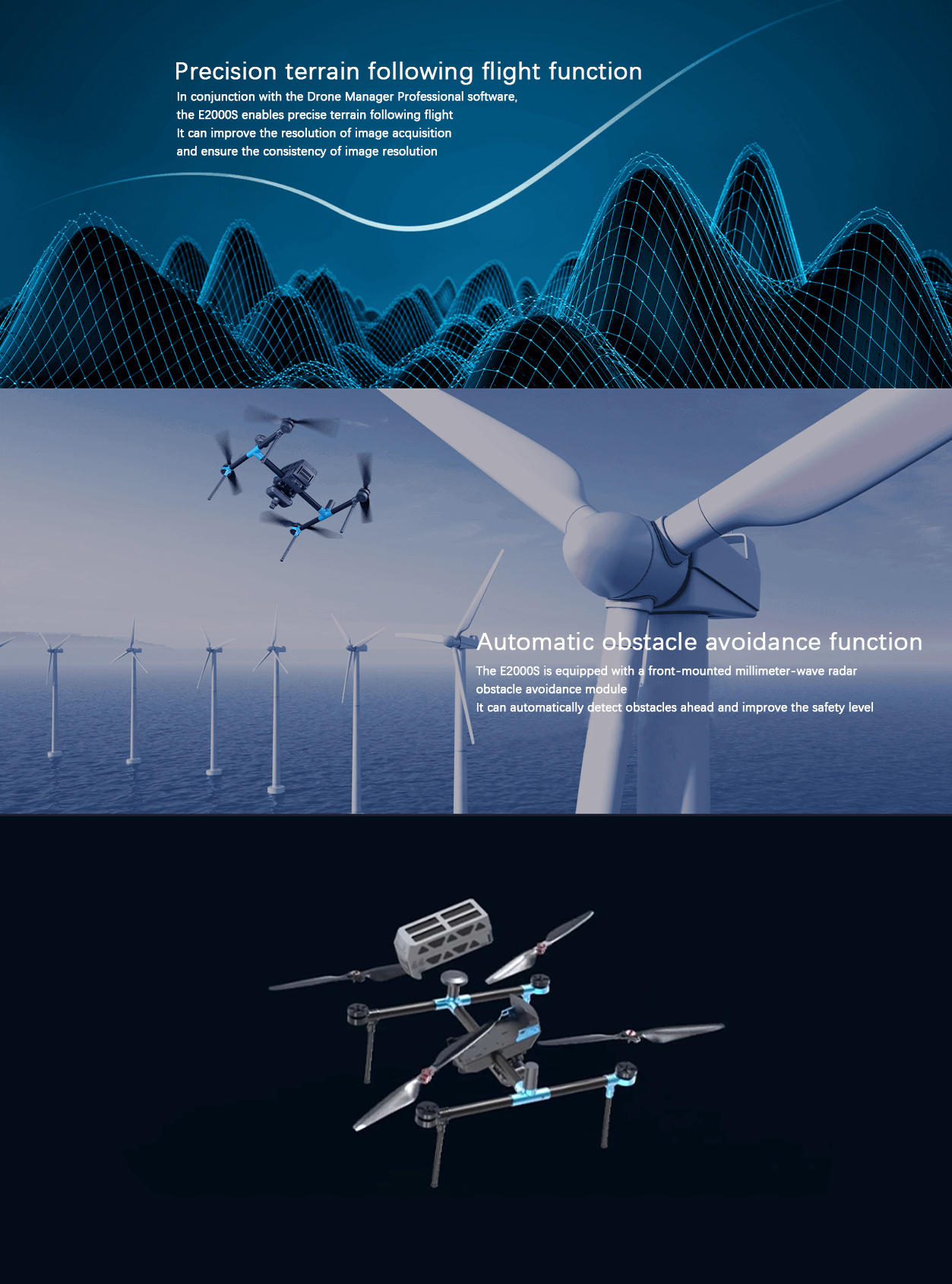

Terrain follow flight: with the professional version of the UAV butler software, E2000S can achieve accurate terrain follow flight, improve image acquisition resolution and ensure the consistency of image resolution.
Automatic obstacle avoidance function: equipped with a front millimeter wave radar obstacle avoidance module, which can automatically detect obstacles in front and improve flight safety level.
Modular design: It supports modular design and can flexibly carry different loads and mission equipment to meet a variety of application requirements.
- intelligent control
UAV butler software: equipped with UAV butler professional software, support route planning, flight monitoring, data processing and other functions, improve operational efficiency and data processing capabilities.
Remote control: Support remote control and monitoring, users can grasp the flight status and operation progress of the UAV in real time through the mobile phone or computer.
- widely used

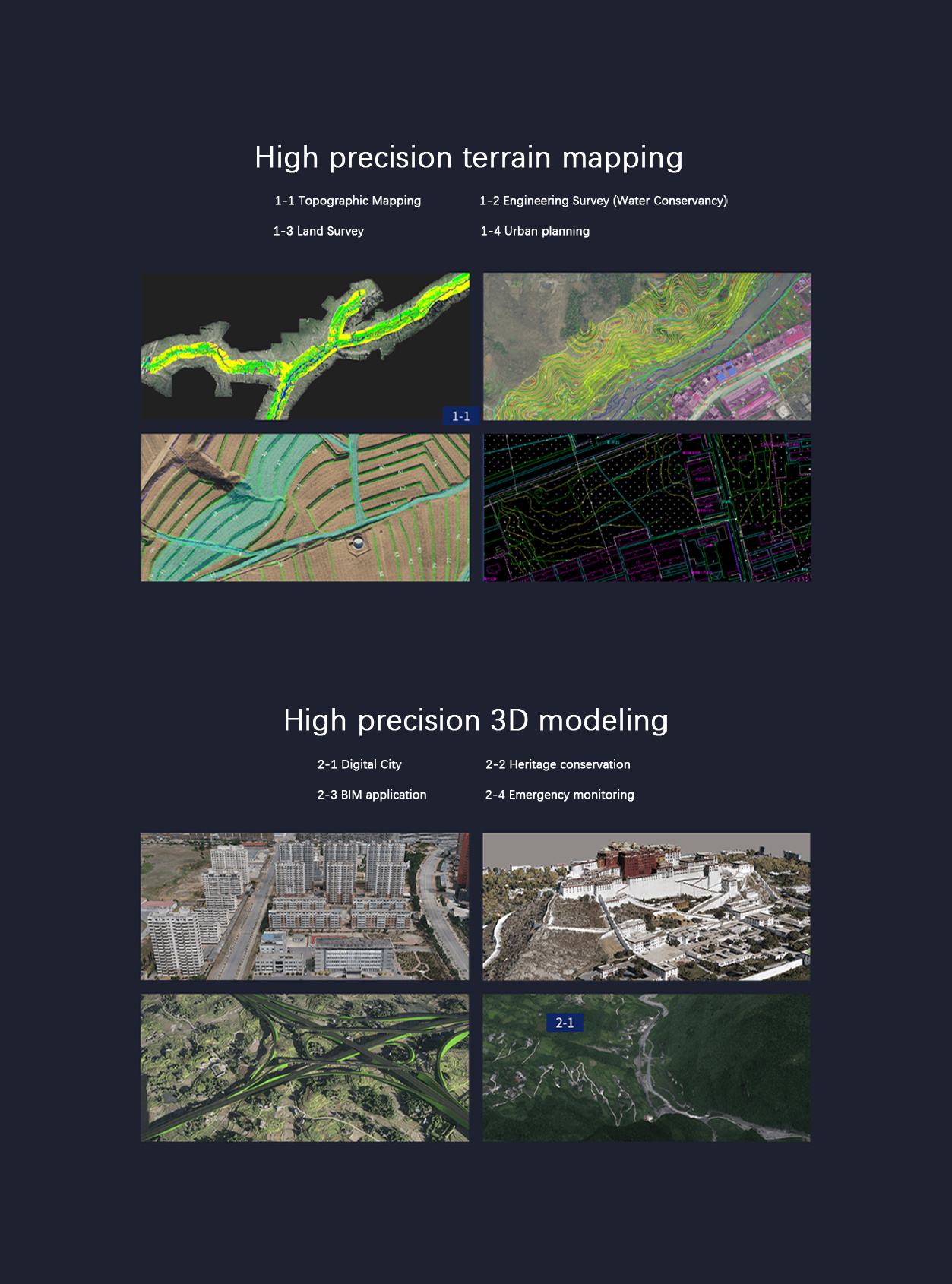

E2000S multi-rotor UAV is widely used in terrain mapping, engineering survey, land survey, urban planning, digital city, cultural relics protection, BIM application, emergency monitoring and other fields. Its high-precision, high-efficiency, high-quality image acquisition and processing capabilities make E2000S show extremely high application value in these fields.
In summary, the FEIMA ROBOTICS E2000S multi-rotor UAV has attracted much attention for its excellent performance, excellent image quality, comprehensive functions, intelligent control and a wide range of applications. Whether from the technical level or from the practical application effect, E2000S has shown a very high cost performance and competitiveness. Therefore, for users who need high-precision aerial survey and high-quality image acquisition and processing, the E2000S is undoubtedly a worthy choice.
Performance
FEIMA ROBOTICS E2000S multi-rotor UAV parameter configuration is quite comprehensive, the following is a detailed description of its parameter configuration:
- basic parameters
Brand: Pegasus (FEIMA ROBOTICS)
Model: E2000S
Type: High-performance multi-rotor UAV, focusing on high-precision aerial survey and reconstruction of the real world
Standard takeoff weight: 2.8kg
Standard load: 200g
Endurance: 60 minutes
Wind resistance: level 6
Unfolding time: ≤ 10min
Withdrawal time: ≤ 15min
Machine weight: 2.8kg (excluding blades and other accessories)
Whole machine packing weight: 12.34kg
- aerial survey module
Camera model: E-CAM2000, SONY a6000
Sensor size: 23.5 × 15.6mm(APS-C frame)
Effective pixels: about 24.3 million
Lens parameters: 25mm fixed focus lens, support ortho and tilt two operation modes
- power system
Motor: high efficiency, high reliability, low vibration, low noise
Intelligent battery module: with innovative battery protection scheme, you can easily check the battery power and other parameters and battery working status, with complete protection logic, reasonable and diverse protection of battery use
Quick release propeller: professional aerodynamic shape design and exquisite processing technology, to ensure the performance and quality of the propeller, without tools can be achieved propeller rapid disassembly, convenient and reliable
- Navigation System
Differential GNSS board: 20Hz high precision, supports RTK/PPK fusion solution, realizes 1:500 large scale image-free control application
Automatic obstacle avoidance function: equipped with front millimeter wave radar obstacle avoidance module, which can automatically detect obstacles in front
- Software and Data Processing
Unmanned aerial vehicle butler software: supports three-dimensional flight function, route mode with rich scenes and flight monitoring function, supports GPS fusion solution, control point measurement, air 3 solution, one-key mapping, one-key export of three-dimensional mapping, provides DOM, DEM, DSM, TDM and other results output, as well as distributed processing and browsing functions
- other features
Body design: using carbon fiber arm, light and strong, the arm can be quickly folded, the whole machine can be stored in a special box for convenient transportation
Accurate terrain following flight: with the professional version of the UAV butler software, it can realize accurate terrain following flight, improve the resolution of image acquisition and ensure the consistency of image resolution.
In summary, the FEIMA ROBOTICS E2000S multi-rotor UAV has demonstrated excellent performance and comprehensive functions in the parameter configuration. Its high-precision aerial survey module, efficient and stable power system, advanced navigation and obstacle avoidance technology and intelligent software solutions make E2000S have extremely high application value in aerial survey, remote sensing, inspection and other fields.
