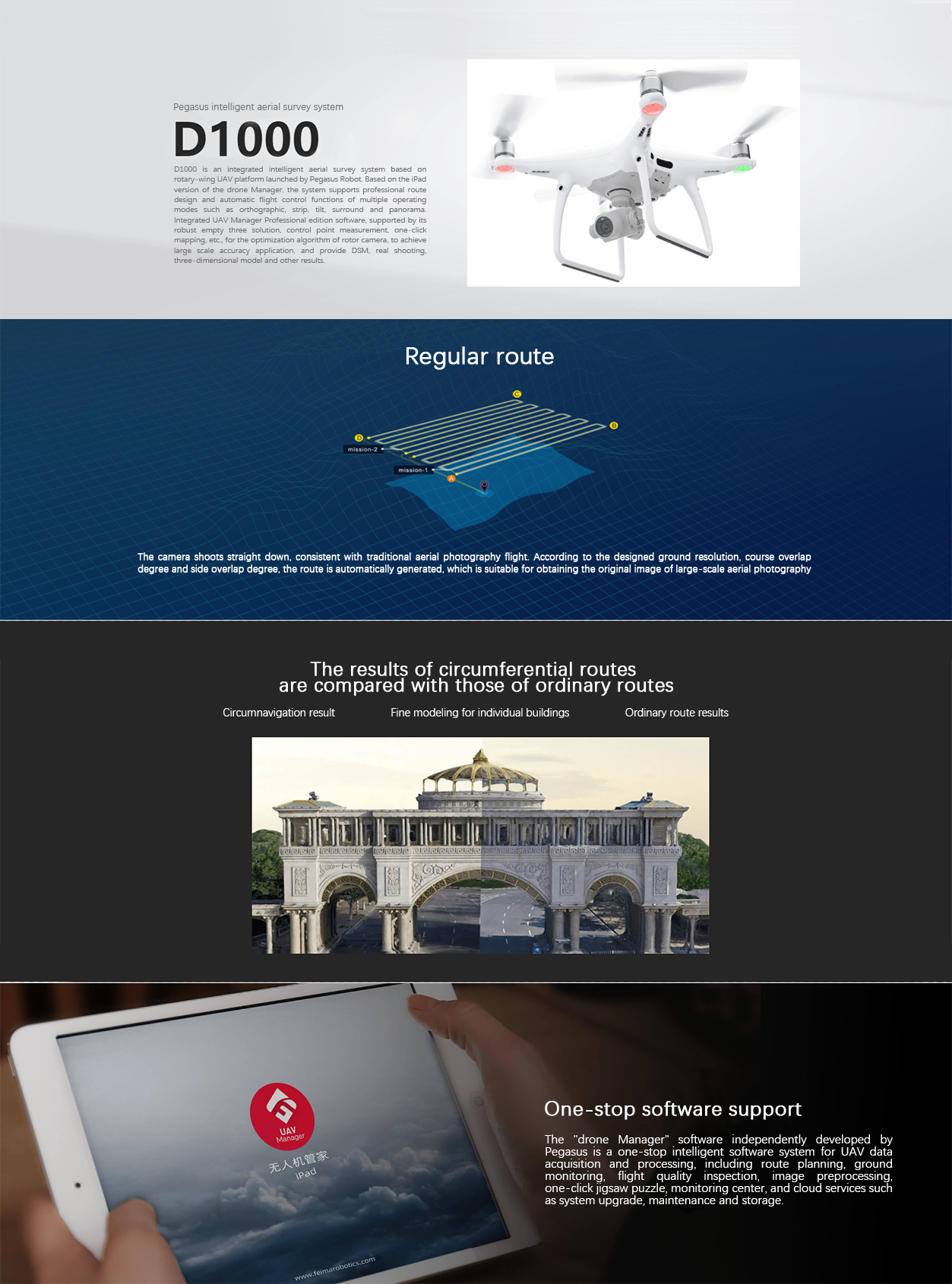

FEIMA ROBOTICS intelligent inspection system D1000 Multi-rotor UAV

FEIMA ROBOTICS D1000 multi-rotor UAV parameter configuration is quite comprehensive and high-performance, the following is its detailed parameter configuration information:

1. basic parameters

Brand: Pegasus Robot (FEIMA ROBOTICS)

Model: D1000

Type: Multi-rotor UAV

Platform: Rotor UAV Platform

packaging: boxes

2. flight performance

Maximum ascent speed:

Sport mode: 6 m/s

Positioning mode: 5 m/s

Maximum wind speed: 10 m/s

Maximum flight time: about 30 minutes

Maximum flight altitude: 6000m

Working environment temperature: 0 ℃ to 40 ℃

Wheelbase: 350mm

Satellite positioning module: GPS/GLONASS dual mode

Stabilization system: 3 axes (pitch, roll, yaw)

Controllable rotation range: pitch:-90 ° to 30 °

Maximum control speed: pitch: 90 °/s

3. intelligent aerial survey system

System Foundation: Based on UAV Butler iPad Edition

Operation mode: supports ortho, strip, tilt, surround, panorama and other operation modes

Route design: fully automatic flight control function, according to the design of the ground resolution, course overlap and side overlap automatic generation of routes

Software integration: Integrate the professional version of the UAV butler software to provide robust empty 3 solution, control point measurement, one-key graphing and other functions.

4. Camera and Shooting

Shooting method: The camera captures images vertically downward

Shooting results: provide DSM (digital surface model), real orthophoto, three-dimensional model and other results

5. other features

UAV butler software: one-stop intelligent software system, including route planning, ground monitoring, flight quality inspection, image pre-processing, one-button puzzle, monitoring platform and cloud services such as system upgrade, maintenance and storage.

Pegasus cloud platform: a service platform that provides UAV users with flight data storage, multi-device sharing and user sharing, which can realize health analysis, fault diagnosis and firmware upgrade of UAV cloud.

In summary, the FEIMA ROBOTICS D1000 multi-rotor UAV exhibits high performance, high precision and high reliability in parameter configuration. Its comprehensive flight performance, intelligent aerial survey system and rich shooting results make D1000 have a wide range of applications in aerial survey, remote sensing, inspection and other fields.
