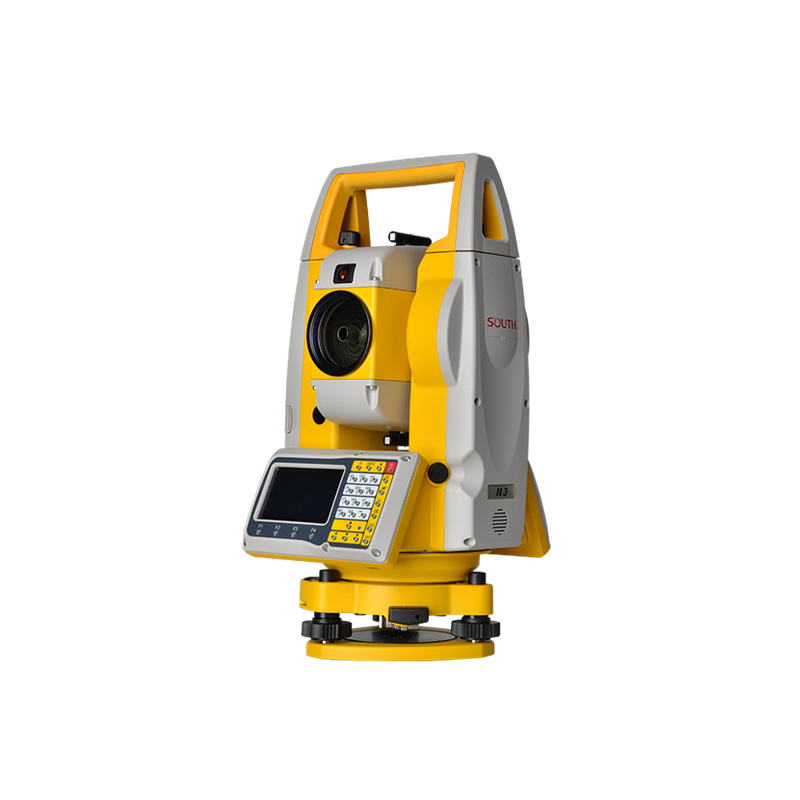

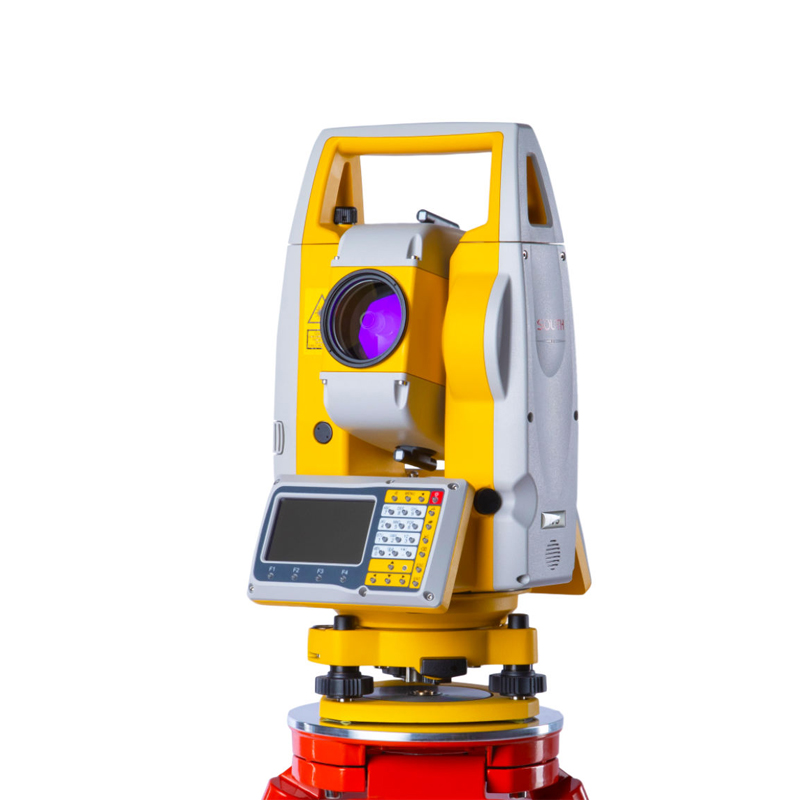

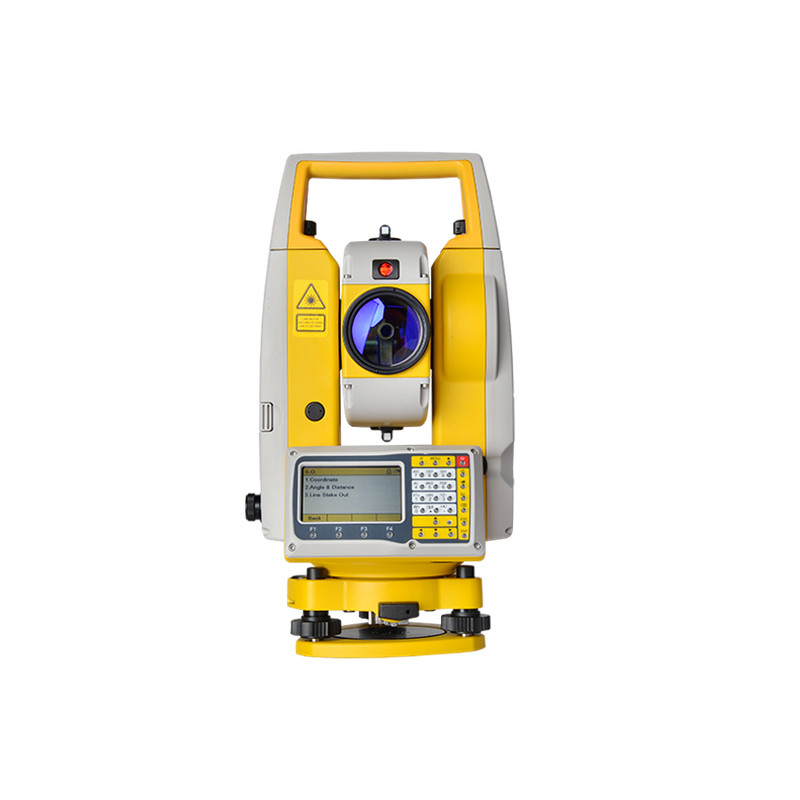

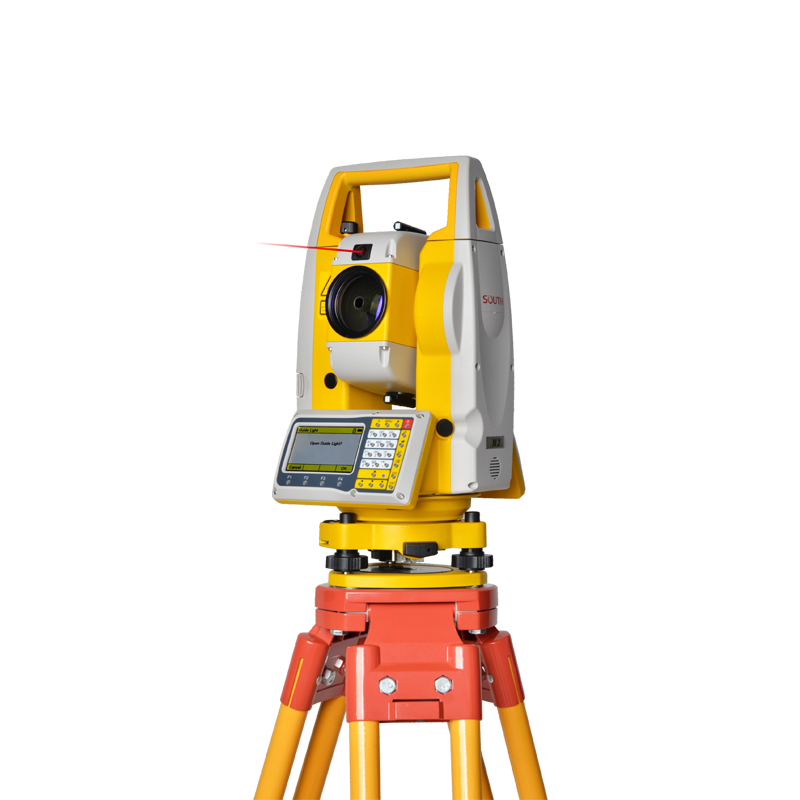

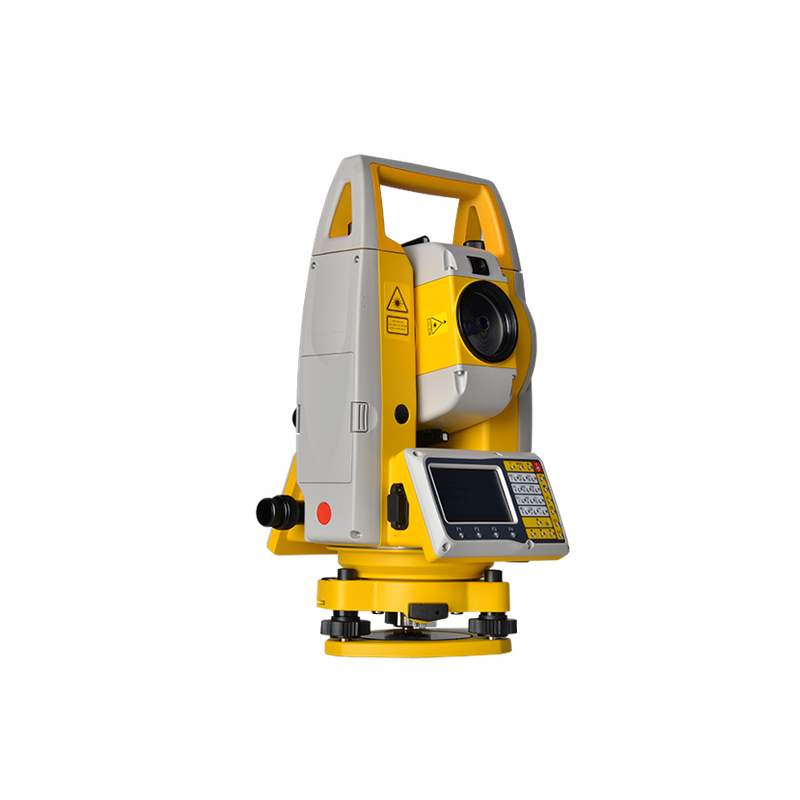

Fast And Accurate Total Station South N3 Series With Bluetooth
Technical Features
High Precision: The Southern N3 Total Station adopts advanced angle measurement methods such as electronic theodolite and double-run distance measurement to ensure the accuracy of measurement results. Its minimum reading can reach 1″ (0.3mgon), and the maximum angle measurement range includes a horizontal angle of 360° (400GON) and a vertical angle of 2×360° (800GON), meeting the requirements of various engineering surveys.
Long Battery Life: The instrument boasts a long battery life, capable of continuous operation for 16 hours, ensuring that frequent battery changes are not required during field measurements, thereby enhancing work efficiency.
Lightweight and Portable: The Southern N3 Total Station is relatively lightweight, weighing approximately 5.2kg, making it easy to carry and transport, and suitable for measurements in various complex environments.
Easy Operation: The instrument features a simple and clear design with a user-friendly operation interface, allowing users to quickly get started. Additionally, it is equipped with various measurement modes and functions, such as angle measurement, distance measurement, coordinate measurement, etc., catering to different user needs.
Application Fields
The Southern N3 Total Station is widely used in the measurement and topographic surveying of large-scale projects such as buildings, roads, and bridges. It can be used to measure various coordinates, elevations, and inclination angles, providing accurate data support for engineering design and construction. Furthermore, this instrument can also be applied in land surveying, agricultural surveying, and other fields, providing precise measurement data for agricultural production.
Operating Precautions
Before use, the instrument should be carefully inspected to ensure it is in good condition. At the same time, users should familiarize themselves with the instrument's operation methods and measurement principles to perform measurements correctly.
During measurements, attention should be paid to maintaining the stability and accuracy of the instrument. Avoid measuring in harsh environmental conditions, such as strong winds, heavy rain, etc.
After measurements, the instrument should be cleaned and maintained promptly to extend its service life. At the same time, the instrument should be stored in a dry, well-ventilated environment to prevent dampness and damage.
In summary, the Southern N3 Total Station is a high-precision, easy-to-operate surveying instrument with a wide range of applications and significant measurement value. When using it, attention should be paid to maintaining the instrument's stability and accuracy, and regular cleaning and maintenance should be performed.
Product Features
Stable Quality
Through independent innovation in technology and meticulous craftsmanship, the Southern Total Station has achieved a failure rate equivalent to or lower than that of similar imported total stations.
Comprehensive Functions
With features such as USB interface, Bluetooth communication, laser pointing, and a rich array of measurement programs, it offers more and more comprehensive functions than similar imported total stations.
Advanced Technology
Adopting internationally leading technologies such as absolute encoding, laser without prism, and photoelectric dual-axis circular electronic bubble compensation, it incorporates advanced highly integrated electronic components, integrating angle and distance measurement into a single board. The sealed structure provides IP55 waterproof and dustproof protection.
High Cost-effectiveness
In terms of failure rate, technological advancement, and functional diversity, it matches or exceeds similar imported instruments, while offering superior cost-effectiveness, making it a high-quality yet affordable option.
New Design, Durable, Technical Features
Absolute Encoding Angle Measurement
The advanced absolute encoding angle measurement technology significantly enhances angle measurement stability. Following international trends, the Southern Total Station adopts this technology, allowing the instrument to start up without initialization. If power is lost during measurement, the instrument retains previous information upon restart, greatly facilitating measurement tasks.
Dual-axis Liquid Photoelectric Electronic Compensation
The Southern Total Station employs internationally advanced dual-axis compensation technology, enabling the instrument to automatically eliminate errors and perform self-compensation, thereby greatly improving accuracy and automation. The graphical electronic bubble and dual-axis compensation error display (X, Y) provide operators with clear and confident measurements.
Prism-free Laser Ranging
The Southern Rangefinder utilizes internationally advanced point-emission and surface-reception laser ranging optics, enhancing efficiency and accuracy. It adopts the safest Class 1 laser, with an effective ranging distance of 400 meters, effectively addressing measurements of points where a prism cannot be placed.
Bluetooth Communication
Using Bluetooth 4.0, it enables bidirectional wireless data transmission and wireless connection to devices such as mobile apps and data collectors, offering strong expandability.
Automatic Correction via Barometric Pressure Sensor
Rubber gasket provides IP55 waterproof and dustproof protection.
Ball bearing system with built-in laser downward pointing.
Logistics information
Logistics information

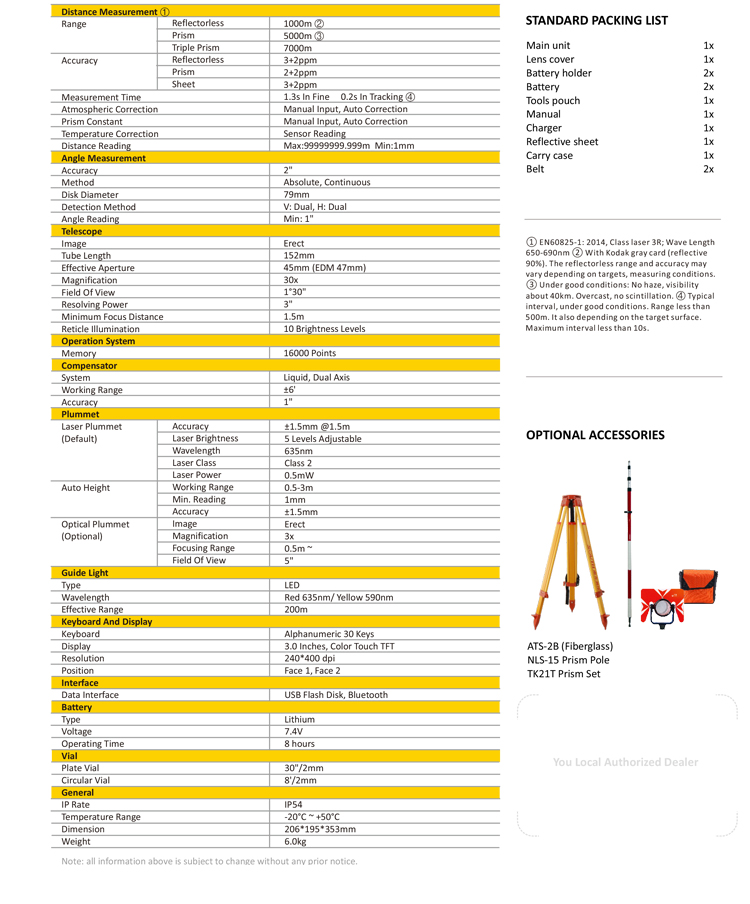

technical parameter
| istance Measurement | Reflectorless | 1000m |
| Single Prism | 5000m | |
| Accuracy: Non Prism | 3+2ppm | |
| Accuracy: Prism | 2+2ppm | |
| Sheet | 3+2ppm | |
| Measurement Time | 1.3s In Fine | |
| 0.2s In Tracking | ||
| Atmospheric Correction | Manual Input, Auto Correction | |
| Prism Constant | Manual Input, Auto Correction | |
| Temperature Correction | Sensor Reading | |
| Distance Reading | Max: 99999999.999m Min: 1mm | |
| Angle Measurement | Accuracy | 2" |
| Method | Absolute, Continuous | |
| Disk Diameter | 79mm | |
| Detection Method | V: Dual, H: Dual | |
| Angle Reading | Min: 1" | |
| Telescope | Image | Erect |
| Tube Length | 152mm | |
| Effective Aperture | 45mm (EDM 47mm) | |
| Magnification | 30x | |
| Field Of View | 1掳30" | |
| Resolving Power | 3" | |
| Minimum Focus Distance | 1.5m | |
| Muitiple/Additive Constant | 10 Brightness Levels | |
| Keyboard And Display | Keyboard | Alphanumeric 30 Keys |
| Display | 3.0 Inches, Color Touch TFT | |
| Resolution | 240*400 dpi | |
| Position | Face 1, Face 2 | |
| Operation System | Operation System | None |
| Processor | None | |
| Memory | 16000 Points | |
| Interface | WIFI | None |
| Bluetooth | BT4.0 | |
| SD Card | None | |
| Serial Port | None | |
| Mini USB | None | |
| Mirco USB | None | |
| USB Flash Disk | Yes | |
| SIM Card | None | |
| Compensator | System | Liquid, Dual Axis |
| Working Range | ±6' | |
| Accuracy | 1" | |
| Plummet | Laser Plummet (Default) | |
| Accuracy | ±1.5mm @1.5m | |
| Laser Brightness | 5 Levels Adjustable | |
| Wavelength | 635nm | |
| Laser Class | Class 2 | |
| Laser Power | 0.5mW | |
| Optical Plummet (Optional) | ||
| Image | Erect | |
| Magnification | 3x | |
| Focusing Range | 0.5m -- | |
| Field Of View | 5" | |
| Accuracy | - | |
| Battery | Type | Lithium |
| Voltage | 7.4V | |
| Operating time | 8 hours | |
| Vial | Plate Vial | 30" /2mm |
| Circular Vial | 8' /2mm | |
| General | IP Rate | IP54 |
| Temperature Range | -20°C -- +50°C | |
| Dimension | 206*195*353mm | |
| Weight | 6.0kg | |
| Others | Trigger Key | |
| Others | Auto Height | |
| Others | - |
