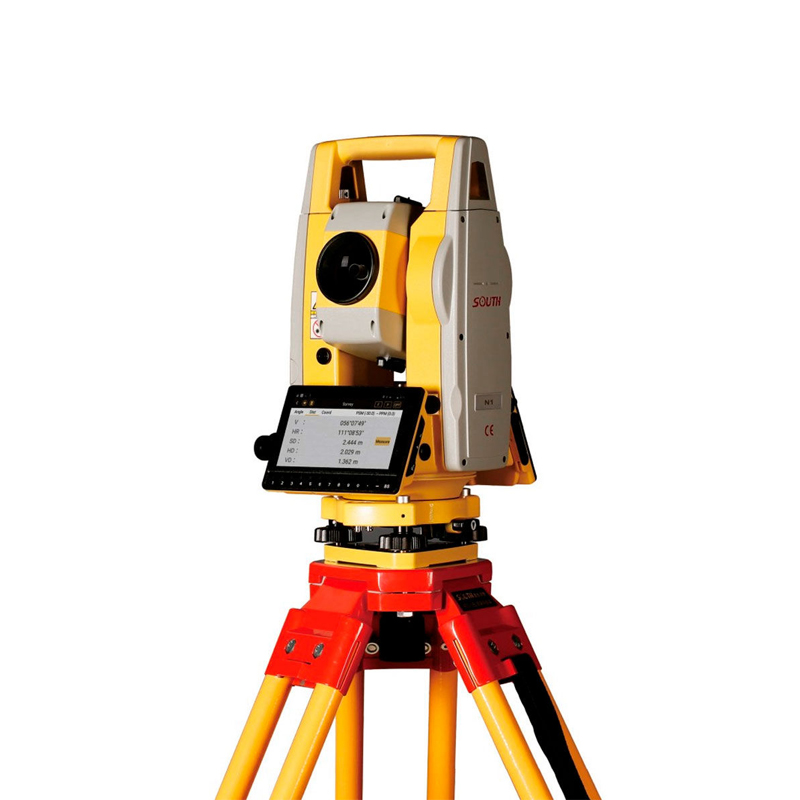

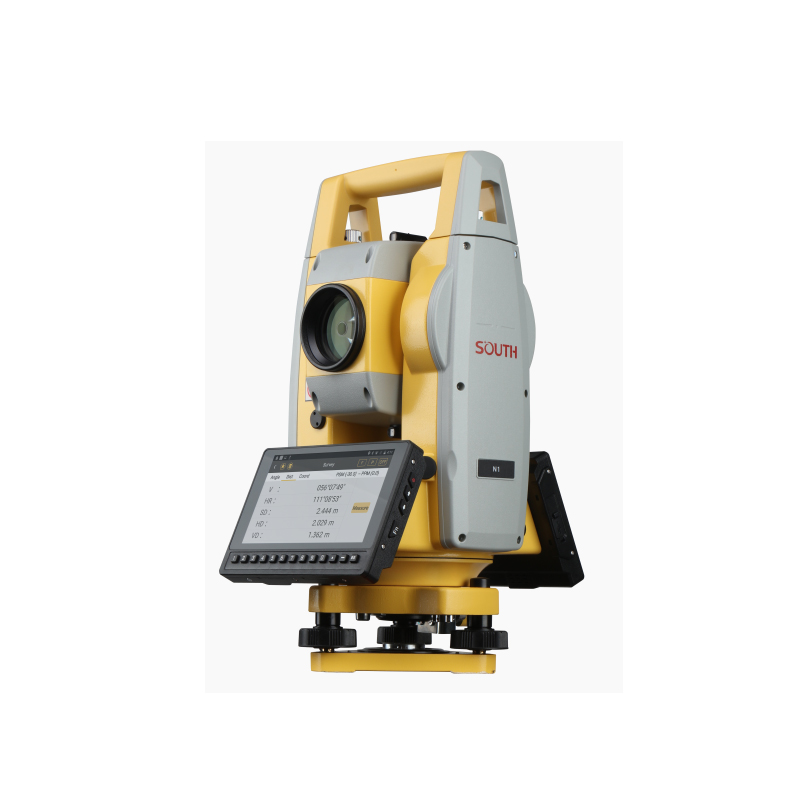

Fast And Accurate Total Station South N1 Series With Bluetooth

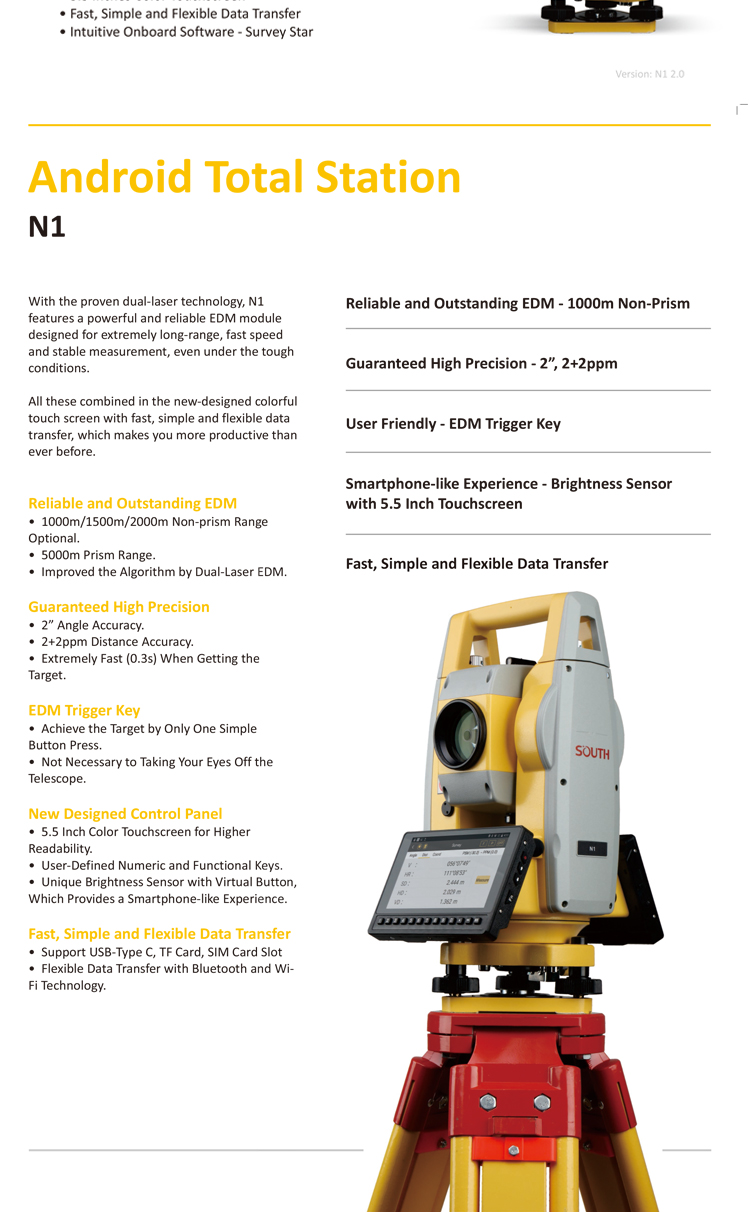

Product Features
Ease of Operation:
● The South N1 series total station features a user-friendly design with a straightforward and clear operation interface.
● The instrument is equipped with simple operation modes such as rotation and pressing, enabling users to quickly get started without complex training.
Robust Stability:
● The instrument has a compact and sturdy structure, capable of maintaining stable measurement performance in harsh environments.
● It also features functions such as an automatic vertical compensator and a dual-axis liquid electronic sensing compensator, ensuring the stability and accuracy of measurement results.
Multiple Measurement Modes:
● The South N1 series total station supports various measurement modes, including single-point measurement, continuous measurement, angle measurement, etc.
● The multiple measurement modes can meet the needs of different users, providing diversified solutions for engineering measurements.
High Portability:
● The instrument is small in size and light in weight, making it easy to carry and transport.
● Users can effortlessly bring the instrument to various measurement sites for quick and accurate measurements.
Powerful Data Processing Capabilities:
● The South N1 series total station is equipped with a powerful data processing system that can automatically calculate and store measurement data.
● Users can easily view and export measurement data, providing data support for engineering design and construction.
Wide Range of Applications:
● The South N1 series total station is suitable for various small and medium-sized engineering and outdoor measurement scenarios.
● It can be applied in fields such as civil engineering, construction engineering, and water conservancy engineering, among others.
In summary, the South N1 series total station, with its advantages of high precision measurement, Bluetooth connectivity, ease of operation, robust stability, multiple measurement modes, high portability, powerful data processing capabilities, and wide range of applications, has become a highly favored surveying instrument among users.
Ranging Parameters
| Ranging with Prism |
| Measurement Range: 5000m (under good conditions, such as visibility of about 40km, overcast skies, dusk, etc.) |
| Ranging Accuracy: ±(2+2ppmxD)mm |
| Measurement Interval: Fine mode 0.3 seconds, Tracking mode 0.1 seconds |
| Ranging without Prism |
| Measurement Range: 1000/1500/2000m optional (for highly reflective white objects with a reflectivity of KGC 90%) |
| Ranging Accuracy: ±(3+2ppmxD)mm |
| Measurement Interval: 0.3-3 seconds |
Angle Measurement Parameters
| Angle Measurement Accuracy: 2” (seconds) |
| Measurement Method (Horizontal/Vertical Angle): Absolute Continuous, Diametrical |
| Encoder Disk Diameter: 79mm |
| Display Resolution: 0.1” |
| Tilt Compensation: Dual-axis Liquid Electronic Sensor Compensation |
| Compensator Setting Accuracy: 1” |
| Compensator Range: ±4' |
Telescope Parameters
| Image: Erect |
| Tube Length: 154mm |
| Effective Aperture: 45mm (EDM: 50mm) |
| Magnification: 30x |
| Resolution: 3” |
| Field of View: 1°30" |
| Focusing Range: 1.2m |
| Reticle: Illuminated, 4 brightness levels adjustable |
Level Vial and Laser Plummet
| Plate Level Vial: 30"/2mm |
| Circular Level Vial: 8'/2mm |
| Laser Plummet (Default) |
| Type: Laser Point, 4 brightness levels adjustable |
| Accuracy: ±1.5mm at an instrument height of 1.5m |
| Wavelength: 630-670nm |
| Laser Class: Class 2 /IEC60825-1 |
| Laser Power: <0.4mW |
System Configuration
| Operating System: Android 11.0 |
| Processor: MT6762 |
| Memory: RAM 4GB; ROM 64GB |
| Communication Interfaces |
| Micro SIM |
| USB Type C (OTG) |
| TF Card |
| Network: Supports multiple network bands such as 3G, 4G LTE |
| Bluetooth: Bluetooth 4.0 |
| WLAN: Supports Dual-Band Single Stream 802.11 a/b/g/n RF data link |
| Microphone/Speaker: Equipped |
Display and Battery
| Display |
| Type: 5.5-inch TFT LCD screen with a resolution of 720*1280 |
| Battery |
| Type: Lithium-ion battery, 7.4V |
| Operating Time: 8 hours |
Physical Characteristics and Environmental Adaptability
| Dimensions: 350mm*170mm*217mm |
| Weight: 5.7kgs |
| Operating Temperature Range: -20°C to 50°C |
| Protection Level: IP55 |
Note: The above parameter information may vary due to product updates or differences in specific models. Please refer to the latest official information for accuracy.
Logistics information
Logistics information

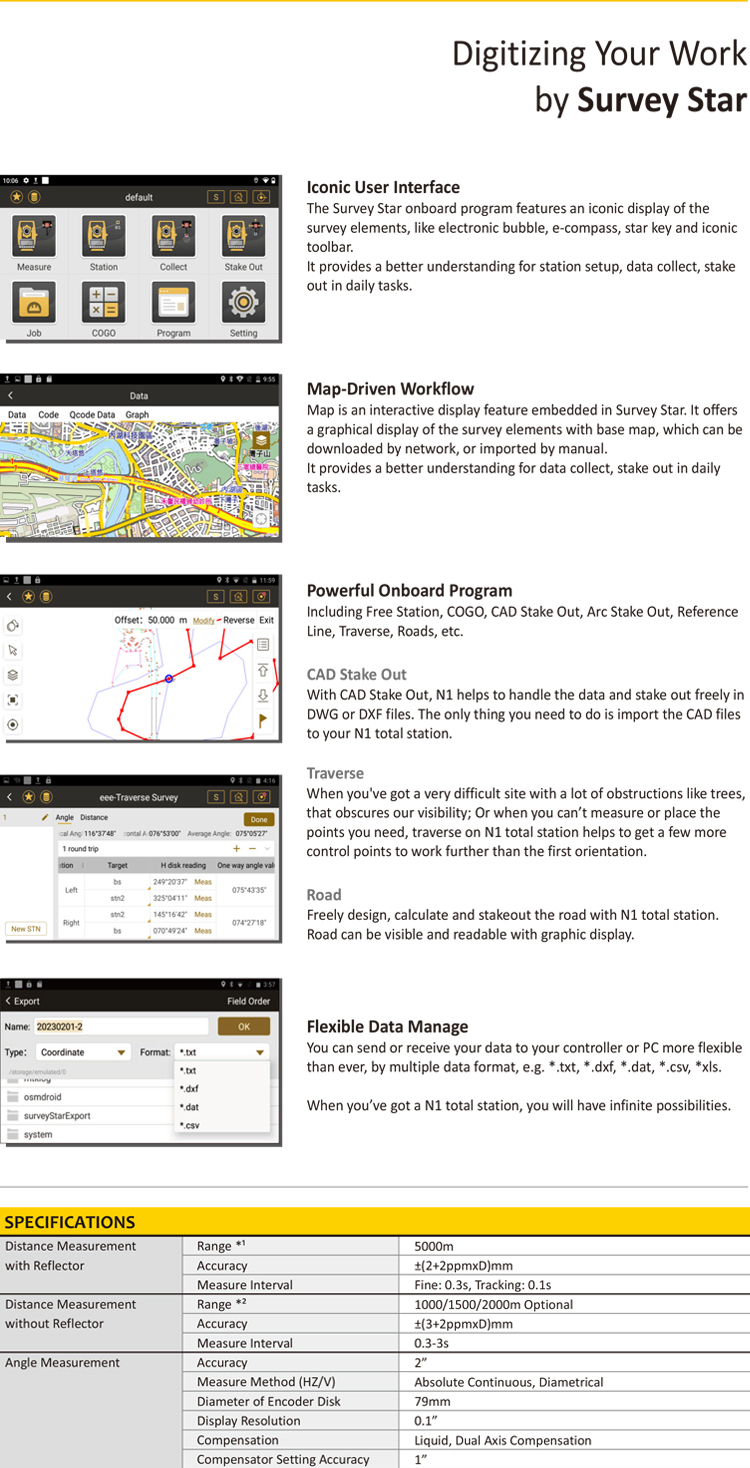

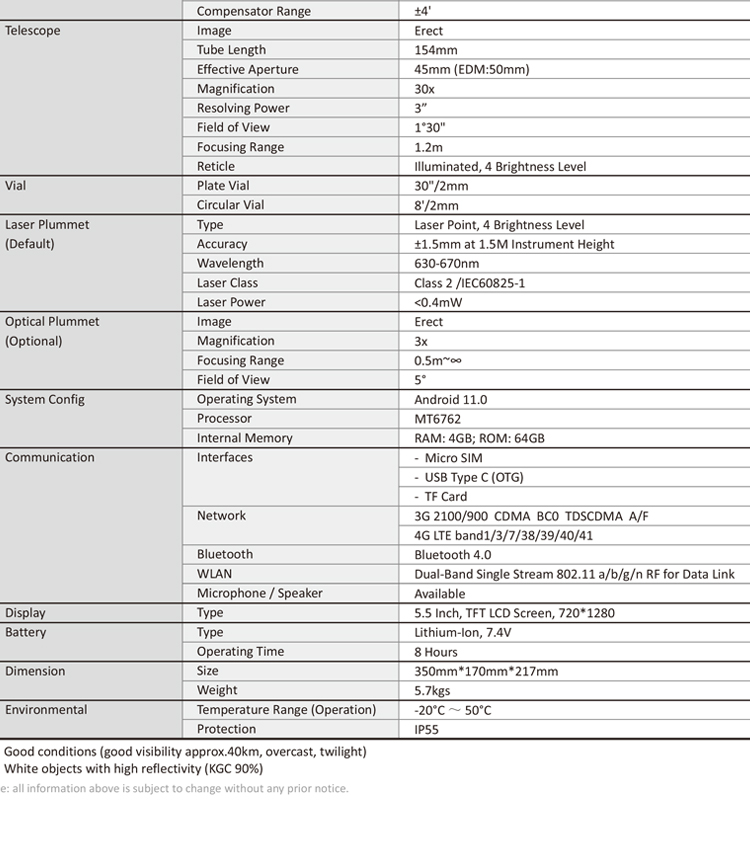

technical parameter
| Distance Measurement with Reflector | Range *1 | 5000m |
| Accuracy | ±(2+2ppmxD)mm | |
| Measure Interval | Fine: 0.3s, Tracking: 0.1s | |
| Distance Measurement without Reflector | Range *2 | 1000/1500/2000m Optional |
| Accuracy | ±(3+2ppmxD)mm | |
| Measure Interval | 0.3-3s | |
| Angle Measurement | Accuracy | 2” |
| Measure Method (HZ/V) | Absolute Continuous, Diametrical | |
| Diameter of Encoder Disk | 79mm | |
| Display Resolution | 0.1” | |
| Compensator Setting Accuracy | 1” | |
| Telescope | Image | Erect |
| Effective Aperture | 45mm (EDM:50mm) | |
| Magnification | 30x | |
| Resolving Power | 3” | |
| Reticle | Illuminated, 4 Brightness Level | |
| Vial | Plate Vial | 30"/2mm |
| Laser Plummet (Default) | Type | Laser Point, 4 Brightness Level |
| Accuracy | ±1.5mm at 1.5M Instrument Height | |
| Wavelength | 630-670nm | |
| Laser Class | Class 2 /IEC60825-1 | |
| Laser Power | <0.4mW | |
| Optical Plummet (Optional) | Image | Erect |
| Magnification | 3x | |
| Focusing Range | 0.5m~∞ | |
| Field of View | 5° | |
| System Config | Operating System | Android 11.0 |
| Processor | MT6762 | |
| Internal Memory | RAM: 4GB; ROM: 64GB | |
| Communication | Interfaces | - Micro SIM |
| - USB Type C (OTG) | ||
| - TF Card | ||
| Network | 3G 2100/900 CDMA BC0 TDSCDMA A/F | |
| 4G LTE band1/3/7/38/39/40/41 | ||
| Bluetooth | Bluetooth 4.0 | |
| WLAN | Dual-Band Single Stream 802.11 a/b/g/n RF for Data Link | |
| Microphone / Speaker | Available | |
| Display | Type | 5.5 Inch, TFT LCD Screen, 720*1280 |
| Battery | Type | Lithium-Ion, 7.4V |
| Operating Time | 8 Hours | |
| Dimension | Size | 350mm*170mm*217mm |
| Weight | 5.7kgs | |
| Environmental | Temperature Range (Operation) | -20°C ～ 50°C |
| Protection | IP55 |
