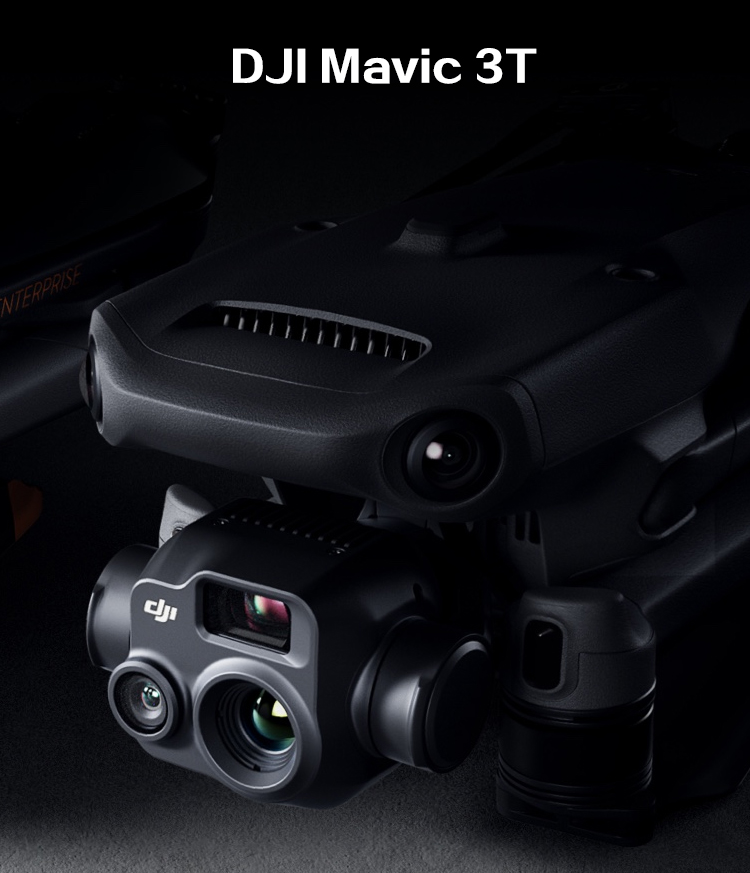

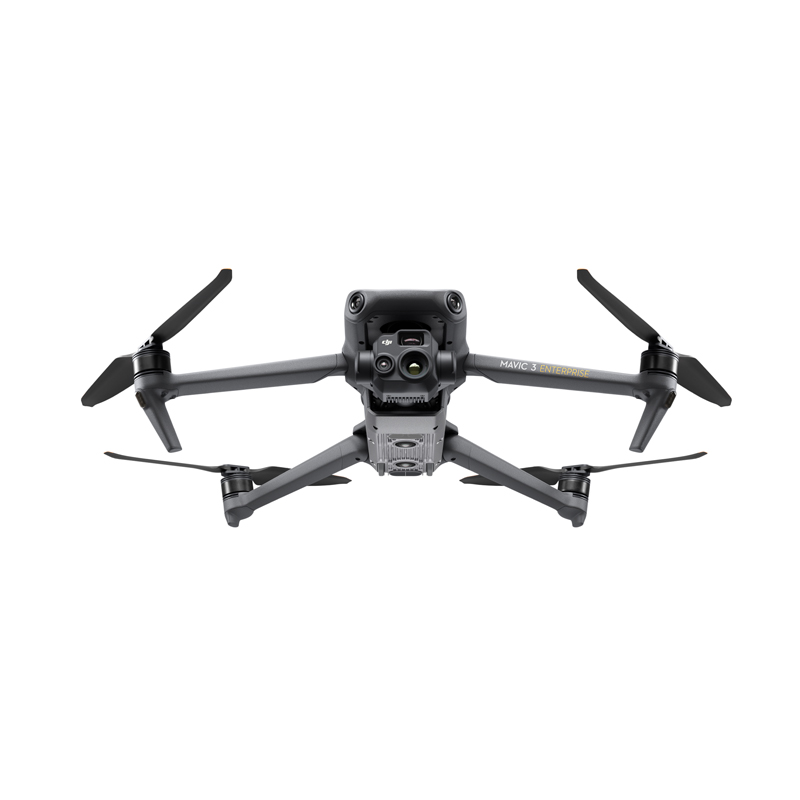

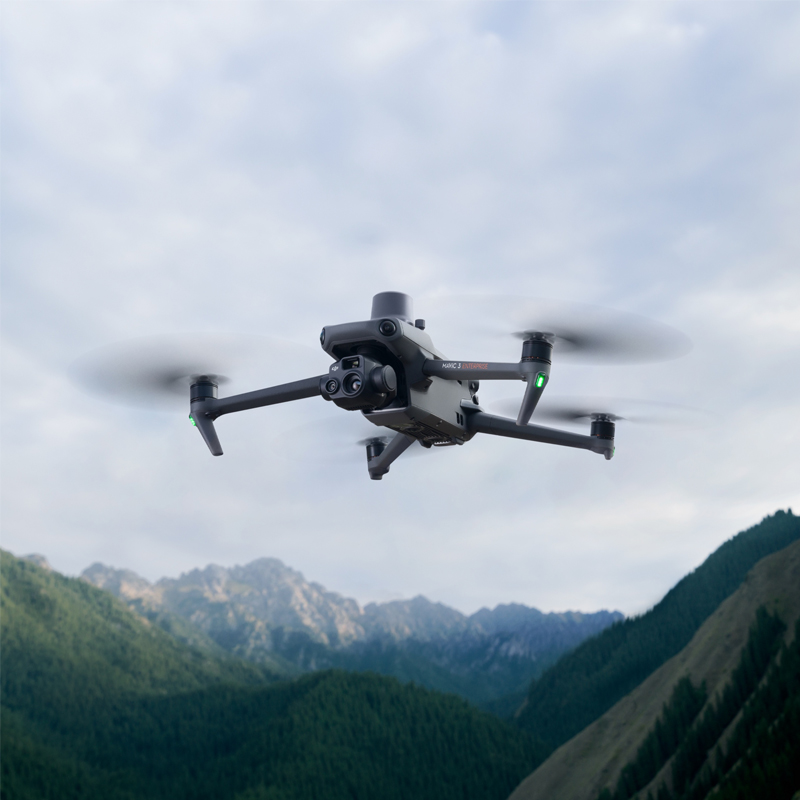

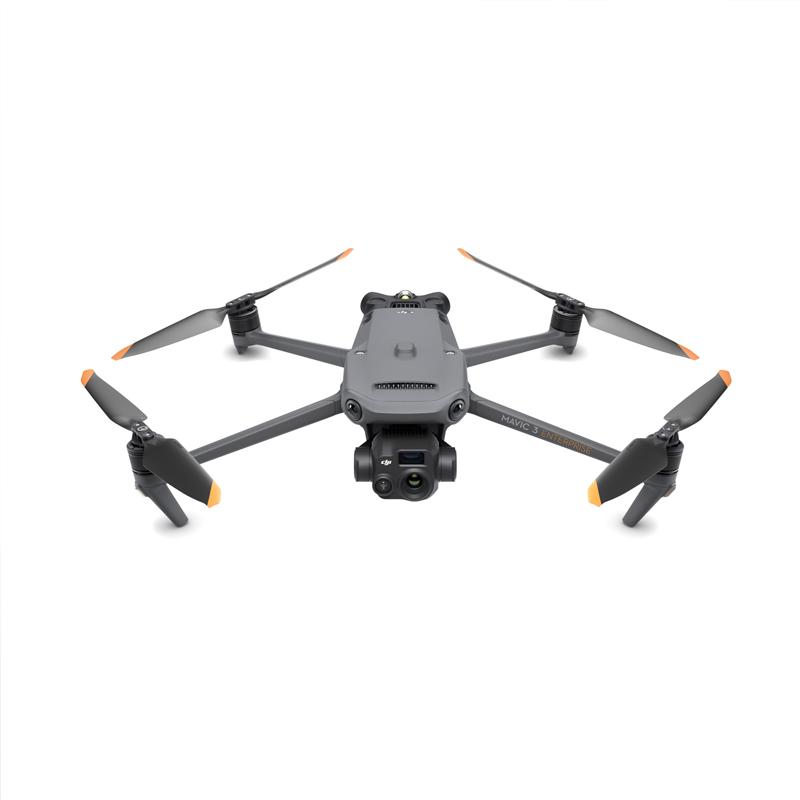

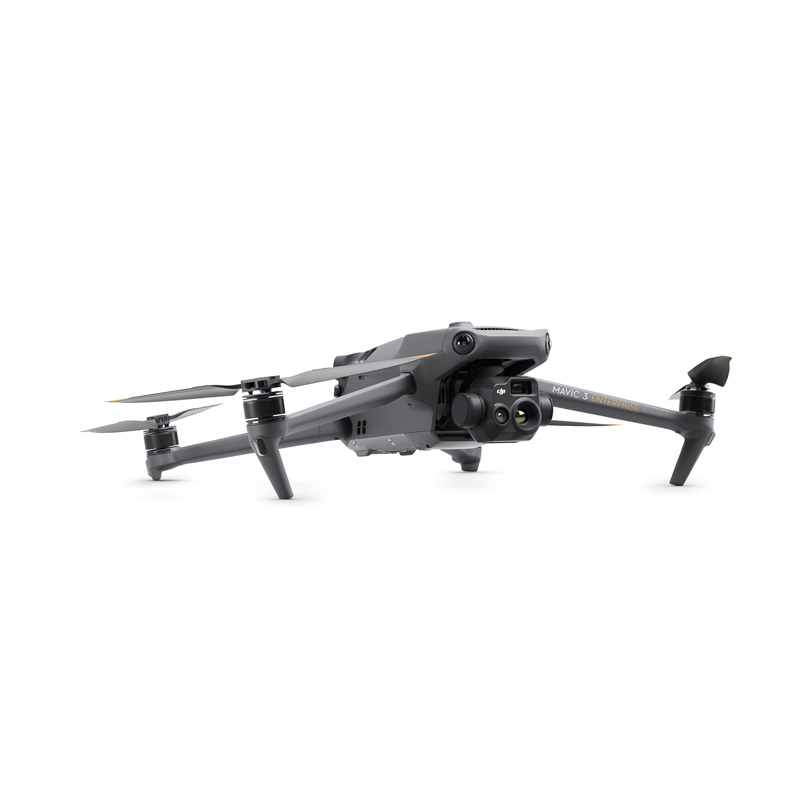

DJII Mavic 3 Enterprise Series Mavic 3T Drone with Thermal RC Drones 4k Professional Camera 45-min Max Flight
Product advantages
High-Performance Camera System
Thermal Imaging Function: The Mavic 3T is equipped with a 640×512 resolution thermal imaging camera capable of capturing temperature differences ranging from -20°C to 550°C and displaying them in high-definition images. It is suitable for various scenarios such as nighttime search and rescue, forest fire monitoring, and power line inspection.

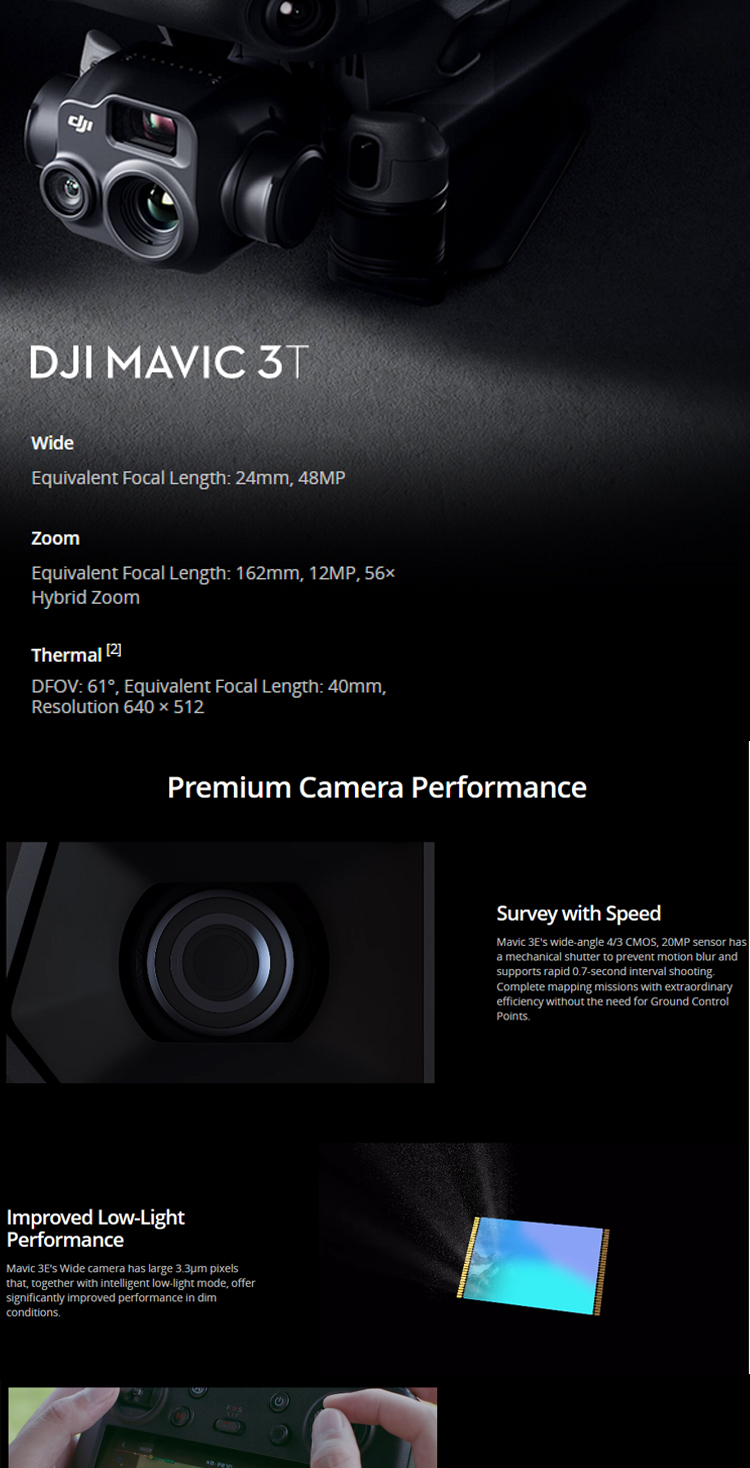

Visible Light Camera: The wide-angle camera features a 4/3 CMOS sensor with 20 million pixels and supports a mechanical shutter to avoid the jelly effect. The telephoto camera supports up to 56x hybrid zoom for distant target observation. The thermal imaging camera and visible light camera can achieve 28x linked zoom and continuous zoom for efficient comparison and detail confirmation.
Advanced Positioning and Navigation
RTK Module: The Mavic 3T supports RTK (Real-Time Kinematic) technology, enabling centimeter-level precise positioning to ensure the accuracy of photography and measurement data.
Omnidirectional Perception System: Equipped with an omnidirectional binocular vision system and supplemented by an infrared sensor on the bottom of the fuselage, it can perceive the surrounding environment in real time, enhancing flight safety and stability.
Enhanced Image Transmission and Communication
4G Enhanced Image Transmission: The Mavic 3T can be optionally equipped with the DJI Cellular module for 4G enhanced image transmission, increasing the effective operation radius in complex environments.
High-Volume Loudspeaker: Equipped with a high-volume loudspeaker that supports text-to-speech and recording storage, it can automatically loop playback, making it suitable for emergency search and rescue operations.
Intelligent Flight and Data Processing
Intelligent Flight Functions: Supports intelligent flight functions such as APAS 5.0 (drone automatically navigates around obstacles), ensuring a more worry-free flight.
Efficient Data Processing: After completing thermal imaging tasks with the Mavic 3T, users can use the DTAT 3.0 infrared thermal analysis tool to mark, analyze, and process images, clearly identifying abnormal temperature points.
In summary, the DJI Mavic 3T drone, with its portability, long endurance, high-performance camera system, advanced positioning and navigation capabilities, enhanced image transmission and communication capabilities, as well as intelligent flight and data processing capabilities, plays a crucial role in various fields such as surveying, inspection, and search and rescue.
Product parameters
I. Aircraft Parameters
Product Type: Quadcopter
Product Positioning: Professional level
Payload Capacity: 1050g
Hovering Accuracy
Vertical: ±0.1m (when vision positioning is working normally); ±0.5m (when GNSS is working normally); ±0.1m (when RTK is working normally)
Horizontal: ±0.3m (when vision positioning is working normally); ±0.5m (when high-precision positioning system is working normally); ±0.1m (when RTK is working normally)
Rotational Angular Velocity: 200°/s
Ascent/Descent Speed
Ascent: 6m/s (normal mode); 8m/s (sport mode)
Descent: 6m/s (normal mode, sport mode)
Flight Speed
Normal Mode: 15m/s
Sport Mode: Forward flight 21m/s; Sideways flight 20m/s; Backward flight 19m/s
Flight Altitude: 6000m (unloaded flight)
Flight Time: 45 minutes in windless environment
Wheelbase: Diagonal 380.1mm
Propeller: 9453F Industry Version
Wind Resistance Level: 12m/s
II. Gimbal Parameters
Gimbal Type: Three-axis mechanical gimbal (pitch, roll, yaw)
Angle Control Precision
Pitch: -135° to 45°
Roll: -45° to 45°
Yaw: -27° to 27°
Controllable Rotation Range
Pitch: -90° to 35°
Yaw: Not controllable
Control Rotation Speed: Maximum control rotation speed (pitch) 100°/s
III. Camera Parameters
Lens Angle of View: 84°
Equivalent Focal Length: 24mm
Aperture: f/2.8
Focus Point: 1m to infinity
Sensor: 1/2" CMOS, 48 million effective pixels
Pixel Count: 48 million
ISO Range: 100 to 25600
Shutter Speed: Electronic shutter 8s to 1/8000s
Photo Resolution: 8000×6000
Video Resolution
4K: 3840×2160@30fps
FHD: 1920×1080@30fps
Shooting Modes
Single Shot: 12 million pixels / 48 million pixels
Timed Shot: 12 million pixels / 48 million pixels
JPEG: 2/3/5/7/10/15/20/30/60s (When shooting 48 million pixel photos, 2s interval is not supported)
Low-light Intelligent Photo: 12 million pixels
Panoramic Photo: 12 million pixels (original material), 100 million pixels (composite material)
IV. Power Performance
Charger: DJI Desktop Charger (100W)
Battery: Lithium-ion battery 5000mAh LiPo 4S
Charging Time
When using the standard DJI Desktop Charger (100W) to charge the remote controller alone, or using a 15V USB charger: approximately 1.5 hours
When using a 12V USB charger: approximately 2 hours
When using the standard DJI Desktop Charger (100W) to charge both the aircraft and remote controller simultaneously: approximately 2 hours and 50 minutes
Battery Life: Approximately 3 hours (but flight time is 45 minutes, the battery life here may refer to the total usable duration of the battery or include the usage time of other devices)
V. Other Parameters
Product Color: Black
Product Dimensions
Folded (without propellers): 221×96.3×90.3mm
Unfolded (without propellers): 347.5×283×107.7mm
Product Weight: 920g (weight of the aircraft without accessories, including battery)
Operating Environment: Operating temperature 10°C to 40°C
Other Parameters
Range: 32km
Maximum Tilt Angle: 30° (normal mode); 35° (sport mode) (But the rotational angular velocity is 200°/s, the maximum tilt angle here may be related to the performance under rotational angular velocity and needs to be judged based on specific usage scenarios)
GNSS: GPS+Galileo+BeiDou+GLONASS (only supports GLONASS when the RTK module is enabled)
The above parameters are for reference only. Please refer to the actual product information sold locally for details.
Logistics information
Logistics information
technical parameter
| Aircraft | Weight (with propellers, without accessories) [1] | DJI Mavic 3E: 915 g DJI Mavic 3T: 920 g |
| Max Takeoff Weight | DJI Mavic 3E: 1,050 g DJI Mavic 3T: 1,050 g | |
| Dimensions | Folded (without propellers): 221×96.3×90.3 mm (L×W×H) Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H) | |
| Diagonal Distance | 380.1 mm | |
| Max Ascent Speed | 6 m/s (Normal Mode) 8 m/s (Sport Mode) | |
| Max Descent Speed | 6 m/s (Normal Mode) 6 m/s (Sport Mode) | |
| Max Flight Speed (at sea level, no wind) | 15 m/s (Normal Mode) Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) [2] | |
| Max Wind Speed Resistance | 12 m/s [3] | |
| Max Take-off Altitude Above Sea Level | 6000 m (without payload) | |
| Max Flight Time (no wind) | 45 mins [4] | |
| Max Hover Time (no wind) | 38 mins | |
| Max Flight Distance | 32 km | |
| Max Pitch Angle | 30° (Normal Mode) 35° (Sport Mode) | |
| Max Angular Velocity | 200°/s | |
| GNSS | GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled) | |
| Hovering Accuracy | Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK) Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK) | |
| Operating Temperature Range | -10° to 40° C (14° to 104° F) | |
| Internal Storage | N/A | |
| Motor Model | 2008 | |
| Propeller Model | 9453F Propellers for Enterprise | |
| Beacon | Built into the aircraft | |
| Class | C2 (EU) | |
| Video Transmission | Video Transmission System | DJI O3 Enterprise Transmission |
| Max Transmission Distance | FCC: 15 km CE/SRRC/MIC: 8 km | |
| Video Transmission Operating Frequency [6] | 2.400-2.4835 GHz 5.725-5.850 GHz | |
| Antenna | 4 Antennas, 2T4R | |
| Video Transmission Transmitter Power (EIRP) | 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), ＜23 dBm (SRRC) | |
| Wi-Fi Protocol | 802.11 a/b/g/n/ac/ax Support 2×2 MIMO Wi-Fi | |
| Wi-Fi Operating Frequency [6] | 2.400-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz | |
| Wi-Fi Transmitter Power (EIRP) | 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC) 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE) | |
| Bluetooth Protocol | Bluetooth 5.1 | |
| Bluetooth Operating Frequency | 2.400-2.4835 GHz | |
| Bluetooth Transmitter Power (EIRP) | < 10 dBm | |
| Screen Resolution | 1920×1080 |
