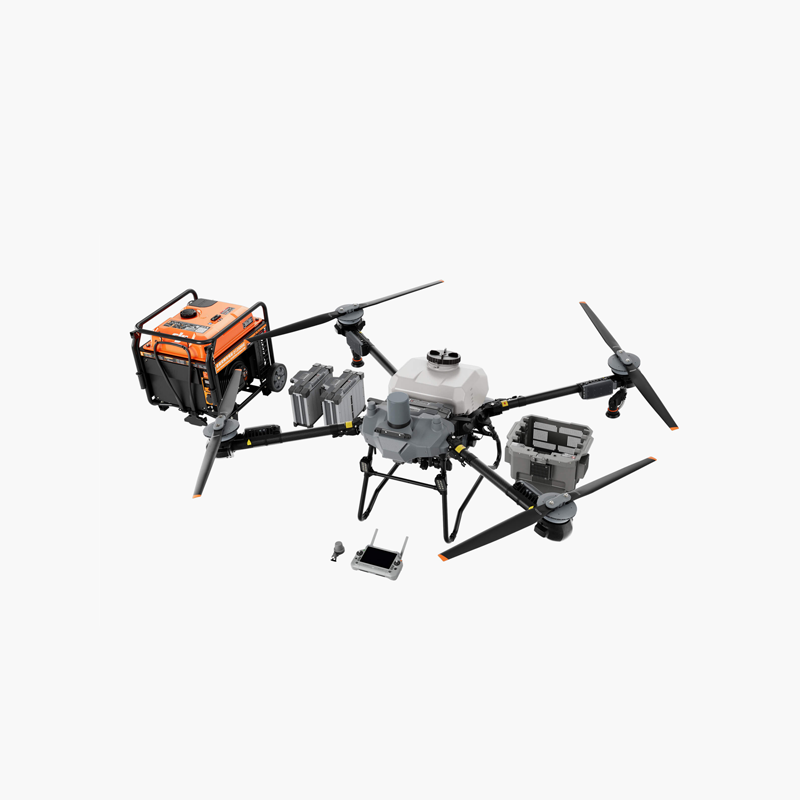

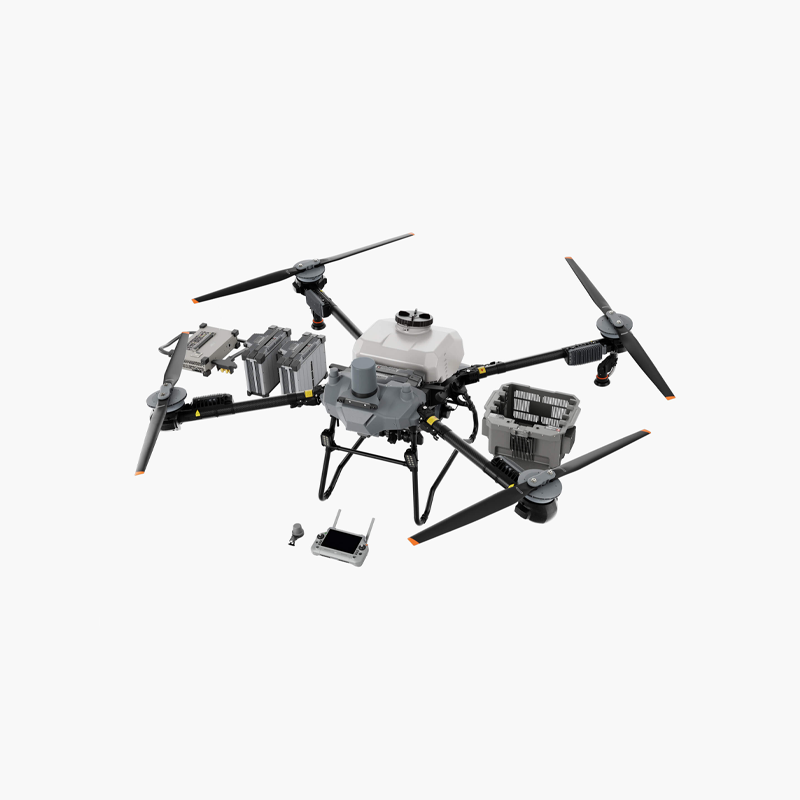

DJI T60 Agricultural Pesticide Application UAV Agricultural Aircraft Drug Application Plant Protection

The DJI T60 drone is a professional-grade agricultural unmanned aerial vehicle (UAV) with outstanding performance and functionality. Here is a detailed evaluation of this drone:

I. Power and Payload Capacity

1.The T60 is equipped with 56-inch high-strength propellers, large-payload motors, and high-power electronic speed controllers, increasing the single-axis integrated pulling force by 33%.

2.The drone has a spraying payload capacity of up to 50 kilograms and a seeding payload capacity of 60 kilograms, further enhancing its adaptability to various operational scenarios.

3.Even with low battery levels, it can complete seeding operations at full load, ensuring continuous, high-intensity, and heavy-load operation throughout the day.

II. Spraying and Seeding Systems

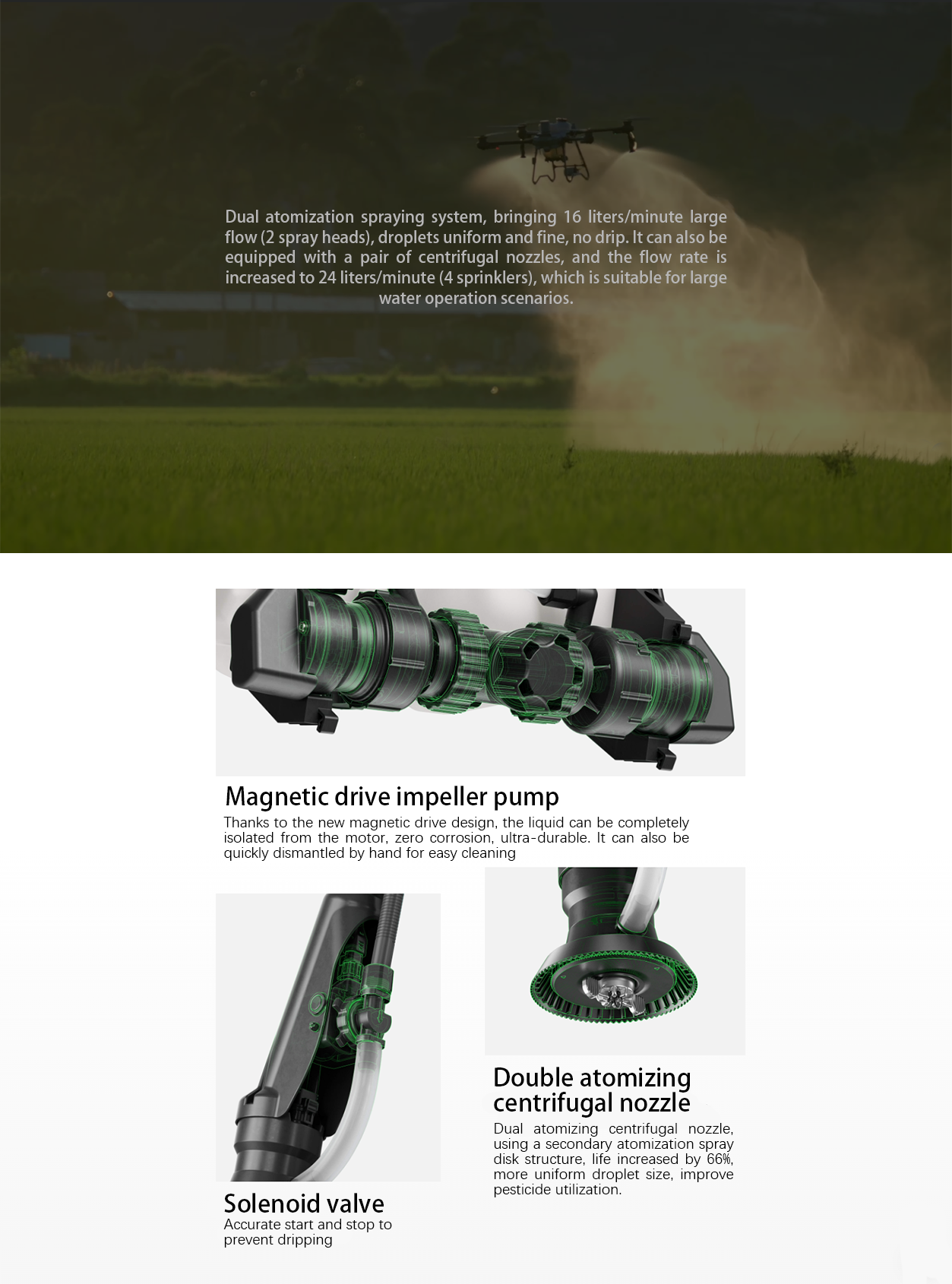

1.Spraying System: The T60 is equipped with a 50-liter large-capacity water tank and adopts advanced dual-atomization centrifugal nozzles. The spray disc channel design has been optimized to precisely control droplet size within the range of 50-500 micrometers. Additionally, the upgraded magnetic drive impeller pump allows the dual nozzles to deliver a flow rate of 18 liters per minute, significantly improving efficiency and effectiveness in dry field operations that require large amounts of water. The orchard kit is equipped with a 60-liter large-capacity water tank and adopts a newly designed pressure centrifugal nozzle, providing a nozzle flow rate of up to 28 liters per minute.

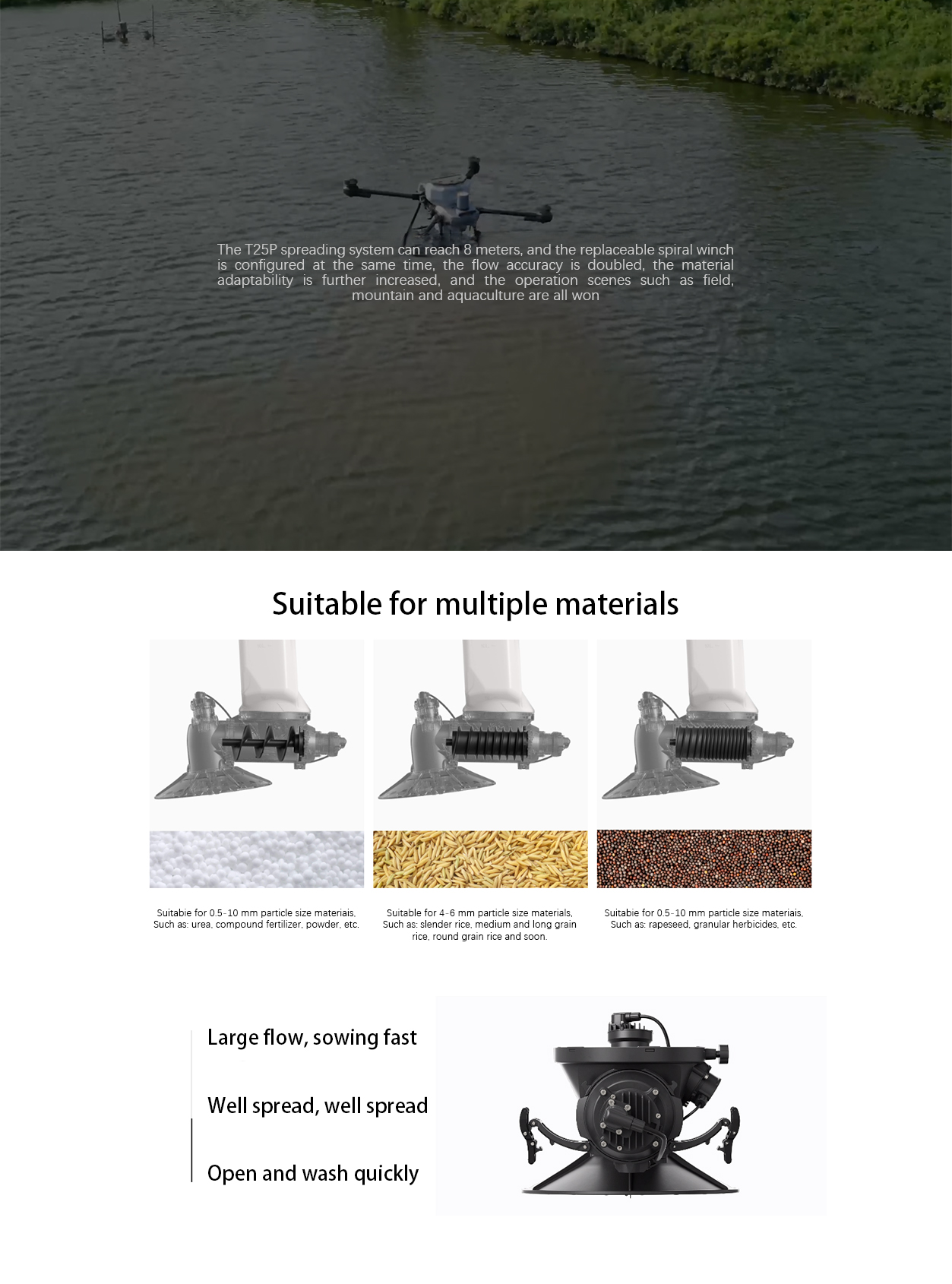

2.Seeding System: The T60 seeding system boasts a powerful payload capacity of 60 kilograms and is equipped with an 80-liter seeding box with a spacious and enlarged loading port. The system also features a high-flow seeding capacity of 190 kilograms per minute, a flying speed of 13.8 meters per second, and a seeding width of 8 meters, significantly improving the operational efficiency per flight. Furthermore, the loading, filling, and seeding processes have been carefully optimized for rapid and efficient operation.

III. Safety System

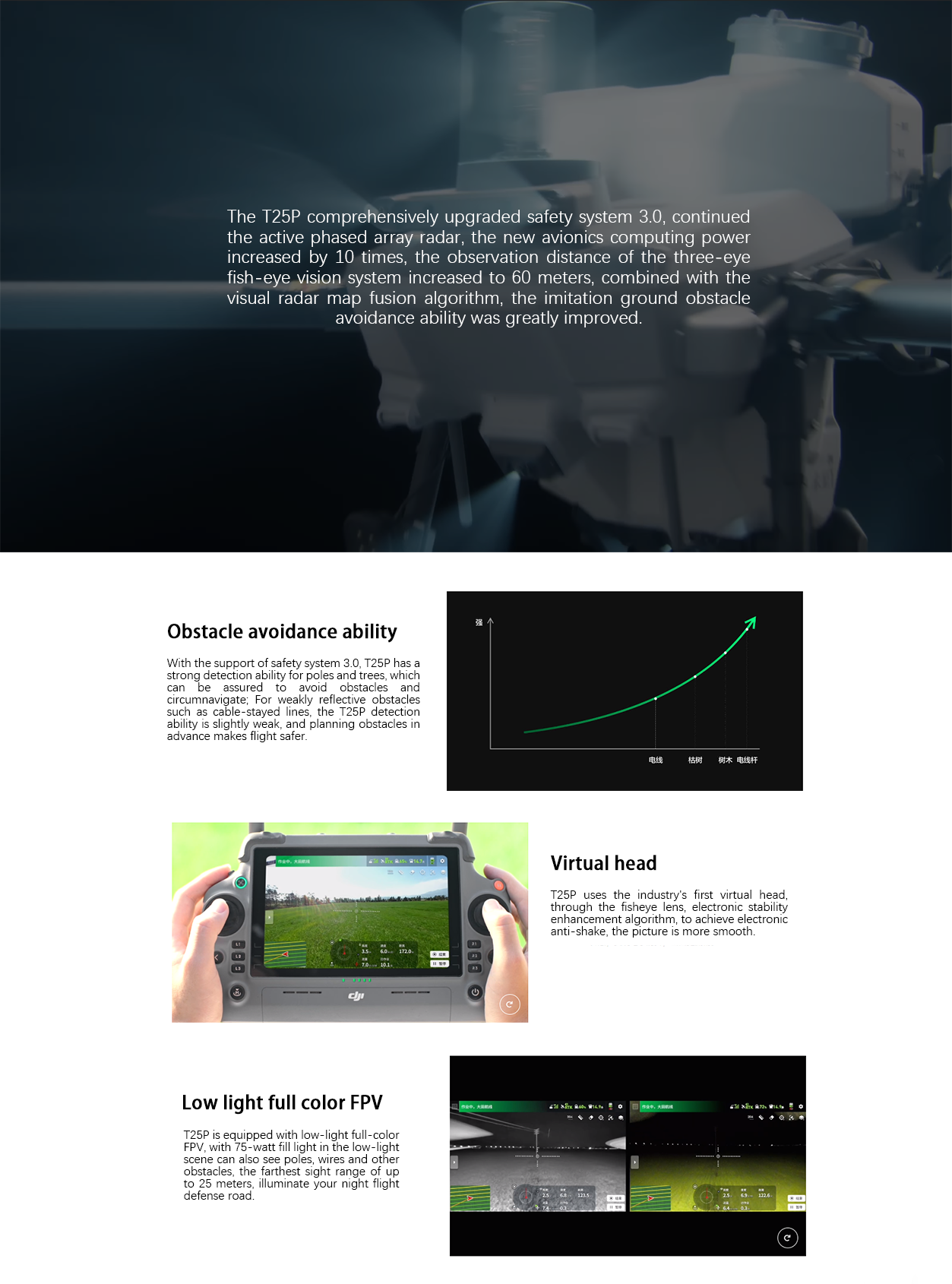

1.The T60 adopts the newly upgraded Agricultural Safety System 3.0, which continues to use active phased array radar. The new aviation computer's computing power has been increased tenfold, and the three-lens fisheye vision system's observation distance has been increased to 60 meters. Combined with the vision-radar mapping fusion algorithm, the terrain-following obstacle avoidance capability has been significantly improved.

2.The drone is also equipped with innovative virtual gimbal technology, which utilizes fisheye lenses and electronic stabilization algorithms to achieve excellent electronic image stabilization, ensuring smooth and distortion-free footage.

IV. Control and Transmission Systems

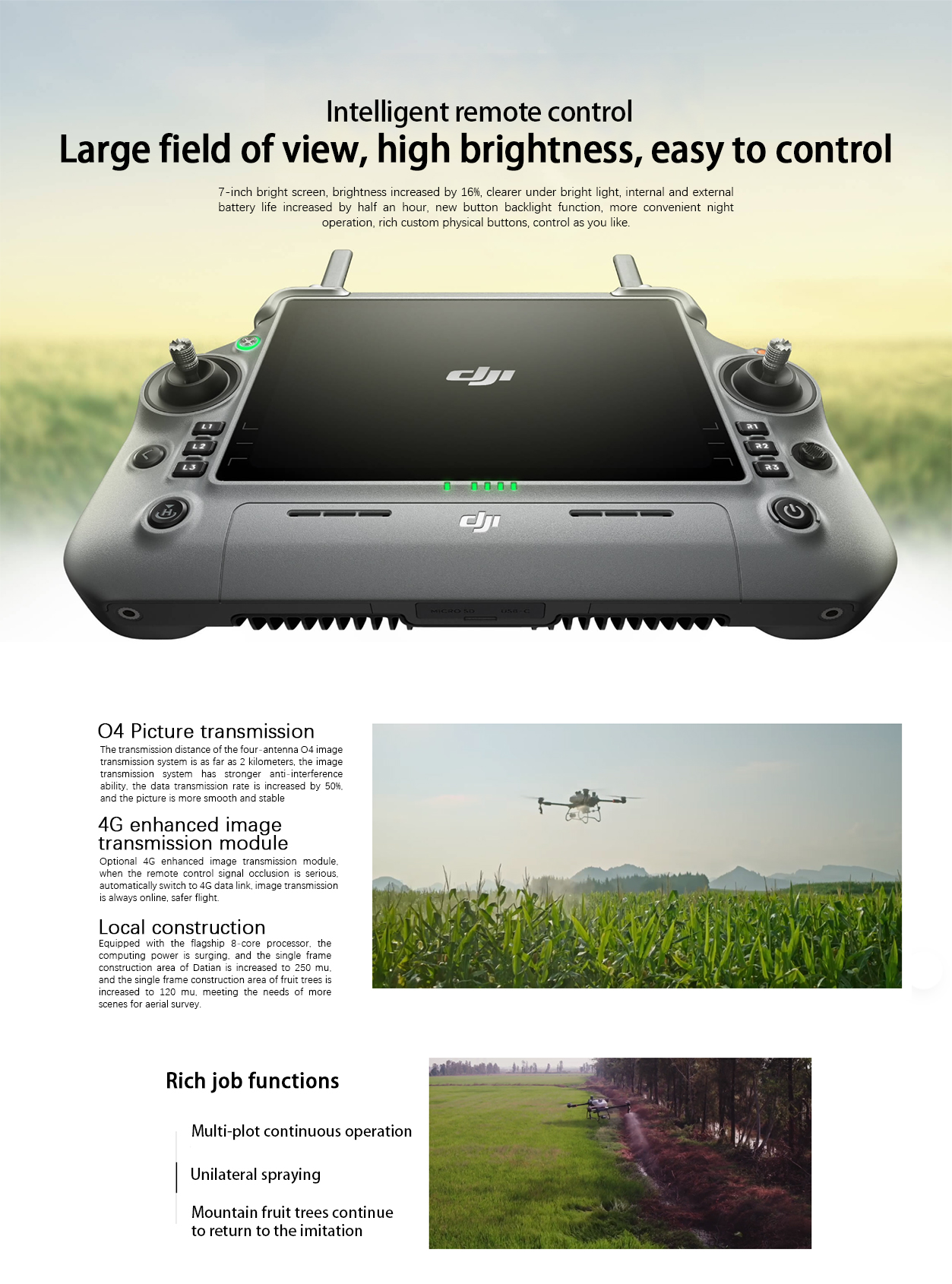

1.The T60 is equipped with a 7-inch high-brightness screen, with a 16% increase in brightness to ensure clear visibility in strong light conditions. Additionally, the internal battery life has been extended by half an hour, and an external battery provides an additional half-hour of endurance for long-lasting use.

2.The drone is also equipped with a four-antenna O4 transmission system, offering a transmission distance of up to 2 kilometers, excellent anti-interference capabilities, and a 50% increase in data transmission rate, ensuring smooth and stable footage. An optional 4G enhanced transmission module automatically switches when signals are obstructed, maintaining real-time online transmission.

V. Intelligence and Convenience

1.The T60 supports multiple operational functions such as continuous operation across multiple fields and single-side spraying, catering to various scenarios.

2.Orchard Mode 4.0 supports three-dimensional route seeding, making it easy to complete seeding operations in orchards, forests, terraced fields, and other scenarios.

3.The drone also features automatic calibration, real-time weighing, and other functions. Operation templates can be saved in the cloud, facilitating subsequent operations and management for users.

VI. Price and Cost-Effectiveness

1.As a professional-grade agricultural drone, the T60 has a relatively high price. However, considering its excellent performance, powerful functions, and wide range of application scenarios, its cost-effectiveness remains very high.

In summary, the DJI T60 drone is a professional-grade agricultural UAV with exceptional performance, powerful functions, and reliability. It is suitable for various operational scenarios and can significantly improve the efficiency and effectiveness of agricultural production. Although its price is relatively high, considering its outstanding cost-effectiveness and broad application prospects, it remains an excellent product in the agricultural sector.

The DJI T60 drone boasts an impressive and powerful set of specifications. Below is a summary of its main parameters based on information from DJI's official website and public sources:

I. Basic Performance Parameters

●Empty Weight: 46kg (excluding battery)

●Battery Weight: Approximately 16kg

●Maximum Takeoff Weight for Spraying: 112kg (with a payload of 50kg)

●Maximum Takeoff Weight for Seeding: 125kg (with a payload of 63kg)

●Motor Model: 14028

●Motor Power: 5kW

●Propeller Model: 56-inch nylon-carbon fiber propeller

●Battery Capacity: Approximately 2kWh (40000mAh)

●Maximum Flying Speed: 13.8m/s

●Maximum Wind Resistance Speed: 6m/s

●Maximum Takeoff Altitude: 4500m

●Hovering Time: 7 minutes (at 112kg takeoff weight)

●Maximum Flight Time: 8.4 minutes (at 112kg takeoff weight)

II. Spraying and Seeding System

●Spraying System

oStandard Water Tank Capacity: 50L

oMaximum Spraying Flow Rate: 18L/minute (2 nozzles), 28L/minute (4 nozzles, requires optional fruit tree kit)

oParticle Size Range: 50-500 micrometers

oNozzle Model: LX07550SX/LX08550SX (optional)

oNumber of Nozzles: 2 standard

oEffective Spray Width Range: 4-11m (at a relative operating height of 3m)

●Seeding System

oSeeding Operation Box Capacity: 80L

oMaximum Seeding Flow Rate: 190kg/minute (for compound fertilizer)

oSeeder Structure: Centrifugal disc

oDischarge Device Structure: Auger feed

oMaximum Seeding Width: 8 meters

oMaximum Load Inside Seeding Operation Box: 60kg

III. Safety System

●Safety System Version: 3.0

●Radar System: 2 sets of active phased array radars

●Vision System: Triple fish-eye vision system with an observation distance increased to 60 meters

●Obstacle Avoidance Capability: Significantly improved terrain-following obstacle avoidance through the integration of vision and radar mapping algorithms

●Other Safety Features: Automatic aerial survey, one-click operation, intelligent obstacle avoidance, etc.

IV. Control and Transmission System

●Control Platform: Supports data interoperability among DJI Terra, DJI Agriculture Platform, and smart remote control

●Transmission System: Four-antenna O4 transmission system with a transmission distance of up to 2 kilometers, stronger anti-interference capabilities, and a 50% increase in data transmission rate

●Transmission Enhancement Function: Optional 4G enhanced transmission module that automatically switches to a 4G data link when the remote control signal is severely obstructed

●Display System: 7-inch high-brightness screen with a 16% increase in brightness, clearer in strong light

●Battery Endurance: Both internal and external batteries have a 30-minute increase in endurance

V. Other Parameters

●Hovering Accuracy

oWith RTK Positioning: Horizontal 1cm + 1ppm, Vertical 1.5cm + 1ppm

oWithout RTK Positioning: Horizontal ±60cm, Vertical ±30cm

●Wheelbase: 2270mm

●Propeller Material and Diameter: Nylon-carbon fiber, 56 inches

●Number of Rotors: 4

●Operating Environment: 0℃-40℃

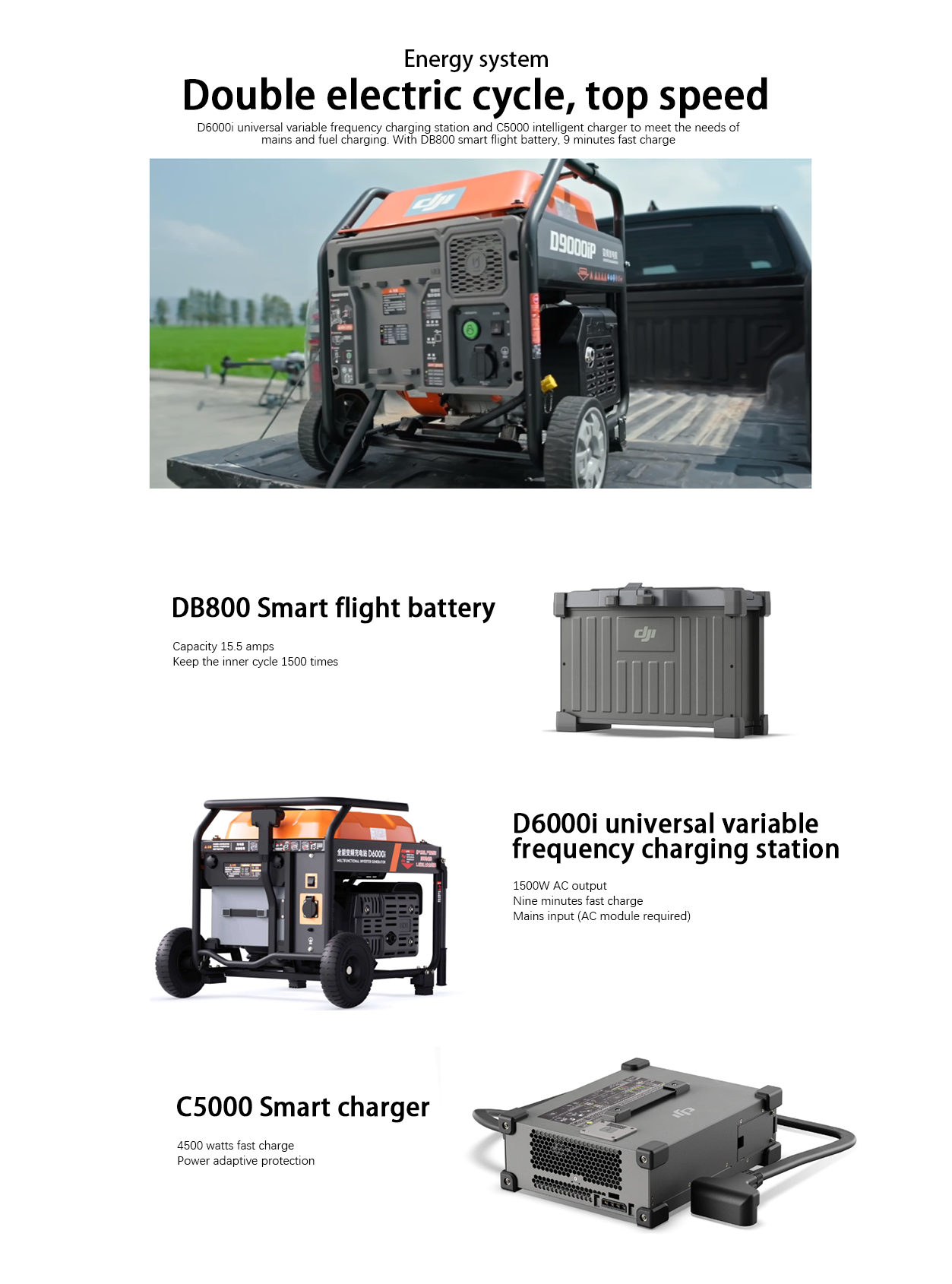

●Charger: All-in-one variable frequency charging station, charges one battery in 11-12 minutes (DB2100 smart flight battery, 15%-95% charge)

In summary, the DJI T60 drone excels in its parameter configuration, featuring powerful spraying and seeding capabilities, an advanced safety system, an efficient control and transmission system, and wide applicability. These characteristics give the DJI T60 drone significant advantages and application value in the field of agricultural pest control.
