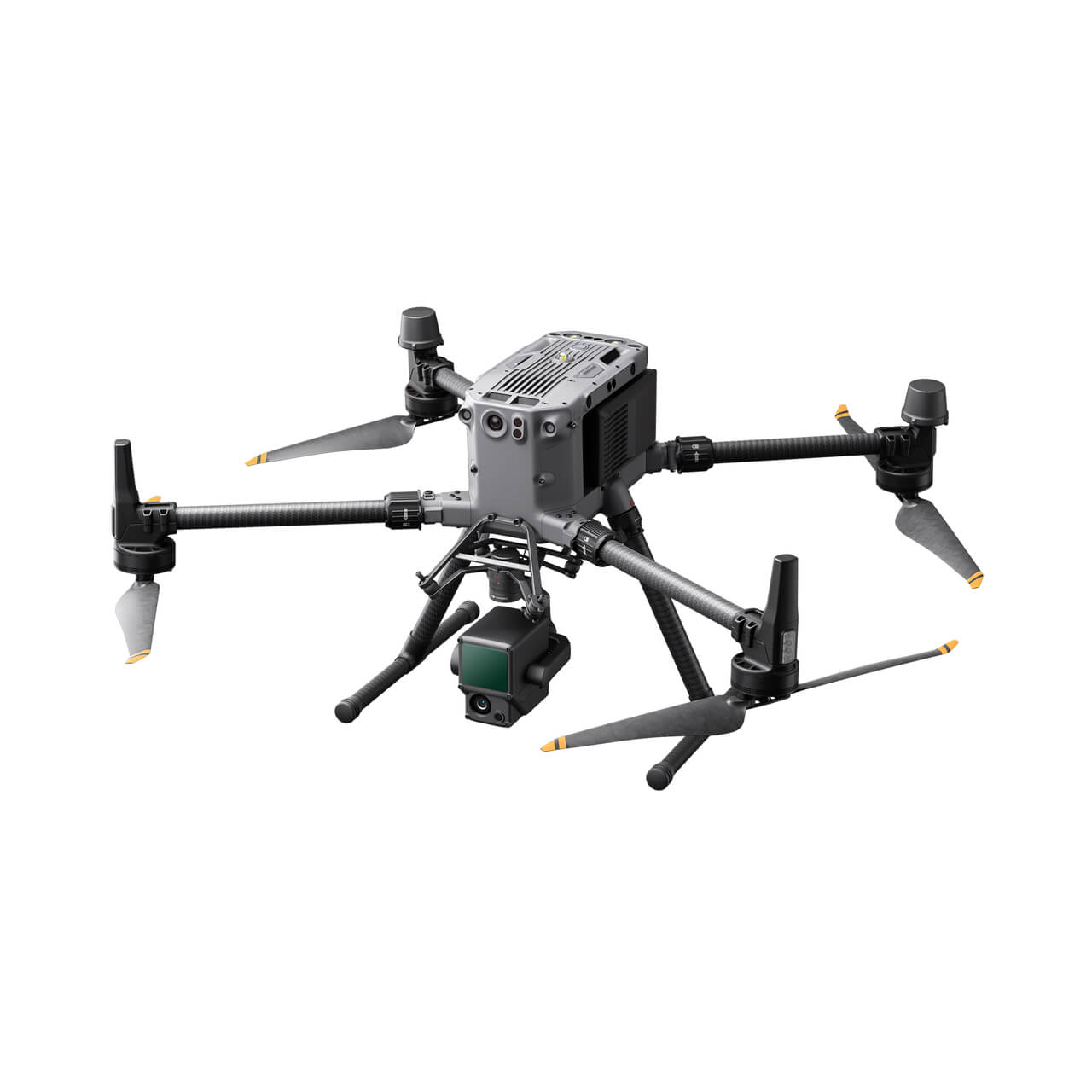

DJI Matrice 4E

DJI Matrice 4E is a professional-grade drone that excels in both hardware configuration and intelligent functions, making it a benchmark product in the fields of professional surveying, mapping, and inspection. The following is a detailed evaluation of the DJI Matrice 4E:

I. Excellent Hardware Configuration

●Camera System: The Matrice 4E is equipped with wide-angle, medium-telephoto, and telephoto cameras, as well as a laser ranging module, to meet the needs of various scenarios. Particularly noteworthy is its 112x hybrid zoom camera system, which can clearly identify license plates from a distance of 250 meters. This feature is especially useful for tasks such as power line inspections.

●Image Transmission System: It comes with the O4 industry-grade image transmission system, which combines an 8-antenna system and adaptive selection technology, along with a high-gain receiving antenna built into the remote control. This allows for a transmission distance of over 25 kilometers, ensuring stable and clear image transmission.

II. Powerful Intelligent Functions

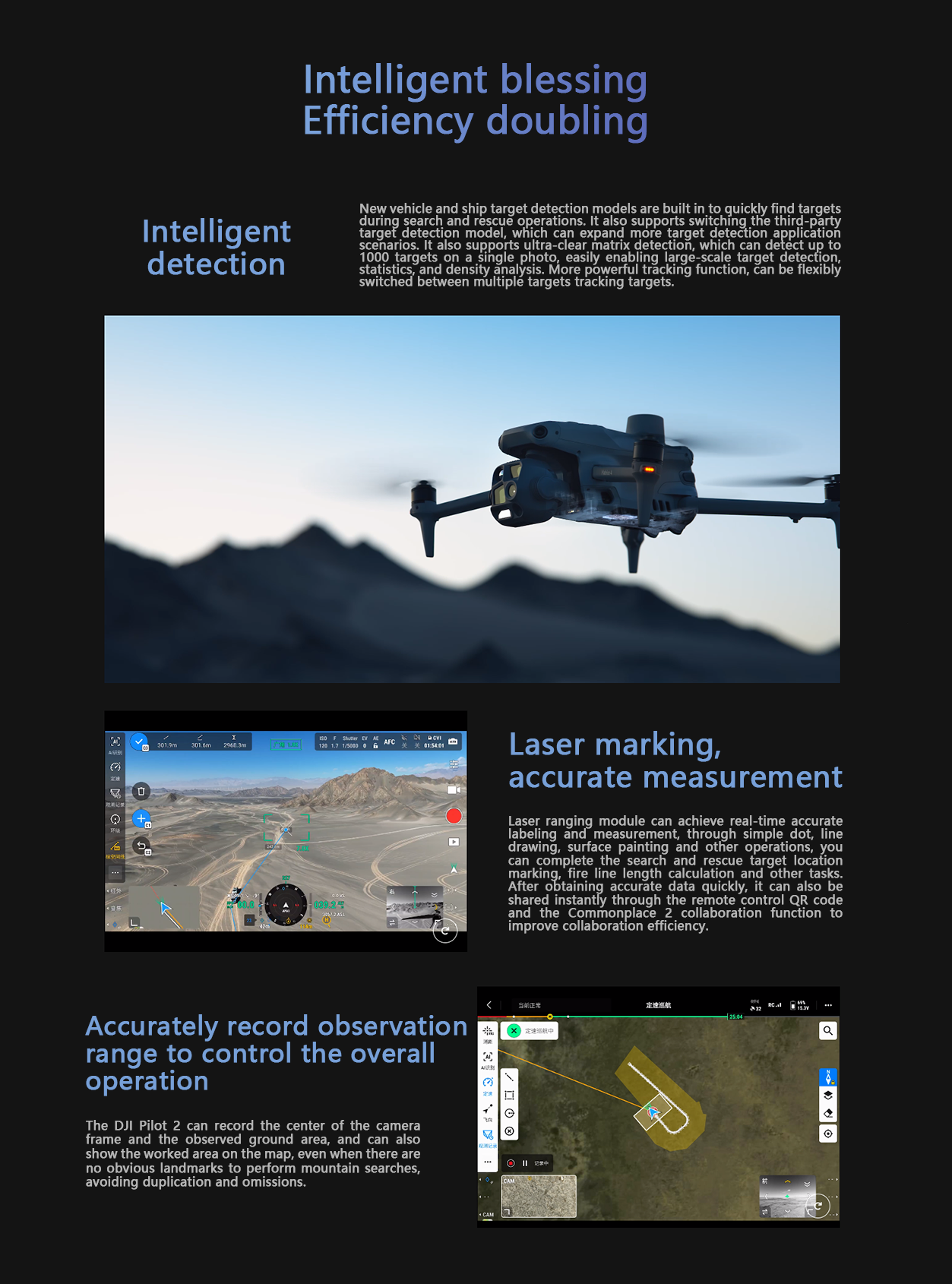

●AI Target Detection: The Matrice 4E has built-in models for detecting people, vehicles, and boats, and supports third-party model extensions. It also offers up to 10T of onboard computing power, supporting ultra-clear matrix detection. The image transmission screen can simultaneously detect up to 128 targets, and up to 1000 targets can be detected in photos. This function plays a crucial role in scenarios such as rescue and inspection.

●Autonomous Route Planning: Equipped with a high-precision positioning system, the Matrice 4E can autonomously plan routes and execute tasks, greatly reducing the operational burden on the pilot. When paired with the "GS2" remote management platform, it also enables real-time monitoring and cloud-based data management, improving work efficiency.

●Laser Annotation and Measurement: The laser ranging module enables real-time precise annotation and measurement. Simple operations such as pointing, drawing lines, and drawing shapes can be used to complete tasks such as marking search and rescue target locations and calculating the length of a wildfire's front line. This function represents a revolutionary change in the field of surveying and mapping.

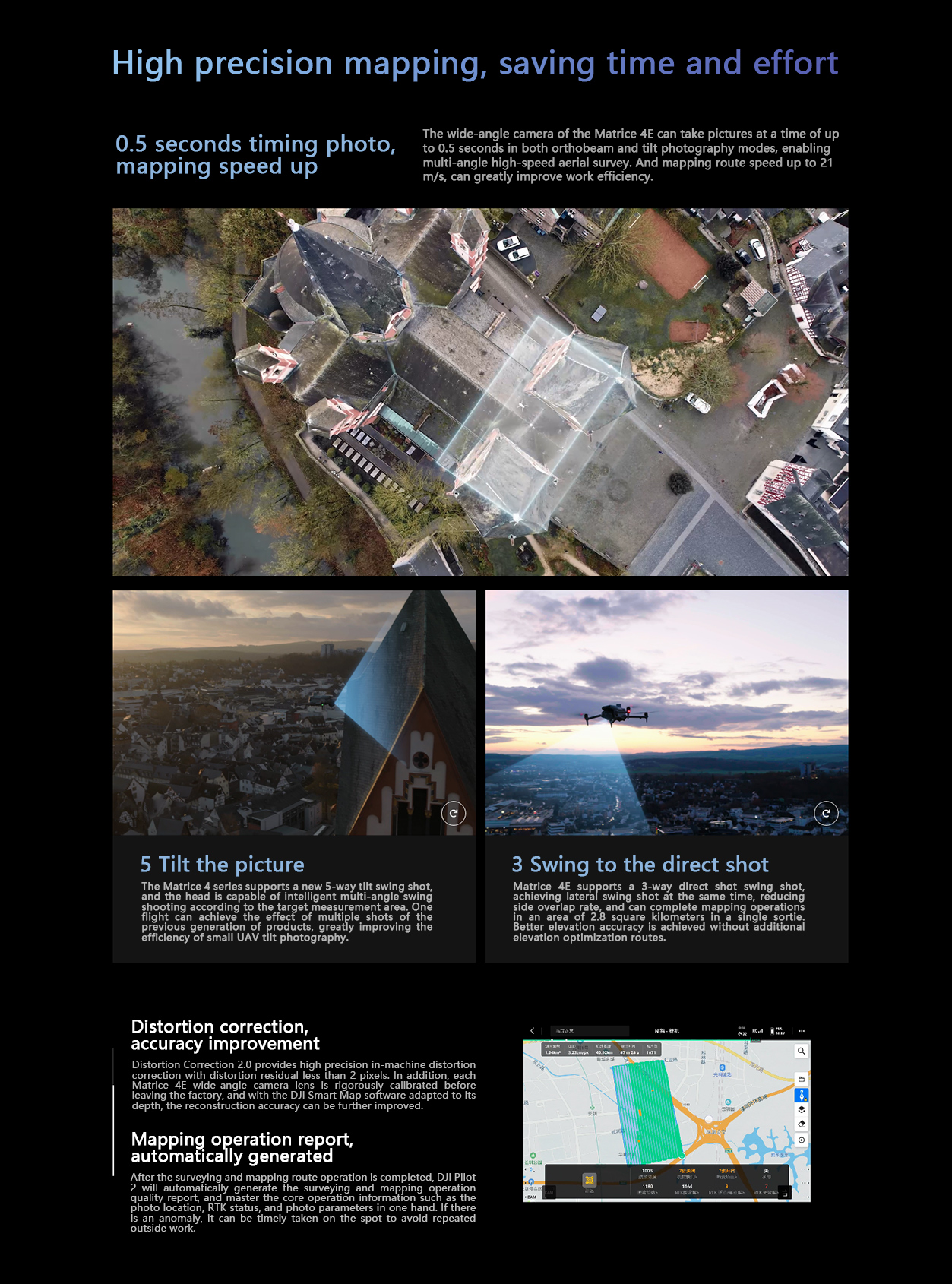

●Close-up Photography and Detailed Mapping: The Matrice 4E supports close-up photography and can create a rough model on the remote control side. Based on this rough model, it can quickly generate detailed mapping routes that closely follow the surface of the subject being photographed. It also supports displaying virtual space routes and waypoint photos for close-up photography, facilitating the assessment of flight safety and coverage areas for detailed routes.

III. Wide Range of Applications

The Matrice 4E is not only suitable for scenarios such as power line inspections and building inspections but also plays an important role in fields such as rescue and environmental monitoring. Its excellent hardware configuration and intelligent functions significantly improve work efficiency in these application scenarios.

IV. Price and Cost-effectiveness

The starting price of the Matrice 4E is 27,888 yuan. Although the price is relatively high, considering the efficiency improvements and safety guarantees it brings, it still offers high cost-effectiveness for professional users.

V. Potential for Improvement

Despite its excellent hardware configuration and intelligent functions, the Matrice 4E still has some room for improvement. For example, in some complex professional scenarios, operators still need to possess certain professional knowledge and skills. For long-term continuous operation scenarios, frequent battery changes may be required to maintain operational efficiency.

In summary, the DJI Matrice 4E is a standout professional-grade drone, excelling in hardware configuration, intelligent functions, and application scenarios. Although its price is relatively high and there is some room for improvement, it generally offers high cost-effectiveness and market competitiveness.

DJI Matrice 4E is a professional-grade quadcopter with detailed specifications as follows:

I. Aircraft Parameters

●Payload Capacity: 200g

●Hovering Accuracy

oVertical: ±0.1m when visual positioning is active; ±0.5m when GNSS is active; ±0.1m when RTK is active

oHorizontal: ±0.3m when visual positioning is active; ±0.5m when GNSS is active; ±0.1mm when RTK is active

●Ascent and Descent Speed

oMaximum Ascent Speed: 10m/s (6m/s with accessories)

oMaximum Descent Speed: 8m/s (6m/s with accessories)

●Flight Speed

oForward: 21m/s

oSideways: 18m/s

oBackward: 19m/s (Sport Mode)

●Flight Altitude

oMaximum Takeoff Altitude: 6000m

oMaximum Operating Altitude with Accessories: 4000m

●Flight Time

oWith Standard Propellers: 49 minutes

oWith Silent Propellers: 46 minutes

●Wheelbase: 438.8mm

●Propellers

oPropeller Size: 10.8 inches

oPropeller Model: 1157F (Standard), 1154F (Silent)

●Wind Resistance: 12m/s

II. Gimbal Parameters

●Gimbal Type: 3-axis mechanical gimbal (pitch, roll, yaw)

●Angular Control Precision

oMechanical Limit: Pitch: -140° to 50°; Roll: -52° to 52°; Yaw: -65° to 65°

oSoft Limit: Pitch: -90° to 35°; Roll: -47° to 47°; Yaw: -60° to 60°

●Controllable Rotation Range: Pitch: -90° to 35° (yaw not controllable)

●Control Speed: 100°/s

III. Camera Parameters

●Wide-angle Camera

oSensor: 4/3-inch CMOS

oEffective Pixels: 20 million

oEquivalent Focal Length: 24mm

oAperture: f/2.8 to f/11

oField of View: 84°

oFocus Range: 1m to infinity

oShutter Speed: Electronic shutter 2s to 1/8000s; Mechanical shutter 2s to 1/2000s

oPhoto Resolution: 5280×3956

oVideo Resolution: 4K (3840×2160@30fps), FHD (1920×1080@30fps)

●Medium Telephoto Camera

oSensor: 1/1.3-inch CMOS

oEffective Pixels: 48 million

oEquivalent Focal Length: 70mm

oAperture: f/2.8

oField of View: 35°

oFocus Range: 3m to infinity

oShutter Speed: 2s to 1/8000s

oPhoto Resolution: 8064×6048

●Telephoto Camera

oSensor: 1/1.5-inch CMOS

oEffective Pixels: 48 million

oEquivalent Focal Length: 168mm

oAperture: f/2.8

oField of View: 15°

oFocus Range: 3m to infinity

oShutter Speed: 2s to 1/8000s

oPhoto Resolution: 8192×6144

●ISO Range

oNormal Mode: ISO 100 to ISO 25600

oNight Mode: Wide-angle ISO 100 to ISO 204800; Medium Telephoto ISO 100 to ISO 409600; Telephoto ISO 100 to ISO 409600

●File Format

oImage Format: Wide-angle JPEG/DNG (RAW); Medium Telephoto JPEG; Telephoto JPEG

oVideo Format: MP4 (MPEG-4 AVC/H.264)

●Storage Card Type: microSD, U3/Class10/V30 or higher

IV. Power Performance

●Charger: 100W Charger

●Battery: 6741mAh Lithium Battery

●Power Consumption: 100W

V. Other Parameters

●Transmission System

oTransmission Solution: O4 Industry Edition

oReal-time Transmission Quality: Remote Controller 1080p/30fps

oOperating Frequency Bands: 2.400GHz to 2.4835GHz, 5.725GHz to 5.850GHz, 5.150GHz to 5.250GHz

oTransmit Power: 2.4GHz: <33dBm (FCC), <20dBm (CE/SRRC/MIC); 5.8GHz: <33dBm (FCC), <30dBm (SRRC), <14dBm (CE); 5.15-5.25GHz: <23dBm (FCC/CE)

oMaximum Signal Effective Distance (unobstructed, no interference): FCC: 25km; CE: 12km; SRRC: 12km; MIC: 12km

oMaximum Download Rate: 20MB/s

oLatency (varies with shooting environment and mobile device): 130ms

oAntennas: 8 antennas, 2 transmit and 4 receive

●Sensing System

oType: Omnidirectional binocular vision system, supplemented by a 3D infrared sensor on the bottom of the fuselage

oFront View: Binocular ranging range 0.4m to 22.5m; detectable range 0.4m to 200m; effective obstacle avoidance speed ≤21m/s; field of view (FOV) horizontal 90°, vertical 135°

oRear View: Ranging range 0.4m to 22.5m; detectable range 0.4m to 200m; effective obstacle avoidance speed ≤21m/s; field of view (FOV) horizontal 90°, vertical 135°

oSide View: Ranging range 0.5m to 32m; detectable range 0.5m to 200m; effective obstacle avoidance speed ≤21m/s; field of view (FOV) horizontal 90°, vertical 90°

oDownward View: Ranging range 0.3m to 18.8m; effective obstacle avoidance speed ≤10m/s; field of view (FOV) front and rear 160°, left and right 160°

●Battery Charging Hub

oInput: USB-C: 5V to 20V, up to 5A

oOutput: Battery interface 11.2V to 17V

oRated Power: 100W

oCharging Method: 4-battery round-robin charging, supports standard mode (100% SOC) and standby mode (90% SOC)

oCompatible Batteries: Matrice 4E/T Smart Flight Batteries

oCharging Temperature Range: 5°C to 40°C

●Product Dimensions

oFolded: 260.6×13.7×138.4mm (L×W×H)

oUnfolded: 307×387.5×149.5mm (L×W×H)

●Product Weight

oWith Standard Propellers: 1219g

oWith Silent Propellers: 1229g

In summary, the DJI Matrice 4E boasts powerful imaging capabilities and professional flight performance, making it suitable for high-precision professional surveying and mapping, detailed surface inspection, and other scenarios.
