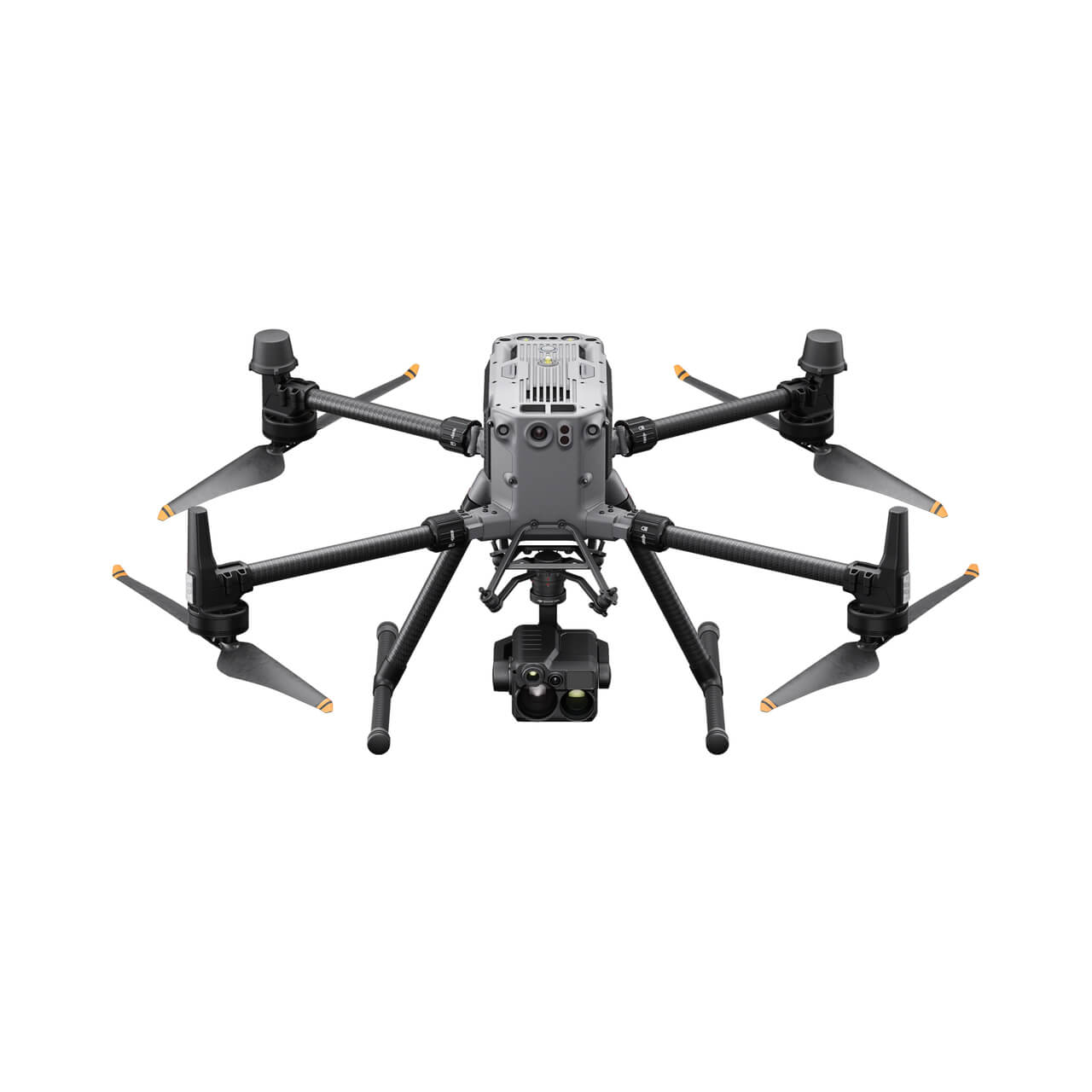

DJI Matrice 350 RTK
DJI Matrice 350 RTK is an industry-leading flagship drone released by DJI. evaluation Below of is its a performance detailed:
I. Overall Evaluation
The Mat standsrice 350 RTK out in the field of aerial operations with its exceptional performance, powerful payload capacity, and precise positioning system. It is suitable for various industry applications, including aerial photography, logistics delivery, crop protection, surveying and mapping, and emergency rescue.
II. Performance Characteristics
1.Flight Performance:
1.Supports up to 55 minutes of flight time, with battery cycle charging up to 400 times, effectively ensuring operational efficiency.
2.The maximum flight altitude can reach 5000 meters (when using specific propellers), with excellent wind resistance, capable of withstanding winds up to 12 meters per second (force 7 winds).
2.Transmission System:
1.Equipped with the O3 Enterprise Transmission system, supporting three-channel 1080p high-definition transmission with a range of up to 20 kilometers.
2.Can collaborate with 4G networks to cope with signal obstructions in complex environments such as urban buildings, ensuring stable transmission.
3.Control Experience:

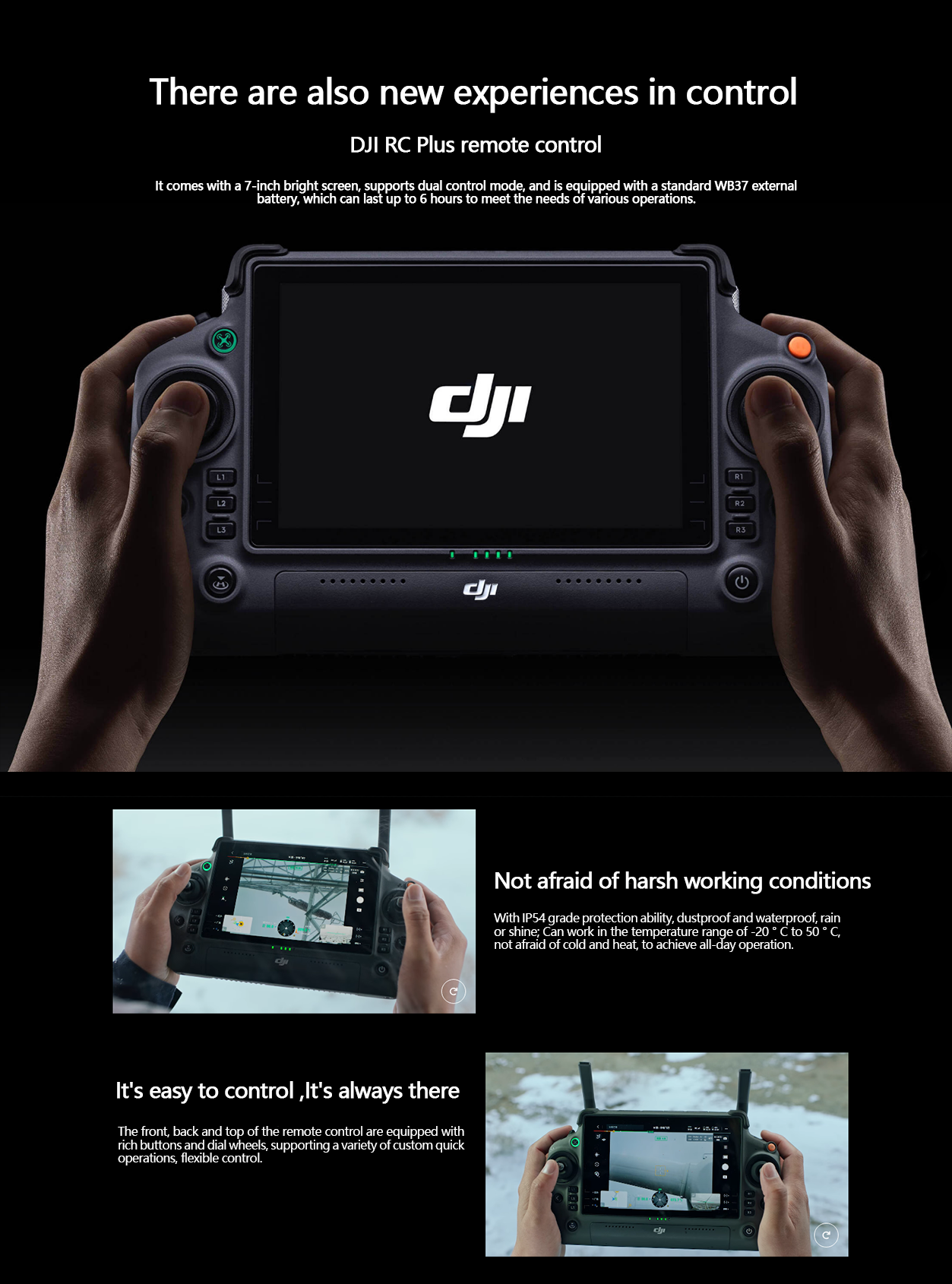

1.Comes with the DJI RC Plus remote controller, featuring a 7-inch screen, supporting dual-control mode, and with a maximum battery life of 6 hours.
2.The remote controller is equipped with a rich set of buttons and dials, supporting various customizable shortcut operations for flexible and effortless control.
4.Safety Protection:
1.Possesses IP55-level protection capability (IP54 when folded), enabling stable operation in harsh environments.
2.Equipped with a six-directional binocular vision system and infrared sensing system, providing six-directional environmental awareness, positioning, and obstacle avoidance capabilities.
3.The onboard flight camera has night vision capabilities, clearly presenting nighttime environments and obstacles, combined with waypoint positioning functionality, to further guide safe flight.
5.Payload Capacity:
1.Supports various gimbal installation options, including bottom single gimbal, bottom dual gimbal, and top single gimbal.
2.Features an E-Port open interface with a maximum payload capacity of 2.7 kilograms, fully meeting the needs of different industries.
III. Industry Applications
●Aerial Photography: Capable of carrying high-resolution cameras to capture stunning aerial photos and videos.
●Logistics Delivery: Can carry various cargoes, delivering items quickly and safely to their destinations.
●Crop Protection: High-resolution cameras and sensors can precisely monitor farmland conditions, formulating scientific pest control plans.
●Surveying and Mapping: The high-precision RTK navigation system achieves centimeter-level positioning accuracy, providing precise data support for land surveying, construction site surveying, etc.
●Emergency Rescue: Can quickly reach the scene, providing real-time and accurate on-site information to rescue personnel.
IV. Price and Purchasing Suggestions
The price of the Matrice 350 RTK varies depending on the package version, with the Worry-Free Basic package priced at 72,428 yuan and the Worry-Free Flagship package priced at 77,612 yuan. Additionally, users need to purchase payload cameras such as the Zenmuse P1 or Zenmuse H20, with prices ranging from tens of thousands of yuan. Therefore, when purchasing, it is recommended to choose the appropriate package version and payload camera based on actual needs.
In summary, the DJI Matrice 350 RTK is an outstanding and versatile industry-application drone that can meet the demands of various aerial operations.
Logistics information
Logistics information
The DJI Matrice 350 RTK boasts a comprehensive range of specifications. Below are its main parameters:
I. Basic Specifications
●Aircraft Dimensions
oUnfolded (excluding propellers): Length 810mm, Width 670mm, Height 430mm
oFolded (including propellers): Length 430mm, Width 420mm, Height 430mm
●Weight
oEmpty Weight (excluding batteries): Approximately 3.77kg
oEmpty Weight (including dual batteries): Approximately 6.47kg
oMaximum Payload for Single Gimbal Shock Absorber: 960g
oMaximum Takeoff Weight: 9.2kg
II. Flight Performance
●Power System: Symmetrical motor wheelbase of 895mm
●Maximum Pitch Angle: 30° (25° when using N mode and the forward vision system is enabled)
●Maximum Ascend Speed: 6m/s
●Maximum Descend Speed (vertical): 5m/s
●Maximum Tilt Descend Speed: 7m/s
●Maximum Horizontal Flight Speed: 23m/s
●Maximum Flying Altitude:
oUsing 2110s propellers, with a takeoff weight not exceeding 7.4kg: 5000m
oUsing 2112 high-altitude silent propellers, with a takeoff weight not exceeding 7.2kg: 7000m
●Maximum Withstandable Wind Speed: 12m/s (Force 7 wind)
●Maximum Flight Time: 55 minutes (measured in a windless environment and under no-load conditions, flying forward at approximately 8m/s until the battery is depleted)
III. Positioning and Navigation
●Operating Frequency: 2.4000 GHz to 2.4835 GHz, 5.150 GHz to 5.250 GHz (CE: 5.170 GHz to 5.250 GHz)
●RTK Positioning Accuracy: When RTK FIX is active, horizontal 1cm + 1ppm, vertical 1.5cm + 1ppm
●Hovering Accuracy (in windless or light wind conditions)
oVertical: ±0.1m (when visual positioning is functioning normally), ±0.5m (when GNSS is functioning normally), ±0.1m (when RTK positioning is functioning normally)
oHorizontal: ±0.3m (when visual positioning is functioning normally), ±1.5m (when GNSS is functioning normally), ±0.1m (when RTK positioning is functioning normally)
●GNSS: GPS + GLONASS + BeiDou + Galileo
IV. Remote Control and Communication
●Remote Controller: Supports DJI RC Plus (firmware upgrade required)
●Video Transmission: Utilizes DJI O3 Enterprise transmission, supports three-channel 1080p HD real-time video transmission, with a maximum transmission distance of 20km
●Operating Environment Temperature: -20°C to 50°C
V. Payload and Expansion
●Gimbal Camera: Compatible with DJI gimbals Zenmuse H30, Zenmuse H30T, Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse L2, Zenmuse L1, Zenmuse P1. Third-party payloads are only supported if they are certified and developed based on the DJI Payload SDK.
●Gimbal Mounting Options: Lower single gimbal, upper single gimbal, lower dual gimbals, lower single gimbal + upper single gimbal
●Maximum Effective Payload Capacity: 2.7kg
VI. Battery and Charging
●Battery Type: TB65 Smart Flight Battery
●Charging Time:
oUsing a 220V power supply, it takes approximately 60 minutes to fully charge two TB65 Smart Flight Batteries, and approximately 30 minutes to charge from 20% to 90%
oUsing an 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Smart Flight Batteries, and approximately 40 minutes to charge from 20% to 90%
●Battery Lifespan: Up to 400 battery cycles
●Battery Operating Temperature: -20°C to 50°C
VII. Safety Features
●IP Protection Rating: IP55 (The protection rating is not permanent and may decrease over time due to wear and tear)
●Night Vision FPV Camera: Equipped with night vision capabilities to clearly display the environment and obstacles during flight
●Six-Direction Sensing and Positioning: Features a six-direction binocular vision system and infrared sensing system for six-direction awareness, positioning, and obstacle perception, providing comprehensive flight protection
●CSM Radar: With CSM radar installed, the Matrice 350 RTK can detect small obstacles up to 30 meters away in the upward direction or within a 360° horizontal range and avoid them in a timely manner
VIII. Other Features

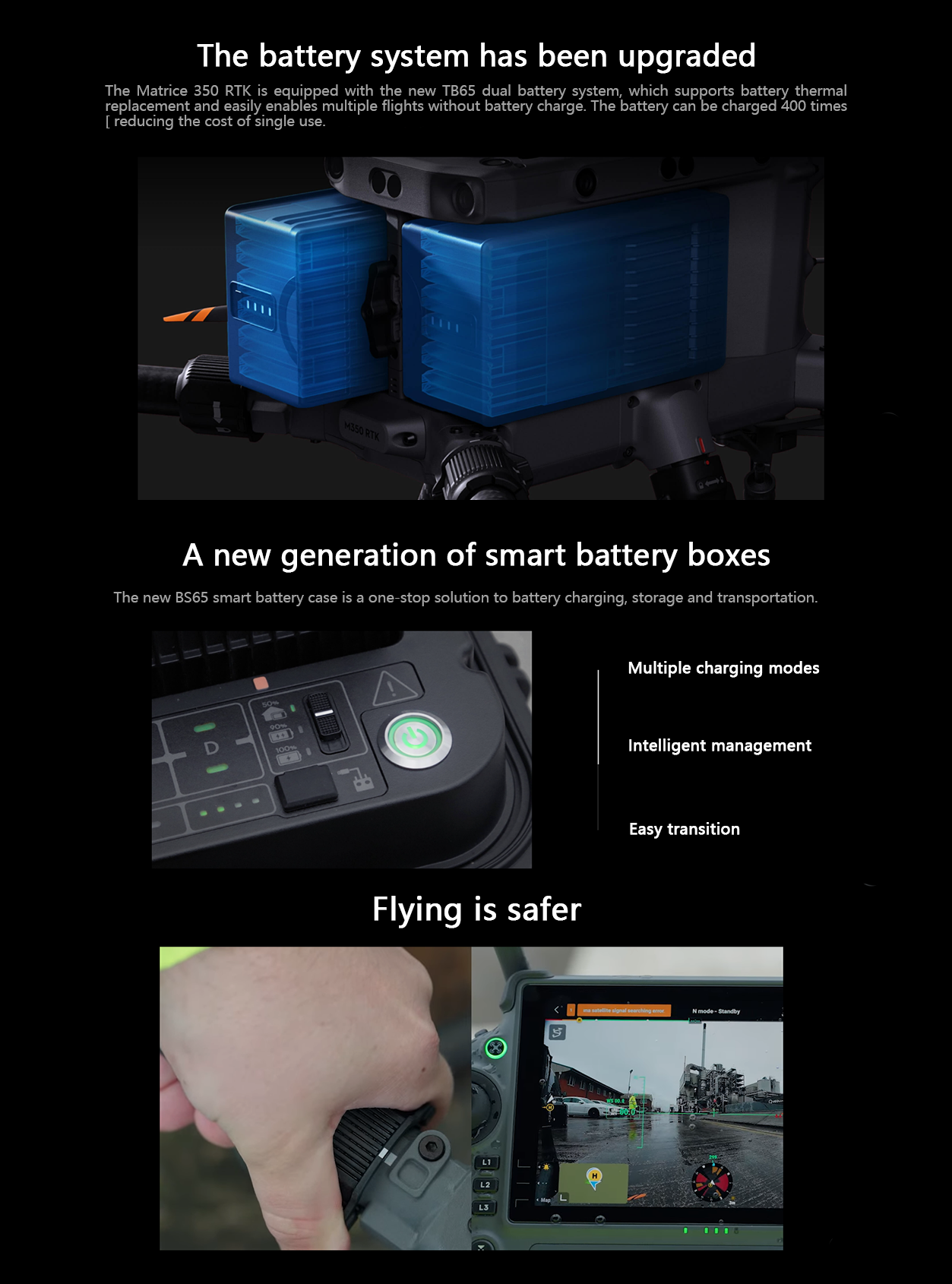

●Battery Hot-Swapping: Supports battery hot-swapping for multiple flights without the need to shut down
●Smart Battery Station: The new BS65 Smart Battery Station provides a one-stop solution for battery charging, storage, and transportation
●Data Security: Offers media data encryption, local data mode, one-click clearing of all device data, and AES-256 video transmission encryption
In summary, the DJI Matrice 350 RTK is a high-performance, versatile drone platform suitable for various complex environments and mission requirements.
